Portable DC 48V High Frequency Online UPS 2Kva 1.6Kw For Office

Portable DC 48V High Frequency Online UPS 2Kva 1.6Kw For Office
Portable DC 48V High Frequency Online UPS 2Kva 1.6Kw For Office

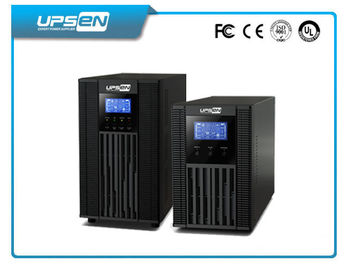

Large Image :  Portable DC 48V High Frequency Online UPS 2Kva 1.6Kw For Office

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Green Star Series 1-3Kva
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Cartons & Wooden Pallet
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Detailed Product Description
Type: Offline Output Power Factor: 0.8
Phase: Single Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: Digital LCD Display H.S. Code: 8504402000
High Light:

online ups suppliers

,

industrial ups systems

Portable DC 48V High Frequency Online UPS 2Kva 1.6Kw For Office





Key Features



• Sinusoidal output waveform

• Ture Online and Double Conversion tech
• 1000Va UPS Inbuilt 4pcs of Sealed Lead Acid Batteries 12V 9Ah

• Wide input voltage (110 V – 300 V)

• Input power factor correction
• Output power factor 0.8
• Converter mode available
• ECO mode for energy saving
• Microprocessor control optimizes reliability
• Generator compatible
• Charger capacity expansion to 6A for long-run models
• Smart SNMP works well with either USB or RS-232 together
• Comprehensive display allows easy monitoring and access of UPS status



48VDC UPS Application:

Home, Office, Computers, PCs, CCTV , Traffic, Bank System,  ATMTax Office, School, Servers, Data Rooms,

Communications etc



Technical Specification



GREEN STAR ONLINE UPS SELECTION GUIDE
MODEL G1K (L) G2K (L) G3K (L)
PHASE Single phase with ground
CAPACITY 1000 VA / 800 W 2000 VA / 1600 W 3000 VA / 2400 W
INPUT
Nominal Voltage 100/110/115/120/127VAC or 200/208/220/230/240VAC
Input Voltage Range  55-145 VAC or 110-300 VAC
Frequency Range   40Hz  ~ 70 Hz
Power Factor ≧ 0.99 @ Nominal Voltage (100% load)
OUTPUT
Output Voltage 100/110/115/120/127VAC or 200/208/220/230/240VAC
Voltage Regulation  ± 1%
Frequency Range (Synchronized Range) 47~ 53 Hz or 57 ~ 63 Hz
Frequency Range (Batt. Mode) 50 Hz or 60Hz ± 0.1 Hz
Current Crest Ratio 3:1
Harmonic Distortion ≦ 3 % THD (Linear Load); ≦ 6 % THD (Non-linear Load)
Transfer Time AC to DC Zero
Inverter to Bypass 4 ms (Typical)
Waveform (Batt. Mode) Pure Sinewave
EFFICIENCY
To AC Mode 88% 89% 90%
To Battery Mode 83% 87% 88%
BATTERY
Standard Model Battery Type 12 V / 9 AH 12 V / 7AH 12 V / 7 AH
Numbers 2 6 6
Typical Recharge Time 4 hours recover to 90% capacity
Charging Current (max.) 1.0 A
Charging Voltage 27.4VDC ± 1% 82.1 VDC ±1% 82.1 VDC ±1%
Long-run Model* Battery Type Depending on the capacity of external batteries
Numbers 3 6 8
Charging Current (max.) 1.0A/2.0A/4.0A/6.0 A
Charging Voltage 41.0VDC ± 1% 82.1 VDC ±1% 109.4VDC ±1%
INDICATORS
LCD

Load level, Battery level, AC mode,

Battery mode, Bypass mode, and Fault indicators

ALARM
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
Fault Continously sounding
PHYSICAL
Standard Model Dimension, D x W x H (mm) 397 X 145 X 220 419X190X318
Net Weight (kgs) 13 26 28
Long-run Model* Dimension, D x W x H (mm) 282 x 145 x 220 397 X 145 X 220
Net Weight (kgs) 4.6 6.8 7.4
ENVIRONMENT
Humidity 20-90 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 50dBA @ 1 Meter
MANAGEMENT
Smart RS-232/USB Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC
Optional SNMP Power management from SNMP manager and web browser



* Long-run model is only available in 200/208/220/230/240VAC systems.



Competitive Advantages:


1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products
