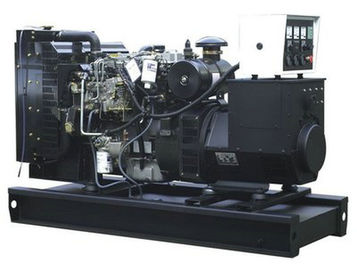

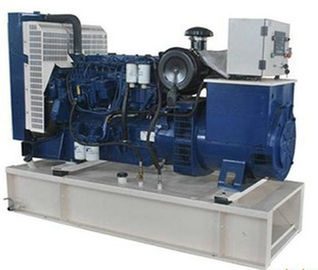

Three Phase 150KVA UK Perkins Electric Diesel Generator Generating with CE ISO

Three Phase 150KVA UK Perkins Electric Diesel Generator Generating with CE ISO
Three Phase 150KVA UK Perkins Electric Diesel Generator Generating with CE ISO Three Phase 150KVA UK Perkins Electric Diesel Generator Generating with CE ISO

Large Image :  Three Phase 150KVA UK Perkins Electric Diesel Generator Generating with CE ISO

Product Details:
Place of Origin: Jiangsu of China
Brand Name: POWER FRIEND
Certification: ISO,CE Certification
Model Number: PF-P150
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Plywood or Plastic packing
Delivery Time: 15 - 20 working day
Payment Terms: L/C, T/T
Supply Ability: 300 Set / Month
Detailed Product Description
Output Power: 120KW 150KVA Frequency: 50/60HZ
Voltage: 220v - 690v Optional Engine: Cummins, Perkins, Deutz, Iveco, Chinese Brand For Optional
Alternator: Stamford, Meccalte, Leroy Somer, Marathon, Wattek For Optional Controller: Deepsea, Smartgen, Harsen For Optional
MCCB: ABB Or Delixi Cooling System: Water Cooled
Genset Type: Open Type, Silent Type, Container Type, Trailer Type For Optional ATS: Optional
High Light:

perkins silent diesel generator

,

open type genset

Three Phase 150KVA UK Perkins Electric Diesel Generator Generating with CE ISO​



Technical data

Genset Model

PF-P150

 Prime Power

120KW/150KVA

Rated Voltage

400/230V

Frequency

50/60Hz

Power Factor

0.8(lagging)

The regulating rate of steady voltage

≤±0.5%

The regulating rate of instantaneous voltage

≤-15%/ +20%

The time of steady voltage

≤1.5sec

The waving rate of voltage

≤1.0%

The regulating rate of steady frequency

≤3%

The regulating rate of instantaneous frequency

≤±10%

The time of steady frequency

3sec

Dimension (L×W×H) (mm)

2650*760*1600

Genset weight (kg)

1450

Diesel Engine

Brand

 PERKINS

Model

1006A-TAG2

Number of Cylinders

6

Rotating Speed

1500RPM

Cycle

Four stroke

Type

waste gas turbine boost,direct spurting type

Bore×Stroke(mm)

100*127

Displacement(L)

6

Lubricating Capacity(L)

19

Speed Governor

Electrical

Cooling System

Water-cooled

Speed Stability (%)

≤5%

Fuel Consumption at 100% Load

208g/kw.h

Starting Method

DC24V Electrical starting

Alternator

Brand

Stamford

Model

HSJ274D

Number of Phase

3

Connecting Type

Three Phase and Four Lines

Number of Bearing

1

Grading Protection

IP23

Altitude

≤1000m

Exciter Type

Brushless (AVR automatic voltage regulating)

Insulation Class

H degree

The components of the genset

(1)  PERKINS Diesel Engine;        (2) Stamford Alternator;     (3) Control Panel

Control Panel

The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.





 Heavy duty world class brand  industrial diesel engine:
a) Compact size
b) Economic and easy start in cold weather
2) World class brand-Stamford alternator:
a) Optional permanent magnet generator (PMG) system provides
constant excitation under all conditions
b) Easy paralleling with mains or other generators, standard 2/3 pitch
winding avoids excessive neutral currents
c) Dynamically balanced rotors with sealed-for life ball bearings and
single construction
d) Class "H" insulation system
e) Wide range of flange adapters and disc couplings
f) Conforms to all leading industrial and marine standards


Three Phase 150KVA UK Perkins Electric Diesel Generator Generating with CE ISO 0



ATS-Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.

Our normal ATS is bulit inside,but outside ATS box is optional



 Advantages:

. A strong R&D team with rigorous selection and trainning

. Several years experiences in desinging and manufacturing diesel generator sets

. Good reputation for reliable quality and reasonable price

. Advanced production line with skilled workers



Sales Promises:

. Our company provides a full line of brand new and high quality products which are strictly tested before shipment

. Quality warranty is according to our standard conditions: One year or 1000 running hours



If have any questions, please contact us. Your inquiry would be appreciated.
