Three Phase 380V AC 20, 40, 80 KVA High Frequency online UPS with RS232, AS400, RS485

Three Phase 380V AC 20, 40, 80 KVA High Frequency online UPS with RS232, AS400, RS485
Three Phase 380V AC 20, 40, 80 KVA High Frequency online UPS with RS232, AS400, RS485

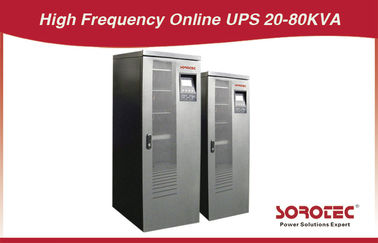

Large Image :  Three Phase 380V AC 20, 40, 80 KVA High Frequency online UPS with RS232, AS400, RS485

Product Details:
Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: HP9330C Series 20 - 80KVA
Payment & Shipping Terms:
Minimum Order Quantity: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Detailed Product Description
Rated Voltage: 380/400/415VAC Three-phase 4 Line + Earth Line Rated Frequency: 50/60HZ
Voltage Range: 380VAC±25% Frequency Range: 50/60HZ±5%
Wiring: Twin- Channel Line Input THDI: <3%
Power Factor: >0.99 Current Crest Ratio: 3∶1
High Light:

Three Phase UPS

,

uninterruptible power supply

Three Phase 380V AC 20, 40, 80 KVA High Frequency online UPS with RS232, AS400, RS485 HP9330C



Key Features

1.Large LCD Graphical display panel, convenient for operate



2.Advanced IGBT rectification, Input power factor: 0.99



3.Input current harmonic < 3%



4.The Efficiency of the machines is as high as 94%



5.Connect up to 8 units in parallel for maximum flexibility (no parallel kit required), and compatible  to battery share in the parallel mode, which helps the customers to extend the system capacity with lowcost.



6.Intelligent management of battery charging and discharging.



7.Twin-Chiannel line input.



8.Large LCD Graphical display panel, convenient for operation.







High-efficient, energy saving, green environmental protection:

The efficiency of the machines is as high as 94% and reaches over 98% in the ECO mode which can help to reduce the power loss of UPS. IGBT FM intelligent rectifier and inverter technology, the input power factor is as high as 0.99 input current harmonic wave (THDI) is as low as 3%

Three Phase 380V AC 20, 40, 80 KVA High Frequency online UPS with RS232, AS400, RS485 0







Application:
Small and medium-sized data centers, Network management center, Computer rooms for enterprises, , Control center for Manufacture, Transportation, Energy source etc. field, And for industrial precision production and test equipment(like SMT, AI equipment), As power supply & protect‘s
 key equipment







Technical Specifications of Online UPS HP9330C 20-80KVA

Model

HP9330C 20-80KVA

20K

20K-XL

30K-XL

40K-XL

60K-XL ISO

80K-XL ISO

Rated Capacity

20KVA/16KW

30KVA/24KW

40KVA/32KW

60KVA/48KW

80KVA/64KW

Rated Voltage

380/400/415VAC Three-phase 4 line + earth line

Rated Frequency

50/60HZ

Input

Voltage range

380VAC±25%

Frequency range

50/60HZ±5%

Wiring

Twin- channel line input

THDI

<3%

Power factor

>0.99

Output

Voltage precision

380VAC (±1%);Three-phase 4 line + earth line

Frequency precision

50/60HZ±0.2%

Power factor

0.8

Current crest ratio

3∶1

Overload capacity

≤110%for 60 minutes;≤125%for 10min;≤150%for 1min;

    Battery

Charging current

0.5~4.5A(adjustable)

Backup time

7mins

Determined by the amount of external-connected cells

Quantity

28/30/32(selective);compatible to battery share in the parallel mode

Efficiency



Line mode/BAT mode

94%

ECO mode

98%

Indication

LCD

I/O voltage, current, frequency, BAT voltage, charging current value, discharging current value, fault display, fault, warning

Communications

Communication interface

RS232, AS400, RS485, Service, EPO, BAT temperature compensation,

Intelligent Slot , SNMP(Option)

Operation Environment

Temperature

0~40℃

Humidity

0~95% (no dewfall)

Storage temperature

-25℃~55℃

Altitude(M)

< elevation 1500m

Weight

weight(KG)

Net weight

   182.5

    82

      110

     114

     282

    306

Gross weight

    204

    122

      160

     164

    356

    380

Dimension(WXDXH)mm

420X630 X1240

420X630 X950

490X680 X1180

600 X800 X1850



Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2  GB/17626.2~5/IEC61000-4-2~5     SAFETY:GB4943

Note: Product specifications are subject to change without further notice
