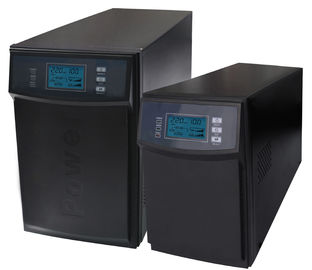

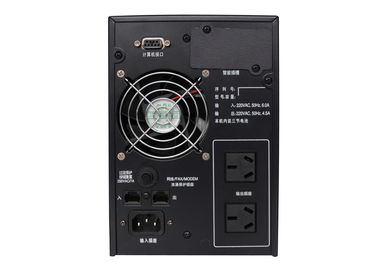

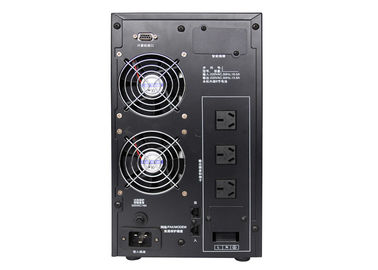

2KVA High Frequency Online UPS With Free - Maintenance Battery

2KVA High Frequency Online UPS With Free - Maintenance Battery
2KVA High Frequency Online UPS With Free - Maintenance Battery 2KVA High Frequency Online UPS With Free - Maintenance Battery 2KVA High Frequency Online UPS With Free - Maintenance Battery

Large Image :  2KVA High Frequency Online UPS With Free - Maintenance Battery

Product Details:
Place of Origin: China
Brand Name: LSG
Certification: CE,FCC,ISO9001
Model Number: LSG
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Get Latest Price
Packaging Details: 1pc/carton
Delivery Time: 30 working days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000pcs/month
Detailed Product Description
CAPACITY: 1000VA/700W, 2000VA/1400W, 3000VA/2100W Voltage Range: 120VAC
Frequency Range: 40-60HZ(adjustable) Phase: Single Phase With Ground
Generator Input: Support Waveform: Pure Sinewave
High Light:

Single Phase UPS

,

Three Phase UPS

2KVA High Frequency Online UPS With Free - Maintenance Battery



  • True on-line double conversion technology with advanced microprocessor control
  • Wide input voltage range with high frequency technology
  • Zero transfer time
  • Protection against all type of power problems
  • Self test while start of the UPS
  • Site wiring fault warning
  • On-battery power-on function
  • Smart RS232 communication interface
  • Intelligent slot available
  • Sealed acid battery, free-maintenance battery



Applications:
Servers, Data-Center Critical network devices, Sensitive electronic equipment, Telecom, Departmental servers, smaller LANs, workstation, IPC, Small medical equipment, small precision electronic instrument




Specifications:



MODEL Castle Series C1KVA C1KS C2KVA C2KS C3KVA C3KS
CAPACITY  VA/W 1000VA/700W 2000VA/1400W 3000VA/2100W
INPUT Voltage Range 120VAC
Frequency Range 40-60HZ(adjustable)
Phase Single phase with ground
Harmonic Distortion <4% THD(Linear loads);
<7%THD(Non-Linear loads);
Power Factor ≧0.97
Generator Input Support
OUTPUT Voltage 120VAC
Voltage Regulation ± 2%
Frequency  (Syn Range) 46 ~ 54Hz / 56 ~ 64Hz
Frequency (Batt Mode) 50/60Hz ± 0.2 Hz
Current Crest Ratio 3:01
Harmonic Distortion ≦2% THD ( Linear Load)
≦5% THD ( Non-Linear Load)
Waveform Pure Sinewave
Outlet IEC*4     IEC*6   IEC*4+terminal
Overload Capacity 105%-125%:turn to bypass after 1min;
125%-150%:turn into bypass after 30s;
>150%: turn to bypass after 0.5s
EFFICIENCY AC Mode >87%
Battery Mode >83%
BATTERY Battery Type 12V/7Ah Depending on capacity of external batteries 12V/7Ah Depending on capacity of external batteries 12V/7Ah Depending on capacity of external batteries
Batteries Nos. 3 8 8
Backup Time (Half Load) >5min >5min >5min
Recharge Time (90%) 8Hours 8Hours 8Hours
Charging Current(Max) 1.0A 4.0A 1.0A 4.5A 1.0A 4.5A
Rated Charging Voltage 41.1±0.3VDC 109.6±0.8VDC 109.6±0.8VDC
TRANSFER TIME AC to DC Zero
Inverter to Bypass 4ms (Typical )
INDICATOR LCD display Load/Battery/Input/Output/Operating Mode
AUDIBLE ALARM Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
Fault Continuously Sounding
DIMENSION Tower Case (D*W*H) 410*144*220mm 465x190x350mm 465x190x350mm
WEIGHT Tower Case 13kg 9kg 31kg 15.5kg 35kg 15.5kg
ENVIRONMENT Operating Environment 0-40° C
Relative Humidity 20-90% (NON-CONDENSING)
Noise Level <45dB @ 1 Meter
INTERFACE

Smart RS-232 / USB

(Option)


Software supports Windows Family, Linux, Sun Solaris,

IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX,

and MAC

External Slot (Option) External Type of SNMP / AS400 Relay Card / RS485


Competitive Advantage:

  • Pure sine wave output
  • Zero transfer time
  • DSP Control
  • High efficiency
  • Stable function
