Product Details:
Payment & Shipping Terms:
|
| RATED POWER: | 1K-6K | Power Factor: | > 0.99 |
|---|---|---|---|
| Output Waveform: | Pure Sine Wave | Communication Port: | RS-232/USB |
| High Light: | uninterruptible power system,UPS Backup Power |
||

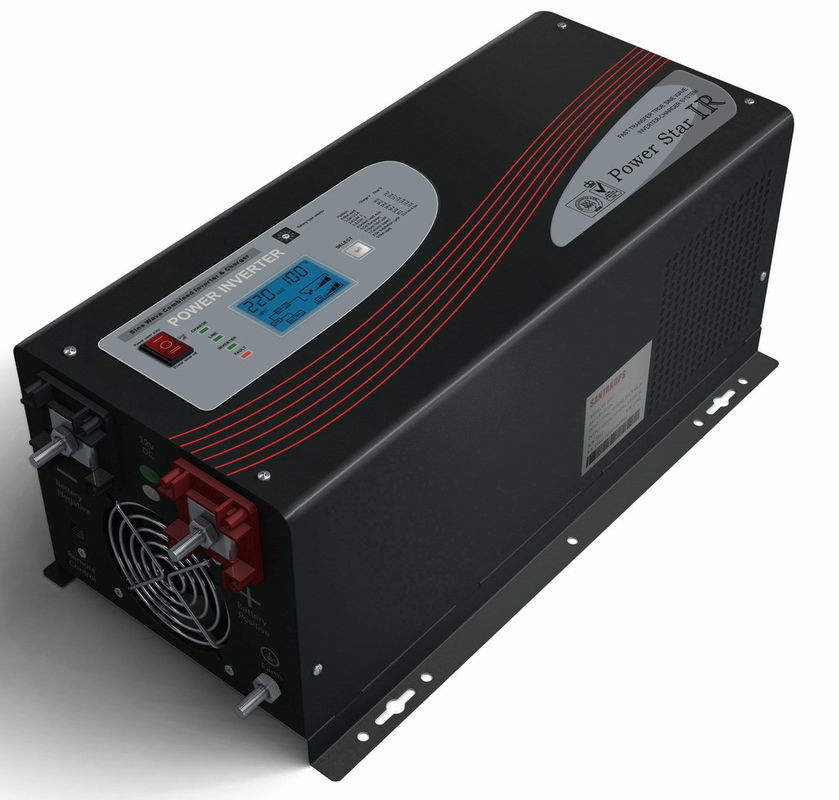

IR inverter is a combination of pure sine wave IR inverter and solar charger. It is not only makes your solar system simple in wiring, but also has all the unique features from the inverter and solar charger.
Features of IR Pure Sine Wave Inverter with Solar Charger
1. Adopts low quiescent current, and power saver mode to reduce power consumption to 10W(3s sensing cycle)/3W(30s sensing cycle) *. It can extract max. power from various batteries with different protections.
2. High overload ability of our APV charger is up to 300% rated power(20 sec.), and low voltage trip 9.5V/10V or 10V/10.5V is selectable.
3. Can achieve reverse current protection and battery temperature compensation, with the high efficiency MPPT function(97%). Auto input DC voltage can be detected between 12V/24V.

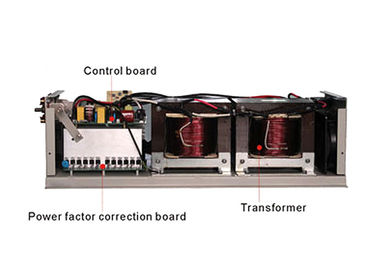

4. Supports 3-step intelligent battery charging, and equips with 8 preset battery type selector for totally flat batteries. Its powerful charge rate up to 90Amp**. In addition, PFC(power factor correction) is adopted for charger, which has less power consumption than conventional units

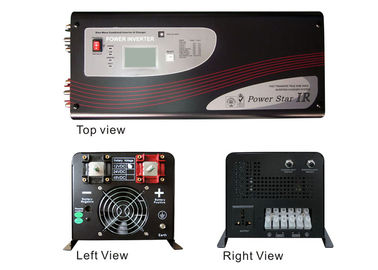

5. LCD status display, USB communication port, battery/AC priority switch are available for our APV pure sine wave inverter, it also has 17 alarms/warnings for easier operation and trouble-shooting, and ability to switch the unit on/off. In addition, select/deselect power saver mode can be used too.
Note:*For 1KW one. **For some models.
Applications:
It is suitable for the remote areas with Sunshine long time where the cost of utility is too high or emergency usage when utility is not stable.
Specifications:
|
MODEL |
IR1k |
IR2K |
IR3K |
IR4K |
IR5K |
IR6K |
|
RATED POWER(W) |
1K |
2K |
3K |
4K |
5K |
6K |
|
GRID-TIE OPERATION |
||||||
|
PV INPUT (DC) |
||||||
|
Nominal DC Voltage / Maximum DC Voltage |
300 VDC / 350 VDC or 360VDC/500VDC |
|||||
|
Start-up Voltage/Initial Feeding Voltage |
80 VDC / 120 VDC or 116 VDC / 150 VDC |
|||||
|
MPPT Voltage Range |
150 VDC ~ 320 VDC OR 250 VDC ~ 450 VDC |
|||||
|
Maximum Input Current |
15 A |
|||||
|
GRID/UTILITY INPUT (AC) |
||||||
|
Nominal Output Voltage |
101/110/120/127 VAC OR 208/220/230/240 VAC |
|||||
|
Output Voltage Range |
88 - 127 VAC*OR 184 - 265 VAC* |
|||||
|
Nominal Output Current |
18 A OR 13.6A |
|||||
|
Power Factor |
> 0.99 |
|||||
|
EFFICIENCY |
||||||
|
Maximum Conversion Efficiency (DC/AC) |
>94.5% OR >95.5% |
|||||
|
European Efficiency@ Vnominal |
>93.5% OR >95.5% |
|||||
|
OFF-GRID OPERATION |
||||||
|
AC INPUT |
||||||
|
AC Start-up Voltage/Auto Restart Voltage |
60 - 70 VAC / 90 VAC OR 120 - 140 VAC / 185 VAC |
|||||
|
Acceptable Input Voltage Range |
85 - 130 VAC* OR 175 - 280 VAC* |
|||||
|
Max AC Input Current |
30 A |
|||||
|
PV INPUT (DC) |
||||||
|
Maximum DC Voltage |
350 VDC OR 500 VDC |
|||||
|
MPP Voltage Range |
150 VDC ~ 320 VDC OR 250 VDC ~ 450 VDC |
|||||
|
Maximum Input Current |
15 A |
|||||
|
BATTERY MODE OUTPUT (AC) |
||||||
|
Nominal Output Voltage |
101/110/120/127 VAC OR 208/220/230/240 VAC |
|||||
|
Output Waveform |
Pure Sine Wave |
|||||
|
Efficiency (DC to AC) |
90% OR 92% |
|||||
|
HYBRID OPERATION |
||||||
|
PV INPUT (DC) |
||||||
|
Nominal DC Voltage / Maxi DC Voltage |
300 VDC / 350 VDC or 360 VDC / 500 VDC |
|||||
|
Start-up Voltage / Initial Feeding Voltage |
80 VDC / 120 VDC or 116 VDC / 150 VDC |
|||||
|
MPPT Voltage Range |
150 VDC ~ 320 VDC or 250 VDC ~ 450 VDC |
|||||
|
Maximum Input Current |
15 A |
|||||
|
GRID/UTILITY OUTPUT (AC) |
||||||
|
Nominal Output Voltage |
101/110/120/127 VAC OR 208/220/230/240 VAC |
|||||
|
Output Voltage Range |
88-127 VAC OR 184-265 VAC |
|||||
|
Nominal Output Current |
18 A |
|||||
|
AC INPUT |
||||||
|
AC Start-up Voltage / Auto Restart Voltage |
60 - 70 VAC / 93 VAC OR 120 - 140 VAC / 194 VAC |
|||||
|
Acceptable Input Voltage Range |
88-127 VAC OR 184-265 VAC |
|||||
|
Max AC Input Current |
30 A |
|||||
|
BATTERY MODE OUTPUT |
||||||
|
Nominal Output Voltage |
101/110/120/127 VAC OR 208/220/230/240 VAC |
|||||
|
Efficiency (DC to AC) |
90% OR 92% |
|||||
|
BATTERY & CHARGER |
||||||
|
Nominal DC Voltage |
12v/24v/48vDC |
|||||
|
Max Charging Current |
70A |
|||||
|
GENERAL |
||||||
|
PHYSICAL |
||||||
|
Dimension,DXW X H (mm) |
423*185*160 |
600*184*155 |
||||
|
Net Weight (kgs) |
1kw:20kgs; 2kw:22.5kgs; 3kw:27.5kgs; 4kw:39kgs; 5kw:44.5kgs; 6kw:47kgs |
|||||
|
INTERFACE |
||||||
|
Communication Port |
RS-232/USB |
|||||
|
Intelligent Slot |
Optional SNMP, Modbus, and AS-400 cards available |
|||||
|
ENVIRONMENT |
||||||
|
Humidity |
0 ~ 90% RH (No condensing) |
|||||
|
Operating Temperature |
0 to 40°C |
|||||
|
Altitude |
0 ~ 1000 m* |
|||||
Competitive Advantage:
Competitive Advantage:
1KW-6KW hybrid inverter
Pure sine wave output
Microprocessor controlled to guarantee stable charging system
Multiple operations: Grid tie, Off grid, and grid-tie with backup
Built-in Supper 3 steps charger
LCD display panel for comprehensive information
Multiple communication
Green substitution for generators
Charging current Optional 10A -60A
