LCD display Low Frequency Online Data Center UPS 50/60Hz 220V 8KW / 12KW

LCD display   Low Frequency Online  Data Center UPS 50/60Hz 220V  8KW / 12KW
LCD display   Low Frequency Online  Data Center UPS 50/60Hz 220V  8KW / 12KW

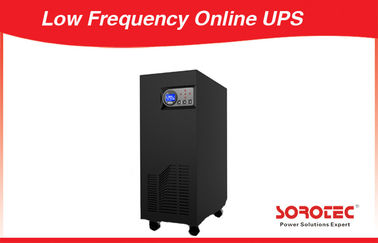

Large Image :  LCD display Low Frequency Online Data Center UPS 50/60Hz 220V 8KW / 12KW

Product Details:
Place of Origin: China
Brand Name: SOROTEC
Certification: CE,ROHS,ISO9000
Model Number: GP9111C GP9311C Series 6-15KCA 10-40KVA
Payment & Shipping Terms:
Minimum Order Quantity: USD10000
Packaging Details: Standard Exported Cartons and Pallets
Delivery Time: Within 15-30days after receiving your 30% TT deposit
Payment Terms: 30% TT in advance, the balance before shipping
Supply Ability: 10000PCS/Month for Inverter and line Interactive UPS; Advance 3000PCS/Month for Online UPS
Detailed Product Description
High Light:

Pure Sine Wave UPS

,

uninterruptible power system

LCD display   Low Frequency Online  Data Center UPS 50/60Hz 220V  8KW / 12KW





Key Features:

1.1ph in/1ph out or 3ph in/1ph out, support 380/400/415V, 50/60Hz power system.


2.Pure-online double conversion technology, to provide the best quality of power supply.


3.Suitable for all kinds of loads, and a high overload capacity.


4.Super Wide range of input voltage anti-interferance, adapt to harsh environment in power network.


5.Intelligent battery management, extending the battery life.


6.Large LCD display in Chinese and English human-machine interface.





Applications:

IDC data exchange center medium-sized rooms, medium-scale network management systems, billing center, banking / securities clearing centers, industrial process control, traffic control areas......





Technical Specifications of Online UPS GP9111C GP9311C Series

Model

GP9111C  6-15KVA

GP9311C  10-40KVA

6KVA

8KVA

10KVA

15KVA

10KVA

15KVA

20KVA

30KVA

40KA

Capacity

6KVA/4.8KW

8KVA

/6.4KW

10KVA

/8KW

15KVA

/12KW

10KVA

/8KW

15KVA

/12KW

20KVA

/16KW

30KVA

/24KW

40KA

/32KW

Rated voltage

220V single phase

380V three phase 4 wires+G

Rated frequency

50/60HZ

AC input

Voltage range

220V±25% single phase

380V±25% three phase 4 wires + G

Frequency range

50/60HZ±5%

Soft strat

0-100%   5sec

Power factor

>0.92(with input filter)

Bypass input

Voltage range

220V±25% single phase

380V±25% three phase 4 wires + G

Frequency range

50/60HZ±10%

Inverter bypass

(overload)0ms





Output

Voltage accuracy

220V±1%(steady-state load), 220V±3%(load fluctuations)

Frequency accuracy

50/60Hz±0.05Hz(battery power)

Power factor

0.8(lagging)

Distortion

<3%(linear load), <5%(non linear load)

Steady-state response time

<10ms

Overload capacity

110%load can run normally;125%10min;150%1min;

battery

Nominal voltage

192V

360V

Float voltage

216V

405V

Cut-off voltage

168V

315V

Charger current

1A-50A(According to the battery capacity can be set configuration)

Other

Display

LEDLCD

Alarm

Sound and light alarm

Protection

UPS over current, short circuit, under voltage, over temperature

Environment



Noise

60-65dB

Operating

Temperature:0-40℃    Relative humidity :0-90%

Box color

Gray (optional)

Physical

Wight
(KG)

Net

122

125

143

175

182.5

235.5

285.5

354.8

354.8

Gross

142

147

163

199

225.5

268.5

325.2

389.5

389.5

Dimensions:

W×D×Hmm)

210×600

×560

305×586

×850

350×675

×920

430×792

×1060



Follow standard of GB/IEC regulation: EMC:GB7260.2/IEC62040-2  GB/17626.2~5/IEC61000-4-2~5     SAFETY:GB4943

Note: Product specifications are subject to change without further notice





GP9111C GP9311C Series Working Principle of UPS:
LCD display   Low Frequency Online  Data Center UPS 50/60Hz 220V  8KW / 12KW 0
