250W Polycrystalline Panels Photovoltaic Power Generation System 22MW

China 250W Polycrystalline Panels Photovoltaic Power Generation System 22MW supplier
250W Polycrystalline Panels Photovoltaic Power Generation System 22MW supplier 250W Polycrystalline Panels Photovoltaic Power Generation System 22MW supplier 250W Polycrystalline Panels Photovoltaic Power Generation System 22MW supplier 250W Polycrystalline Panels Photovoltaic Power Generation System 22MW supplier

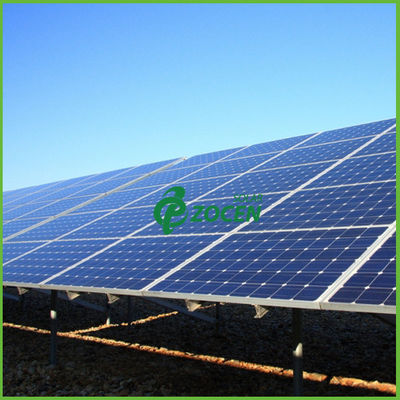

Large Image :  250W Polycrystalline Panels Photovoltaic Power Generation System 22MW

Product Details:

Place of Origin: China
Brand Name: ZOCEN
Certification: CE,CQC,IEC,TUV,CEC,MCS,CHUBB, ISO9001
Model Number: ZCGT-22MW

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Delivery Time: 5-10 days
Payment Terms: Ex works
Supply Ability: 200MW/year
Contact Now
Detailed Product Description


Place of origin
Brand name
Output Voltage
Load Power


Solar Power



250W Polycrystalline Panels Photovoltaic Power Generation System 22MW


1> Description:


How does Solar Power work?

Solar Panels

Solar Panels or PV arrays are PhotoVoltaic cells grouped on a module. These PV cells produce energy by interacting with sunlight. So in order to understand how solar panels work we should first understand the basic facts about sunlight.

Sunlight is the energy released by the fusion process that takes place in the core of the sun. Anyone taking a sunbath could confirm that it is perceived as a combination of light and heat. The basic particles or units of this energy are called photons.

So we have these tiny energy packets called photons being emitted by the Sun. How are they converted into electricity by Solar Cells?

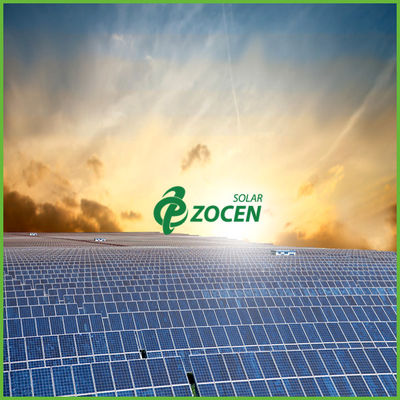

250W Polycrystalline Panels Photovoltaic Power Generation System 22MW

An electrical current is the flow of electric charge from one point to another. Solar cells are made of semiconductor materials, mainly - and almost exclusively- crystal silicon.

This fancy-name material can be found in most electronic devices and it is what makes possible for energy to flow through computer chips. Due to its particular molecular structure, current can be carried either by the flow of electrons or by the flow of positively-charged "holes" in the electron structure of the material. We will explain this last point further below.

Pure crystal silicon is almost neutrally charged, so it would not function well to produce electricity. So other elements must be added to achieve a negative or positive charge, this process is called doping.

So there are two types of silicon that work together in transferring sunlight into power. The first is N Type (negative) silicon, which has been added with phosphorus and has much more electrons for photons to "break loose". The second is P Type (positive) silicon, which contains boron thus having free openings, or holes. Putting it simple: N type silicon has charge to give and P type silicon needs charge. The junction area has a thin slice of p-type silicon (wafer) that has been diffused with a n-type dopant (phosporus), or the other way around. One might think: if the two types of silicon are put toghether they would become balanced - neutral- again, but this does not hapeen due to the electric field that is generated on the junction. The electric field acts as a diode, making harder for charges to go from the N side to the P side and eventually balancing this diffusion. Also, it promotes charge flow in a particular sense.

At last, in terms of the electric process, the cell needs to be connected to an external load. Metal contacts are placed both on the n-type and p-type sides of the solar cell, and electrodes (electrical conductor used to make contact with nonmetallic parts) are connected to an external load. Thus negative charges travel to a wire, power the load and continue until reaching a p-type metal contact where it combines with a positive charges.

Let's recapitulate:

  1. The sun emits an electromagnetic energy that travels in the form of photons and hit the solar cell
  2. Photons energy breaks doped silicon electron-hole pairs
  3. The generated electric field on the junction pushes the electrons to the N side and the hole to the P side
  4. Both sides are connected via metal contacts and electrodes to an external load which will transport the electrical current.

After all this there is an electrical current generated by the flow of charges and electrical voltage caused by the electrical field. There is power to sustain an electronic device.

However, the power a single solar cell produces is very little. Solar cells are combined within solar panels which in turn can be wired up in series in order to give off the required levels of power.



How Solar Power is used to power a grid-tied system?

Solar panels systems converts sunlight into DC (direct current) electricity. DC electricity is then passed onto an electronic power inverter which changes it from DC into AC (alternating current). The AC electricity is then distributed to the building’s power system which supplies the electricity. Excess power is diverted to the power grid which causes the electric meter to turn backwards and therefore credits the electric utility bill. When the sun is absent the utility power is used to generate electricity.

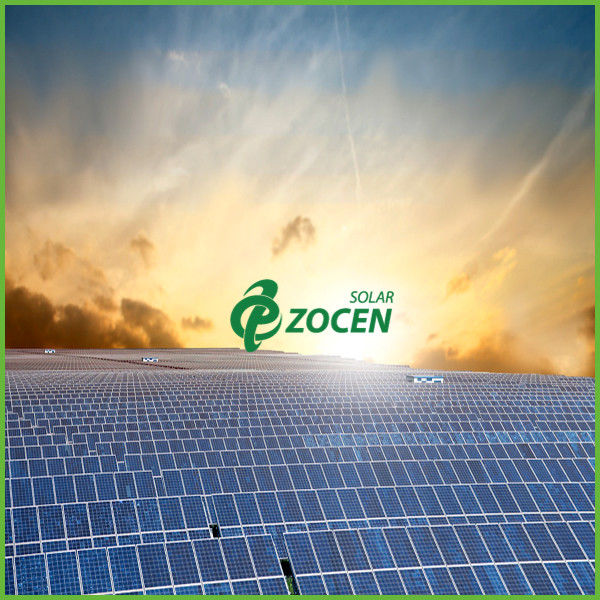

250W Polycrystalline Panels Photovoltaic Power Generation System 22MW

1. Solar Modules Solar modules mounted on the roof or grounds of your property convert sunlight into DC power.

2. Inverter This power is sent to a device called an inverter (or power converter) which converts the DC power from the solar modules to AC power identical to that being sent to you from the utility grid.

3. Electrical Panel Power travels from the inverter to your electrical service panel (your breaker box). The power from the electrical panel will be distributed to any electrical loads in your home.

4. Utility Meter When excess power is produced by the solar, the power will flow into the grid through your electric meter. This will cause your meter to run backwards gaining you a credit with the utility company.

5. Utility Grid The utility grid automatically provides electricity when needed - at night and during the day when your demand exceeds your solar production.




2> Specifications


Solar Panels 88000pcs, 250W Polycrystalline panels
Inverter three phases 22MW outdoor on grid inverters
Bracket aluminum bracket one set
Combiner ABB/Schneider200-900VDC
Solar dog Monitor
Cable 4/6 S.q.mm one set
AC power 22000000Watt
Nominal AC voltages 127V-415V
Nominal AC frequency 50Hz/60Hz
Efficiency 98.00%
Euro ETA 97.70%




3> Features:


  1. One-stop service from components to logistics
  2. High-efficiency solar modules included
  3. Provides long term and reliable power performance
  4. With over-voltage, low and overload protection
  5. Easy-to-install
  6. Fast and accurate delivery; no waste and waiting time
  7. Free pre-sale technical support, including system design




4> Long service lifespan:


Zocen Solar confirm that our solar panel will last for at least 25 years, 5 years warranty on material and workmanship, and guarantee the output will be 90% after 10 years.






5> Our Services


  • Zocen Solar solutions are:
  1. Designed for low-light and highly exposed locations
  2. Quick and low cost to deploy
  3. Rated from -35 to 85°C (operational)
  4. Industrial electrical infrastructure designed for seamless integration with existing systems
  5. NEC code compliant over current, lightning protection and safety disconnect
  6. Solid-state electronics
  7. TUV/IEC/CE listed components
  8. Designed for environmentally challenged locations
  9. 25 years solar module warranty and full system warranty
  • Zocen Solar benefits:
  1. Take control of and reduce your business' monthly electricity bills
  2. Work with the best solar team in the industry with exceptional service
  3. Finance capital expense with Solar Leading leasing, loan financing and government credit programs
  4. Deploy best-of-breed solutions targeted for your specific solar exposure and facility requirements





6> Our Certificates

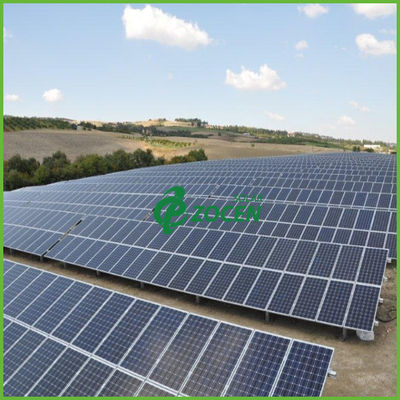

250W Polycrystalline Panels Photovoltaic Power Generation System 22MW
