Slewing Drive for Solar Plant Cycloidal Speed Reducer HDR 30 Dynamic Loading 3000Nm

China Slewing Drive for Solar Plant Cycloidal Speed Reducer HDR 30 Dynamic Loading 3000Nm supplier
Slewing Drive for Solar Plant Cycloidal Speed Reducer HDR 30 Dynamic Loading 3000Nm supplier Slewing Drive for Solar Plant Cycloidal Speed Reducer HDR 30 Dynamic Loading 3000Nm supplier

Large Image :  Slewing Drive for Solar Plant Cycloidal Speed Reducer HDR 30 Dynamic Loading 3000Nm

Product Details:

Place of Origin: Wenzhou City,Zhejiang,China
Brand Name: HENGTAI
Certification: CE,ISO9001:2008,ISO14001,GB28001
Model Number: HDR series

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: US $ 3000 - 90000 / Piece
Packaging Details: 1 PCS packed in ONE WOODEN CRATE
Delivery Time: 40 days
Payment Terms: T/T or LC
Supply Ability: 100pcs/month
Contact Now

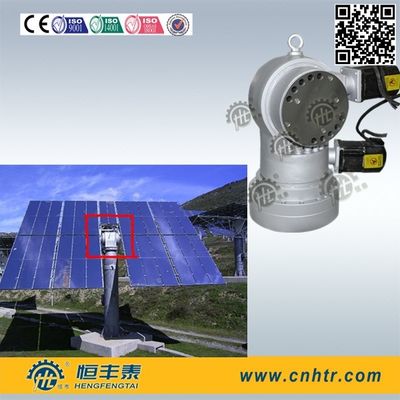

Detailed Product Description
Backlash: 0.015 Degree Model: HDR30
Torque: 3000Nm Mirror Volume: 30 Square Meters
Ratio: 30000:1 Weight: 180Kg

Slewing Drive Cycloidal Speed Reducer Loading 3000Nm



Features:



a. Multitooth meshing output, big output torque radius value, powerful carrying capacity.



Adopt modification of “positive equidistant + negative shift ” and reasonable modification parameter, realize “roachback tooth form” design of tooth profile, to homogenize loading between gear teeth of reducer and achieve large torque transmission function.





b.High-precision transmission, large output stiffness,low retrace tolerance, backlash error below 0.05°



Because multitooth mesh at same time, the loading situation is similar with spline. Therefore, it has extremely torsional rigidity and tiny retrace tolerance. Made of high precision gear and planetary, gear is made of hammering high wear-resisting, high-quality alloy material, surface-hardening treatment; processed with precision grinding machining.



c The special design of the bearing structure, long service life.



Gearing exposure to torque and impact loads without transmission parts, bore by the body and slewing directly, thereby reduce the burden on the transmission components, to improve life expectancy, maintain accuracy, with good results.



d Big ratio, high efficiency,self-locking ability





HJR04 Performance index

 Performance

Unit

(Fx shaft)

(Fz shaft)

MotorPower

(w)

400

200

 Ratio

——

43711.01

45035.586



Mechanical Efficiency

——

≥40%

≥40%

backlash

(°)

0.05°

0.05°

Service life

year

≥25

≥25

Nominal output torque

(Nm)

7060

5680

Max output torque

Nm

17650

14200

Static load

(N)

25000

20000

Dynamic load

(N)

25000

20000

Service environment

(℃)

-20~50

-20~50

 Noise

(db)

≤70db

≤70db

Maximum strength

Torsional strength (Nm/rad)

11.4×10e6

Bending strength (Nm/rad)

16.2×10e6





 Performance

Model

Ratio

Rotate range
(o)

Horizontal allowable maximum dynamic torque
(N.m)

Horizontal allowable maximum static torque
(N.m)

Elevation allowable maximum dynamic torque
(N.m)

Elevation  allowable maximum static torque
(N.m)

Maximum torsional stiffness
(N.m/rad)

Backlash
(o)

HJR01

35000
~
50000

360

5578

9296

5132

8553

15.7×10e6

0.015

HJR02

35000
~
50000

360

5976

9960

5756

9593

18.4×10e6

0.015

HJR03

35000
~
50000

360

10160

16933

9865

16442

36.0×10e6

0.015

HJR04

35000
~
50000

360

15216

25360

14512

23587

38.0×10e6

0.015

HJR05

35000
~
50000

360

27430

45717

26381

43968

10.5×10e7

0.015

HJR06

35000
~
50000

360

36887

61479

35785

59642

14.4×10e7

0.015

HJR07

35000
~
50000

360

48285

80474

47665

79442

19.0×10e7

0.015

HJR08

35000
~
50000

360

62595

104325

61758

102930

33.3×10e7

0.015



Competitive Advantage:

From Year 2008, Hengfengtai Reducer began to solar power generator transmission equipment research and production, now owned 4 series solar positioning tracking devices, and signed cooperated agreement with domestic research institutes and solar enterprises, products are good comments by them.

1, HJR series multifunction positioning transmission device(application in tower,disc system)

2, HJX high precision double output shaft transmission device(application in groove system)

3,HJW series integrated multifunction positioning transmission device(application in tower,disc system)

4,HJV enclosed type double output shaft transmission device. (Apply to Fresnel and photovoltaic system)



R&D: participated in 863 National Plan, mainly responsible for industrial robot joint reducer, as well as solar tracking reducer.

Factory Scale:  Currently 2 factory plants: Sanxi industry zone and Binhai industry zone, with totally 400 personnel, and advanced equipments & machines.

Turnover of last year: 60m USD



Technology capacity

  • Hengfengtai is certified State High-tech Enterprise,
  • Enterprise Technique Center of Zhejiang province,
  • Applying ERP information management, CAD, pro/E, UG, CFD etc advanced software are widely used in  drawing craft, and PDM for technique files management to keep the designing safe, high efficiency and accuracy.
  • Good long-term relationship with Zhejiang University, Shenyang aluminum & magnesium Design Institute, and Zhengzhou Light Metal Research Institute etc.
