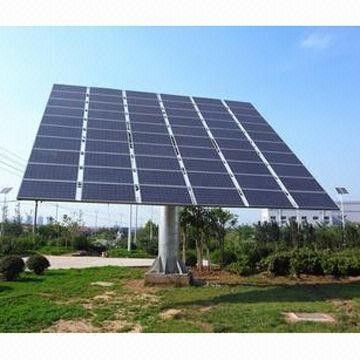

Solar/Thermal and Wind Power Plant

All Products

High Frequency Online UPS (167)

Rack Mount Online UPS (102)

Low Frequency Online UPS (96)

3 Phase UPS Systems (114)

CCTV Power Supplies (61)

Solar Power Inverter (116)

Automatic Voltage Regulator (AVR) (110)

48V DC Power Supply (68)

208Vac Online UPS (98)

Off Grid Solar Power Systems (141)

110V UPS (79)

DC AC Inverter (73)

Double Glass Solar Panel (84)

Large Scale Photovoltaic Power Plants (35)

Solar Panel Street Lights (121)

Certification

The company considerate after-sales service ,And try their best to meet the requirement of customers. We will be a long-term cooperation.

—— Albert

This is a fantastic sourcing platform, considerate service and good quality product.

—— philip

You always can give me the best plan ,and it lets my customer feel great,i hope we can have another chance to cooperation.

—— Tim

I'm Online Chat Now

Product Details:

Place of Origin:	China (mainland)
Brand Name:	RUNH
Model Number:	PP-1-2
Main Export Markets:	Eastern EuropeNorth AmericaMid East/AfricaCentral/South AmericaAsia
Category:	Solar Cells, Solar Panel

Payment & Shipping Terms:

Payment Terms:	L/C

Contact Now

Detailed Product Description

Key Specifications/Special Features:

Table 7 the technical parameter of 270W muti-crystalline PV module
Technical parameters:
- Voc: 44.5V
- Isc: 8.2A
- Vmp: 35.2V
- Imp: 7.67A
- Pm: 270Wp
Cell efficiency: 15.4%
Module efficiency: 14.0%
Fill factor: 0.74
Current temperature coefficient: 0.06, ±0.01%/K
Voltage temperature coefficient: 155, ±10mV/K
Power temperature coefficient: 0.5, ±0.05%/K
Working temperature range: -40 to +85 degrees Celsius
Maximum system voltage: 1,000V DC
Rated power current temperature NOCT: 48, ±2 degrees C
Cable: junction box
Wiring: 900mm, LAPP (4.0mm²)
Cell: muti-crystalline cell 156 x 156mm
Cell quantity and arrangement: 72 (6 x 12)
Dimension of module: 1,950 x 990 x 50mm
Weight: 24.5kg
Certificates: CE, IEC61215 and TUV
Applications: large, intermediate scale PV power plant, household photovoltaic generating system
