Off grid Magnetic Wind Turbine Solar Wind Street Light for Telecoms B

Off grid Magnetic Wind Turbine Solar Wind Street Light for Telecoms B
Off grid Magnetic Wind Turbine Solar Wind Street Light for Telecoms B Off grid Magnetic Wind Turbine Solar Wind Street Light for Telecoms B Off grid Magnetic Wind Turbine Solar Wind Street Light for Telecoms B

Large Image :  Off grid Magnetic Wind Turbine Solar Wind Street Light for Telecoms B

Product Details:
Place of Origin: China
Brand Name: TYPMAR
Certification: CE,TUV, IEC
Model Number: CXF-1000W- 48V/ CXF-3000W、48V /96V
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Plywood box
Delivery Time: 5-15 days
Payment Terms: Ex works
Supply Ability: 5000PCS/week
Detailed Product Description
High Light:

Solar And Wind Powered Street Lights

,

solar powered street lights



Off grid Magnetic Wind Turbine Solar Wind Street Light for Telecoms B





The mobile phone telecommunication sector has been growing at an explosive rate in the last 10 years. Between 1997 and 2012, an additional 1 billion new customers were added especially in the rural areas. For a telecommunications operator to access these new markets and provide services to potential customers in remote rural areas, they must solve the problem of supplying electricity in a reliable and cost-effective way.

A base transceiver station (BTS) is a piece of network equipment that facilitates wireless communication between a device and network.





A BTS consists of the following:



  • Antennas that relay radio messages
  • Transceivers
  • Duplexers
  • Amplifiers

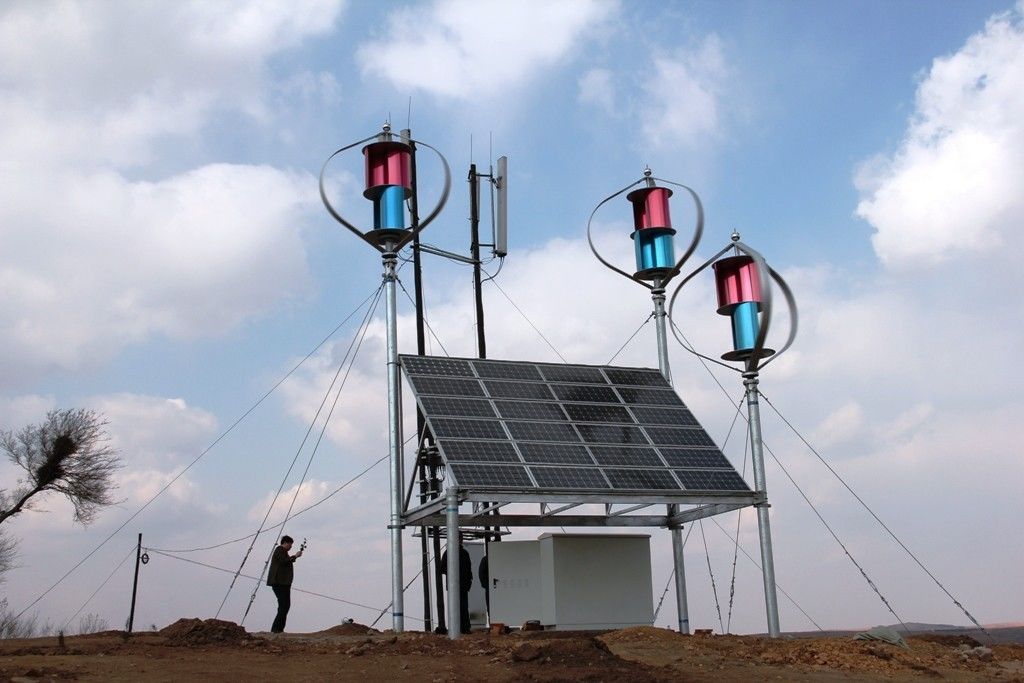

TYPMAR Provides innovative and comprehensive solutions to Telecoms BTS (Base Transceiver Station). The system consists of maglev vertical axis wind turbine, solar panel, smart wind-solar hybrid controller, battery tank and inverter. The system features many advantages of neither public power supply needed nor cables laid down, anywhere for installation, and convenient to relocate if need. It can provide power supply continuously for 3 days even if there are neither sunlight nor wind. The maglev wind turbine is of Gyro-type stable structure and visually pleasing appearance.  The magnetic levitation technology and wind-PV combination makes the system generating power high efficiently and stably.



The hybrid power system operates with System Monitoring Unit for remote power monitoring and control. The system operating data will be transferred via GPRS network, which can display real-time and event log data that helps the customers to monitor consumed energy of Telecoms BTS.

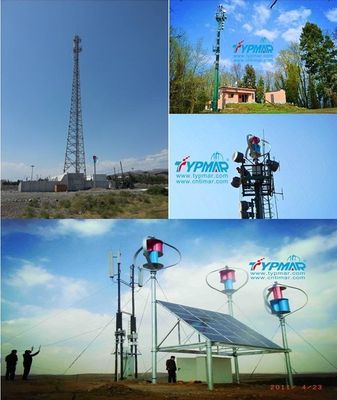

Sample application of Hybrid System for Telecoms BTS



2.8 kWp PV arrays

3 units of 1kW vertical axis maglev wind turbines

3 units of wind solar hybrid MPPT intelligent controller; Input nominal voltage 48 Vdc





The system meets the customers’ program goals for increased reliability, reduced maintenance, and high efficiency thank to the innovative maglev technology used in vertical axis wind turbines.





Technical Specifications



Items

CXF1000

CXF3000-Ⅱ

Rated power

1000W

3000W

Dimension

(Height/Diameter)

Ø2400/2340

Ø4160/4570

Weight

188KG

780 kg

Blade material

Aluminum Alloy

Aluminum Alloy

Blade quantity

3

3

Swept area ㎡

3.6

10.08

Min starting wind speed

1.5m/s

1.5m/s

Cut-in wind speed

3.5m/s

3.5m/s

Rated wind speed

13m/s

13m/s

Cut-off wind speed

15m/s

15m/s

Survival wind speed

60m/s

60m/s

Generator type

AC,3Phases

AC,3Phases

Controller Output Voltage

48V

48V/96V

Controller Braking System

3-phase short circuit by NFB brake

3-phase short circuit by NFB brake

Ambient Temperature

-40~50 ℃

-40~50 ℃

Noise

Tested by China National Machinery Quality Inspection Centre at 12m/s: <40db
