3 Years Warranty Meanwell 100W Led Street Light 120 Degree Beam Angle

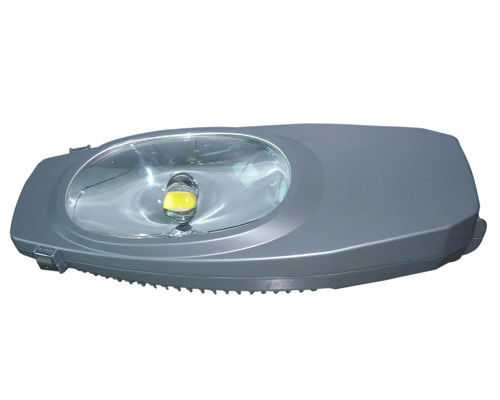

Large Image : 3 Years Warranty Meanwell 100W Led Street Light 120 Degree Beam Angle

Product Details:

Place of Origin:	SHENZHEN, CHINA
Brand Name:	ROMANSO
Certification:	SAA, CE, LVD, EMC, RoHS, FCC
Model Number:	RMS-STAE220V-100W

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece/Pieces
Price:	Negotiable
Packaging Details:	Neutral package or Customized package.
Delivery Time:	7 Days for Sample, 15 Days for Mass Production.
Payment Terms:	T/T, Paypal, Western Union, L/C
Supply Ability:	250 PCS/DAY

Contact Now

Detailed Product Description

Input Voltage(V):	AC100-240V/ DC12V/24V	Power:	100 Watt
LED Chip:	USA Bridgelux COB LED	Beam Angle:	120 Degree
IP Rated:	IP65	Lifespan:	50,000 Hours
High Light:	led street lighting , city street light

3 Years Warranty Meanwell 100W Led Street Light 120 Degree Beam Angle

► Feature

Long lifespan, Energy saving,Environment friendly, High efficiency, No strobe, No ghosting, No UV, IR.
100w COB LED Street Light has the specil design looks, and also very good at the heat dissipation,to make the temperature low
The Lighting source of the led street light is using super bright Bridgelux LED chip, It’ s single led chip with top
quality which lumen is up to 120lm/W
Using high efficiency thermal conductivity silicon, it’s assured the heat sink of the light, the temperature of the junction is not pass 65 ℃, which is effective controlled the light degradation, the lifespan for the led light is over 50000 hours.
The range for the input voltage is wide. Which make the led street light are available for the global. Unique protection circuit and exact constant current system assure the abilities such as anti-interference and stability of the light.
Available for solar DC10V-28V to realize the secondary energy saving system.
We offer 3 years warranty

► Specification

Model	Datasheet
RMS-STAE220V-100W	LED Lamp	Power:100W Input voltage:DC24V LED chip: Bridgelux LED Luminous efficiency>130lm/w Lifespan:>50000Hrs Light decay: < 4% after using 10,000hours Diameter of pole:60mm Dimension:760X345X180mm IP Rating: IP67
	Solar Panel	Power:2pcs 150W, mono crystalline Service life:above 20years warranty:3 years with a solar bracket
	Battery	12V/100AH gel battery
	PWM Controller	24V/20A microcomputer controller IC
	working time	6-15hours per day three days in rainy or cloudy days

► Dimension

3 Years Warranty Meanwell 100W Led Street Light 120 Degree Beam Angle 0

3 Years Warranty Meanwell 100W Led Street Light 120 Degree Beam Angle 1

► Application

LED Street Light is widely used in roadway, speedway,aerodrome, dock, bus station, square, street, park, courtyard,etc. It generates more light than traditional high pressure sodium lamp, up to 90lm/w, and saves up more than 50% of electrical power, and it is strictly operated according to RoHS standard, and has 50,000 service hours. The whole integrated of aluminum, secondary optical design, ensure that it can survive in the extreme condition, and illuminate larger area.

3 Years Warranty Meanwell 100W Led Street Light 120 Degree Beam Angle 2
