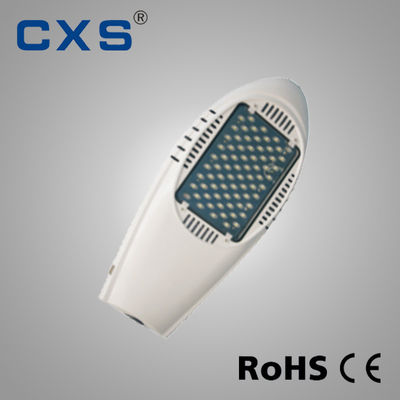

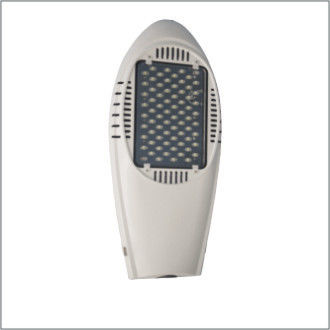

Garden LED Outdoor Street Lights Waterproof Aluminium Alloy Material



Garden LED Outdoor Street Lights Waterproof Aluminium Alloy Material

Quick Detail:

1.Rated voltage :AC220v 50HZ
2.Watt: 80w
3.LED quantities: 80PCS
4.Lamp Efficiency:100lm/w
5.Installing height:12m
6.Color rendering index: more than70
7.Correlated color temperature: 5000K-5500K
8.Protection grade: IP 66 min
9.Life span: more than 50000hours
10.Ambient environment: environment temperature: -40 degrees
11.Celsius to 50 degrees Celsius; relative humidity: 10%-95%.
12.Body material: aluminium alloy +stainless steel
13.Lamp size: L688mm*W366mm*T175mm
14.Net weight:9kgs


Applications:

Suitable for flammable and explosive place security work, for a variety of indoor and outdoor workplaces. China's coal industry, China petroleum, Sinopec, electricity, metallurgy, railway, steel, shipbuilding, military, aerospace, public security fire control, chemical industry and the use of large enterprise fixed lighting needs.

Picture	Item Name	Technical parameters	Sets per system
	BST36Z-FVN	Input voltage: AC220v 50HZ Input power:80w LED quantities: 80PCS Lamp Efficiency:100lm/w Installing height:12m Color rendering index: more than70 Correlated color temperature: 5000K-5500K Protection grade: IP 66 min Life span: more than 50000hours Ambient environment: environment temperature: -40 degrees Celsius to 50 degrees Celsius; relative humidity: 10%-95%. Body material: aluminium alloy +stainless steel Lamp size: L688mm*W366mm*T175mm Net weight:9kgs	1
Condition: this allocation can keep 3 cloudy day , 12 working hours every day
	solar controller	Tracer-2201RN,20A,24V, MPPT and Time+light controlling	1
	gel battery	150AH,12V	2
	solar panel	360W,36V	1
	pole	12M pole(including foundation bolt,battery box)	1


Features:

1.By high power LED light source, green through effective control of the LED surface temperature, and matches by the three levels of derating design to improve the service life of the lamps and lanterns, can reach more than 10 years.
Street lamp bat wing optical design, the effective energy saving more than 60% compared with the gas discharge lamp.
2.The LED lamps and lanterns is does not contain mercury and other harmful substances to the environment.
3.Instantaneous start LED lamps and lanterns, eliminates the traditional gas discharge lamp to start the long shortcomings.
4.Compared with the traditional LED street lamps and lanterns shape, unique appearance modelling conforms to the modern aesthetic point of view.
5.High protection grade, to ensure that outdoor use life does not affect the internal device.
Case with lightweight alloy material, light weight, and the surface spray processing, suitable for outdoor use for a long time.
6.9+Safety performance is good, have a temperature, over voltage, short circuit protection, lightning protection against surge.
Pillars and lateral two installation ways.
