Waterproof IP65 Solar LED Roadway Lighting AC85 - 265V Warm / Pure / Cool white

Waterproof  IP65 Solar LED Roadway Lighting AC85 - 265V Warm / Pure / Cool white
Waterproof  IP65 Solar LED Roadway Lighting AC85 - 265V Warm / Pure / Cool white Waterproof  IP65 Solar LED Roadway Lighting AC85 - 265V Warm / Pure / Cool white

Large Image :  Waterproof IP65 Solar LED Roadway Lighting AC85 - 265V Warm / Pure / Cool white

Product Details:
Place of Origin: Shenzhen, China
Brand Name: SNOOWEL
Certification: CE, RoHS, FCC, UL, TUV
Model Number: SW-SL403-W30
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: One piece in one carton, with good protection
Delivery Time: 5 to 7 days for samples, 7 to 15 days for bulk orders
Payment Terms: T/T, L/C, Western Union, MoneyGram, Paypal
Supply Ability: 20000pcs per month
Detailed Product Description
Watts: 30w Operating Voltage: AC85-265V, DC12V, DC24V
Frequency: 50-60Hz Power Factor: >0.97
Luminous Efficiency: 110lm/w, Or 130lm/w Viewing Angle: 130*70degree
LED Quantity: 30pcs Chip Brand: BridgeLux 45MIL
CRI: >70Ra Life: >50000hours
Modular Quantity: 1 Piece Body Material: Aluminum
Warranty: 3 To 5 Years
High Light:

LED Highway Lighting

,

LED Sidewalk Lighting



IP65 Waterproof  LED Roadway Lighting 30w for Streets

Main Advantages:

  • Environmental friendly, not including any toxic ingredients, all parts can be recycled;
  • Longer service life, up to 50000hours, much longer than conventinal source; the main parts of this 60w led roadway lighting is aluminum, and can not be damaged even after 10 years working; in case when the driver or led stopped working, the fixture can be still used, just need to replace the led or power supply;
  • Wide operating voltage input of 85-265V AC, 50/60Hz, can be used freely worldwide; mean while, this item can be made DC12V, or DC24V, used for solar panel;
  • Color rendering index (CRI)  over 70Ra; 80Ra can be also made; but, it is not necessary to make high color redering index for roadway light, since high CRI led will have less lumen output;
  • Pre-wired, easy installation, suitable for pole size of less than 62mm;
  • Warm white(2700k-3200k), pure white(4000-4500k) and cool white(6000-7000k) available, other color temperature is also available.


Main Technical Index of this LED Roadway Lighting 30w:



Model

SW-SL403-W30

LED Qty

30pcs

LED Type

BridgeLux 45MIL

LED Power

30W

LED Color

Warm white, Pure white, Cool white

Input Voltage

AC85V~265V, DC12V, DC24V

Frequency Range

50Hz – 60Hz

Power Factor

>0.97

Power Efficiency

>91%

Luminous Efficiency

110lm/w, 130lm/w

Color Temperature

WW

2700K-3200K

PW

4000K-4500K

CW

6000K-7000K

CRI

>75Ra or 80Ra available

Lamp Efficiency

>89%

Beam Angle

130°*70°

Working Temperature

-30℃ ~ +55℃

Storage Temperature

-30℃ ~ +65℃(25℃best)

Life span

>50000hrs

Certification

CE, RoHS

IP Grade

IP65

Housing Color

Grey

Gross Weight



Dimension



These watts are available with this model:

MODEL

LED QTY(multi-chip)

Input Power

Input Voltage

 PF

Luminous Flux

SW-SL403-W30

30pcs(bridgelux)

30W

Meanwell AC85-265V

>0.98

3000-3300LM

SW-SL403-W60

60pcs(bridgelux)

60W

Meanwell AC90-295V

>0.98

6000-6600LM

SW-SL403-W90

90pcs(bridgelux)

90W

Meanwell AC90-295V

>0.98

9000-9900LM

SW-SL403-W120

120pcs(bridgelux)

120W

Meanwell AC90-295V

>0.98

12000-13200LM

SW-SL403-W150

150pcs(bridgelux)

150W

Meanwell AC90-295V

>0.98

15000-16500LM

SW-SL403-W180

180pcs(bridgelux)

180W

Meanwell AC90-295V

>0.98

18000-19800LM

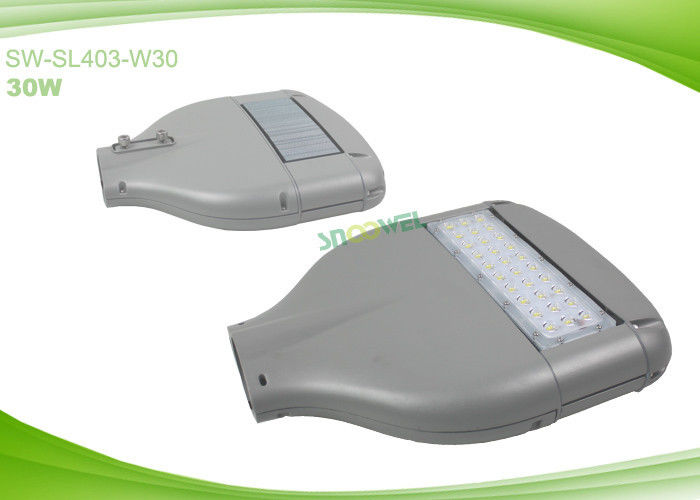

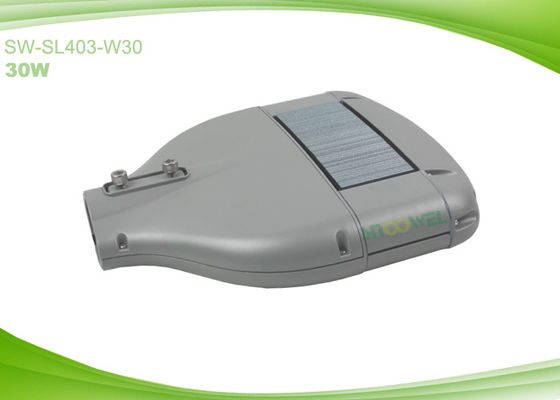

Actual Picture of this LED Roadway Lighting 30w:

Waterproof  IP65 Solar LED Roadway Lighting AC85 - 265V Warm / Pure / Cool white 0



Abouts us:

1. 10 years experience in exporting and manufacturing outdoor & indoor led lightings;
2. ISO factory with over 400 well-trained staffs;
3. Rich experience in public lighting projects, especially outdoor led lighting projects;
4. Main products: led street lights, led high bay lights, led tunnel lights, led floodlights, led tubes, led panel lights,etc.

5. Tell me your requirement, our team can work out a best solution for you
