High Frequency Online Double Conversion UPS With Generator Supportable

China High Frequency Online Double Conversion UPS With Generator Supportable supplier
High Frequency Online Double Conversion UPS With Generator Supportable supplier High Frequency Online Double Conversion UPS With Generator Supportable supplier

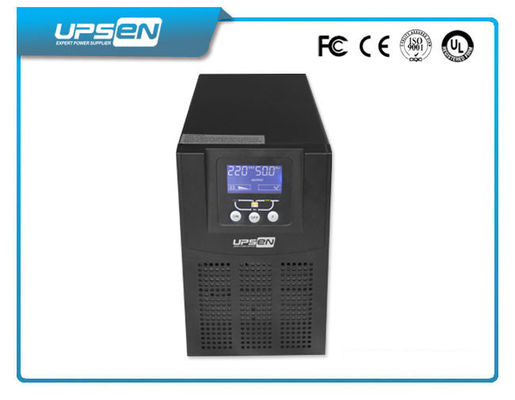

Large Image :  High Frequency Online Double Conversion UPS With Generator Supportable

Product Details:

Place of Origin: CHINA
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Queen Star Series

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Cartons & Wooden Pallet
Delivery Time: 7-15 Days
Payment Terms: L/C, T/T, MoneyGram
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Protection: Short Circuit Type: Online Ups
Colar: Black Power Factor: 0.8
Phase: Single

High Frequency Online Double Conversion UPS With Generator Supportable

Model: High Frequency Online UPS Queen Star Series 1K-3Kva (1ph in/1ph out)

Key Features:
1: High reliability DSP control
2: Environment Friendly And eco-designed
3: Active input power factor correction (PFC)
4: Single module LCD display
5: Intelligent RS232 communication port
6: Active Load Management
7: Advanced no-master-slave parallel technology (optional)
8: The load power factor is 0.8
9: Generator Supportable
10: Freely set the charge current

Applications:
Aeronaoutics,Astronautics,Electronic,Telecom,Army Technology,Securities System,Sensitive Electronic Equipment,Wind Power System,Production Equipment,Military etc.

Technical Specification

MODEL Q1K Q1KL Q2K Q2KL Q3K Q3KL
Rated capacity 1KVA/800W 2KVA/1600W 3KVA/2400W
Input Voltage                                   115 - 300Vac
  Frequency                                40-60Hz / 50-70Hz
Power factor                                          0.99
Output Voltage                                220/230Vac(1±2%)
  Frequency Synchronize with utility power(utility mode); 50 / 60Hz ± 0.2Hz(battery mode)
On-load factor                                          0.8
Overload rating                                 125% overload,1min
Battery Type Valve-control lead acid maintenance-free battery
Back up time > 11min        (half load) External >11min        (half load) External >11min        (half load) External
Rated voltage 36V 72V 96V
Transfer time                                           0
Operating environment Humidity: 20%-90%, Temperature:0oC-40oC
Size (WxDxH)mm 350 x 144 x 229 424 x 190 x 328 424 x 190 x 328
Net Weight(kg) 11.5 5.7 22.2 10 26.3 10
*Specification is subject to change without further notice
