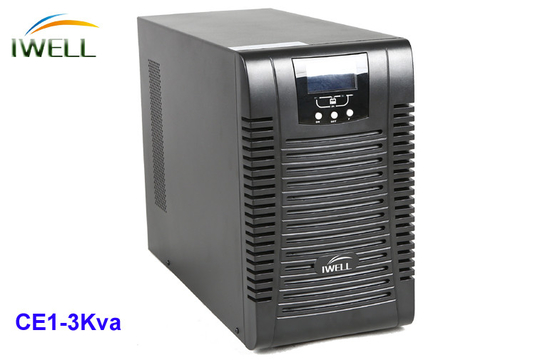

220V / 120V 3 kva Online UPS Uninterruptible Power Supply Systems With RS232 USB SNMP Port

220V / 120V 3 kva Online UPS Uninterruptible Power Supply Systems With RS232 USB SNMP Port
220V / 120V 3 kva Online UPS Uninterruptible Power Supply Systems With RS232 USB SNMP Port 220V / 120V 3 kva Online UPS Uninterruptible Power Supply Systems With RS232 USB SNMP Port 220V / 120V 3 kva Online UPS Uninterruptible Power Supply Systems With RS232 USB SNMP Port 220V / 120V 3 kva Online UPS Uninterruptible Power Supply Systems With RS232 USB SNMP Port

Large Image :  220V / 120V 3 kva Online UPS Uninterruptible Power Supply Systems With RS232 USB SNMP Port

Product Details:
Place of Origin: China
Brand Name: IWELL
Certification: CE/FCC/ISO9001
Model Number: CE3K , CE3KS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation

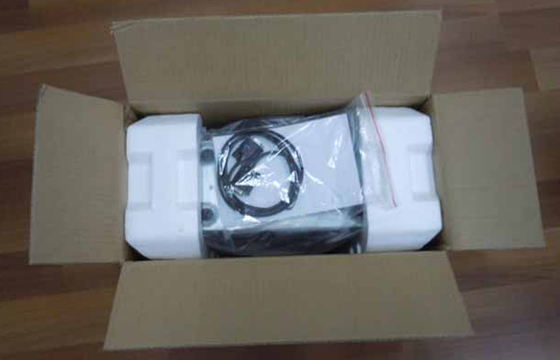

Packaging Details: Inner box + shipping carton
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, L/C, D/P
Supply Ability: 30,000pcs per month
Detailed Product Description
Phase: Single Phase Input/Output Voltage: 220VAC/ 120Vac/ 110Vac/ 100Vac/230Vac
Capacity: 3Kva , 3000va Frequency: 50 / 60Hz
Battery: Lead Acid Battery Application: Instrumentation
Wave: Pure Sine Wave Display: LCD
High Light:

220V ups Power Supply

,

single phase ups systems



3Kva 3000va High Frequency Online UPS 220V/120Vac 50Hz 60Hz RS232 USB SNMP port



DSP Technology

Active input power factor correction (PFC)

Wide range of input voltage and frequency

Zero power switch delay

Active Load Management: This technology allows the UPS to be set up at a fixed 50Hz or 60Hz output, while it also can intelligently monitors power usage and automatically sheds and reconnects loads in order to prevent generator overload.

Sufficient Expansion Slots: The pre-allocated smart slots enable flexibility in choice of USB cards,AS400 cards, CMC monitoring cards, SNMP cards, RS485 cards and EMD environment monitoring cards.

The load power factor is 0.8



Model# CE3K CE3KS Comments
Input voltage
Rated voltage  220VAC
Phase Single phase with ground
Turn on voltage range (90±5~285±5)VAC
Bypass voltage range 80VAC~286VAC(default:80VAC~264VAC) Could be adjusted  by software.
Bypass low loss  80VAC~220VAC(default:80VAC)
Bypass low comeback Low loss+10VAC
Bypass high loss 220VAC~286VAC(default:264VAC)
Bypass high comeback High loss -10VAC
Line low loss/comeback (90±5) VAC /(110±5) VAC load≤30% PF=0.7
(110±5)VAC/(125±5)VAC 30%<load≤60%
(120±5) VAC /(135±5) VAC 60%<load≤70%
(140±5) VAC /(155±5) VAC 70%<load≤80%
(160±5) VAC /(170±5) VAC load>80%
(90±5) VAC /(110±5) VAC load≤30% PF=0.8
(110±5) VAC /(125±5) VAC 30%<load≤55%
(130±5) VAC /(145±5) VAC 56%<load≤65%
(150±5) VAC /(165±5) VAC 66%<load≤70%
(160±5) VAC /(175±5) VAC load>70%
Line high loss/comeback (300±5)VAC/(285±5)VAC 0%≤load<100%
Input frequency
Rated frequency 50Hz
Frequency low loss (40~49)±0.2Hz(default:46Hz) Could be adjusted by software.
Frequency low comeback Frequency low loss + 0.5Hz
Frequency high loss (51~60)±0.2Hz(default:54Hz)
Frequency high comeback Frequency high loss - 0.5Hz
Input power factor
Input power factor 0.99 220VAC,full R load
Generator Support generator input Generator rating≥2*UPS rating
Input current
Rated current 13.6A 220VAC,full RCD load
Input THDI ≤10% 220VAC,full RCD load, The mains THDI≤4%
Output protection
Rating protection 30A  AC fuse
Output power
VA/watt 3000VA/2100W~2400W Could be adjusted by software.
Rated voltage 220VAC Sine wave
Voltage range 200VAC/208VAC/220VAC/230VAC/240VAC Could be adjusted by software. 10% derating for 208VAC/200VAC.
Voltage regulation ±2%
Voltage distortion ≤7% Full RCD load
≤4% Full R load
DC offset ≤±200mV
Transient response ≤9% R load 0%~100%~0%
≤6% R load 20%~100%~20%
Transient recovery ≤60ms voltage recovery to 90% Full RCD load
Bypass output before turn-on Default:No Could be set by software.
Crest ration 3:01
Output frequency range
Normal mode 1,Same as input frequency(46Hz~54Hz)
2,50Hz(Input frequency>54Hz or Input frequency<46Hz)
Battery mode 50±0.2Hz Line frequency out of range
Slew rate <1Hz/s
Efficiency
Normal  mode >85%
Battery mode >83%
Overload
Normal mode/battery mode Overload warning only 100%±5%<load PF=0.7
60S,then transfer to bypass and alarm. 105%±5%<load≤125%±5%
30S,then transfer to bypass and alarm. 125%±5%<load≤150%±5%
300mS, then transfer to bypass and alarm.  load>150%±5%
Overload warning only 100%±5%<load PF=0.8
50S,then transfer to bypass and alarm. 105%±5%<load≤125%±5%
25S, then transfer to bypass and alarm. 125%±5%<load≤150%±5%
300mS,then transfer to bypass and alarm. load>150%±5%
Automatically retransfer Yes
Short protection
Normal/battery mode Cut off output within 5 cycles
Transfer time
Normal to battery mode 0ms
Battery to normal mode 0ms
Normal to bypass mode <4ms
Bypass to normal mode <4ms
Battery and charger
Battery
Rated voltage 96VDC According to the battery capacity and number
Type/Rating Sunshine/7AH/12V
Battery quantity 8 PCS
Backup time 6Min PF=0.7
  5Min PF=0.8
Protection
Low alarm voltage / comeback voltage (85.3V±2V)/ 86.9V±2V) (92V±2V)/ (93.6V±2V) 70%<load
(88V±2V)/ (89.6V±2V) 30%<load≤70%
(92V±2V)/ (93.6V±2V) load≤30%
Shutdown voltage 80V±2V 85V±2V 70%<load
84V±2V 30%<load≤70%
89.3V±2V load≤30%
DC protection 60A/Fuse
Overcharge protection 120V±2V
Over discharge protection 14 hour Could be set by software
Leakage current <150uA <500uA
Battery test
Battery weak Yes
Battery fault Yes
Charger
Output voltage (109.6±2)VDC
Charge time 5 hour to 90% capacity
Input voltage range 80VAC~300VAC
Charge current 1A 5.5A
Interface
Alarm silence Yes
DC power turn-on Yes
Automatical retransfer Yes
Audio alarm
Battery mode Beep/4s
Battery low/charger fault Beep/1s
UPS fault Continue beep
Overload Beep/1s
Bypass mode Beep/2Min
L/N inverse Beep/2Min
Communication
RS232 interface Yes
Intelligent slot Yes
Monitor software Appending with UPS
Cooling
Force air cooling

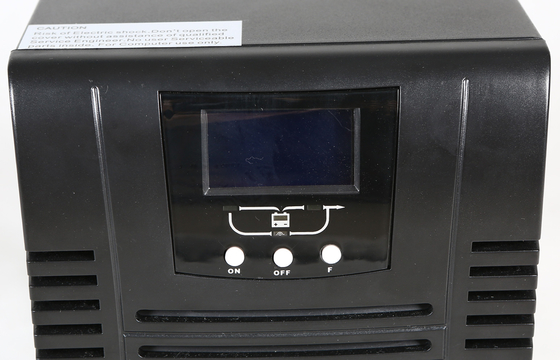

Display
LCD/LED displays UPS status
Environment
Work temperature 0℃~40℃
Altitude <1000m
Audible noise ≤50dB
Storage temperature -15℃~45℃
Work humidity 20%~95%
Standard
EMS
ESD IEC61000-4-2 Level4
RS IEC61000-4-3 Level3
EFT IEC61000-4-4 Level4
Surge IEC61000-4-5 Level4
EMI
Conducted EN55022 Class A
Radiated EN55022 Class A
Safety
Safety GB4943-2001/IEC62040-1
Transportation
Drop test GB-T4857-18
Vibration test B-WR1-129(GB-T14715-93)
Machinery features

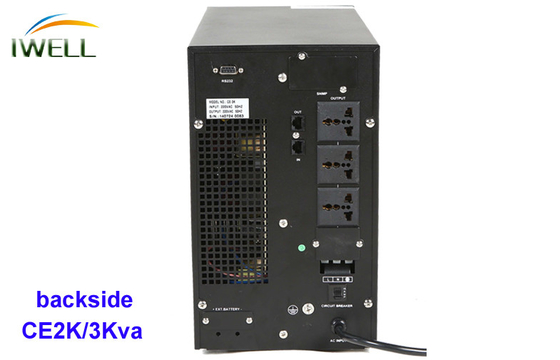

Connection
Inlet Non-detachable power supply cord with GB plug
Outlet GB socket
External battery slot No Yes
Optional functions
60Hz Support
Converter mode Support
ECO Optional
EPO Optional



220V / 120V 3 kva Online UPS Uninterruptible Power Supply Systems With RS232 USB SNMP Port 0
