Bank Rack Mountable UPS High Voltage Protection For Sensitive Electronic Equipment

Bank Rack Mountable UPS High Voltage Protection For Sensitive Electronic Equipment
Bank Rack Mountable UPS High Voltage Protection For Sensitive Electronic Equipment Bank Rack Mountable UPS High Voltage Protection For Sensitive Electronic Equipment

Large Image :  Bank Rack Mountable UPS High Voltage Protection For Sensitive Electronic Equipment

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE & ISO Certificate
Model Number: Rack Mount Online UPS
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: Negotiation
Packaging Details: Carton/Pallet
Delivery Time: 15days
Payment Terms: L/C, Western Union, T/T
Supply Ability: 5000 PCS/Mounth
Detailed Product Description
Phase: Single Phase Application: Industry
Protection: Short Circuit Type: On-line
Backup Time: Long-acting Backup
High Light:

uninterruptible power supply rack mount

,

energy saving UPS

19 Inch Online UPS with High Voltage Protection and Short Circuit Protection



Product Description

1.Rack Mount online UPS for north America
2.Rack Mount online UPS is 1k-10kVA with high quality
3.Rack Mount online UPS with good service
4.Rack Mount online UPS is 19 inch 2u 3u
UPS Applications
RM Series 1kVA~10kVA High Frequency Rack Mount Online UPS is specially designed for
Servers, data-center critical network devices, sensitive electronic equipment, telecom, bank,
Hospital, bureau, traffic, public security, ATM and so on.

UPS Key Features
1: True online double conversion technology with advanced Microprocessor Control
2: PWM Technology with IGBT
3: LED/LCD Indicators display Detailed Real-Time UPS Status and parameters.
4: Set Output Voltage, Frequency parameter and bypass function on the display.
5: Advanced MCU microprocessor control technology, ensure long life reliability.
6: Wide input voltage range, Zero transfer time
7: Rack mount 19"design 2U/3U Height to save space
8: Excellent Protection against over voltage, over load, over current, over charge and so on.
9: Input L and N lines reverse wiring detection, Auto start when AC back.
10: DC start function, Input PFC revise function.
11: Humanization bypass output, can be adjustable.
12: Smart RS232 communication with monitoring software
13: Intelligent slot available for AS-400 Dry contact and SNMP card Remote control
14: Strong antijamming capability
15: Available to work with generators.
16: Lightning, surge, short circuit, Network/fax/modem surge protection




Rack Mount Star Series RM1K-10K
Model RM1K RM2K RM3K RM1KL RM2KL RM3KL RM6KL RM10KL
Input Phase Single Phase with Ground
Nominal Voltage 110115//120Vac or 220/230/240Vac 220/230/240Vac
Voltage Range 60-138VAC  or 115 ~ 300VAC 176 ~ 276VAC
Frequency Range 46 ~ 54Hz(default), user adjustable within 40~60Hz 46 ~ 54Hz
Power Factor 0.97 0.98
Connection

IEC320-10A

inlet

IEC320-16A inlet

IEC320-10A

inlet

IEC320-16A inlet

Terminal

Block

Output Phase Single Phase
Voltage 110/115/120Vac or 220/230/240VAC ± 2%

110/115/

120Vac or 220/230/240VAC± 1%

Frequency 46~54Hz or 50Hz ± 0.2Hz (Line mode)

46~54Hz

(Line mode)

50Hz ± 0.2Hz ( Battery mode)

50Hz ± 0.05Hz

( Battery

mode)

Waveform Pure Sine Wave
Power Factor 0.7/0.8 Optional
Overload Capability 108%~150% for 30 sec., 150% for 300 ms

105%~130%

for 10min.,

130%

for 1 min.

Current Crest Ratio 3:1
Connections IEC320 -10A * 4 IEC320-10A and Terminal Block IEC320 -10A * 4 IEC320-10A and Terminal Block

IEC320-10A

* 4 and Terminal

Block

Bypass Automatic Transfer on overload and UPS failure
Before UPS Power-on Default "NO", user adjustable to "YES" Yes
Voltage Range  80~264VAC (Default), user adjustable within 80~286VAC

176 ~ 261

VAC

Transfer Time 0 ms; less than 4 ms from inverter to bypass and vice versa Zero
LED /LCD indicators

Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault

Audible Alarm Bypass, On battery mode, Battery low, Overload, Fault
Communications RS-232 Serial Interface
Intelligent Slot;
OPTIONS:  WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC)
Network Surge Protection RJ45 I/O port available for network or Fax/Modem
Environmental

Operating

Temperature

0 ~ 40°C
Operating Humidity 20 ~ 90% non-condensing
Main Unit Net Weight (Kg) 16.3 10.3 11.2 9.1 11.5 12.3 18.3 20.3

Dimensions

  (W x D x H) mm

482 x 420 x 88 (2U) 482 x 420 x 88 (2U)  or               (3U Internal Batteries) 482 x 420 x 88 (2U)

482.6 x

600 x 130

(3U)

Battery Pack Type Internal Batteries External Battery Pack
Nominal DC Voltage 36VDC 72VDC 96VDC 36VDC 72VDC 96VDC 240VDC
Battery Numbers & Capacity 3Pcs *12V7.2Ah 6Pcs *12V7.2Ah 8Pcs *12V7.2Ah

Depending on the capacity of

external battery packs

Backup Time

(Full load)

     5 min 7min      (with 1 BP) 5 min                  (with 1 BP)
Recharge Time 5hrs to 90% 5hrs to 90% 5hrs to 90%

Charging Current

(Max.)

1.0A 1.0A 1.0A 8A±1A 4.2A
Charging Voltage 41.1Vdc±0.6V 110Vdc±0.4V 41.1Vdc±0.6V 110Vdc±0.4V 274Vdc±1%V
Net Weight (Kg)     --- 25.3 25.3       ---       ---     ---                ---

Dimensions

  (W x D x H) mm

             --- 482 x 420 x88 (2U) 482 x 420 x88 (2U)       ---       ---      ---                ---
*Specification is subject to change without prior notice.

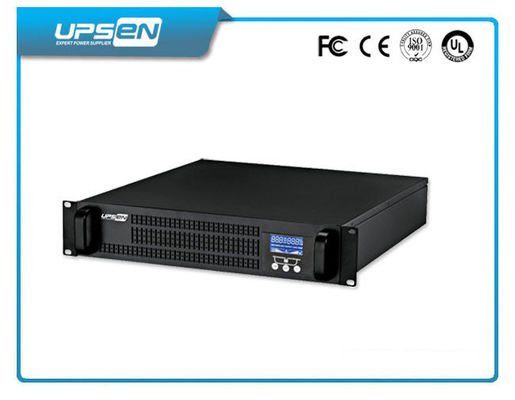

Bank Rack Mountable UPS High Voltage Protection For Sensitive Electronic Equipment 0

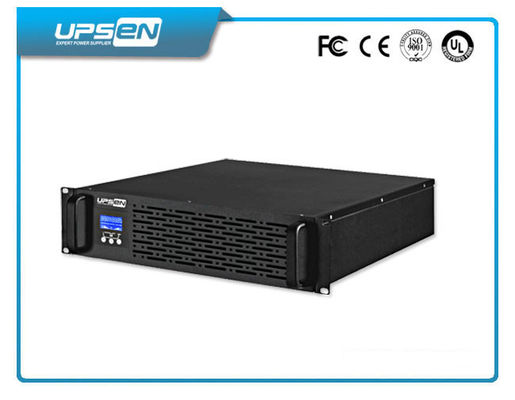

Bank Rack Mountable UPS High Voltage Protection For Sensitive Electronic Equipment 1
