220Vac 230Vac 240Vac Low Frequency Solar Power Inverter 8Kw 10Kw 12Kw Wth 48VDC

Certification
China CHINA UPS Electronics Co., Ltd. certification
China CHINA UPS Electronics Co., Ltd. certification
The company considerate after-sales service ,And try their best to meet the requirement of customers. We will be a long-term cooperation.

—— Albert

This is a fantastic sourcing platform, considerate service and good quality product.

—— philip

You always can give me the best plan ,and it lets my customer feel great,i hope we can have another chance to cooperation.

—— Tim

I'm Online Chat Now

220Vac 230Vac 240Vac Low Frequency Solar Power Inverter 8Kw 10Kw 12Kw Wth 48VDC

220Vac 230Vac 240Vac Low Frequency Solar Power Inverter 8Kw 10Kw 12Kw Wth 48VDC
220Vac 230Vac 240Vac Low Frequency Solar Power Inverter 8Kw 10Kw 12Kw Wth 48VDC 220Vac 230Vac 240Vac Low Frequency Solar Power Inverter 8Kw 10Kw 12Kw Wth 48VDC

Large Image :  220Vac 230Vac 240Vac Low Frequency Solar Power Inverter 8Kw 10Kw 12Kw Wth 48VDC

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Power Star Series 8-12Kw
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Detailed Product Description
Waveform: Pure Sinewave Output Power Factor: 1
Phase: Single Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: LCD/LED H.S. Code: 8504403090
High Light:

solar power inverter for home

,

all in one Inverter



220Vac 230Vac 240Vac Low Frequency Solar Power Inverter 8Kw 10Kw 12Kw Wth 48VDC





Model: Pure Sine Wave Inverter Charger Power Star Series 1KW-12KW (1ph in/1ph out)




8kw - 12Kw Key Features:



On inverter
● High overload ability
● Low battery voltage trip selectable, extracting max power from various batteries with different  protections
● Low quiescent current, selectable sensing cycle to reduce power consumption



On battery charge
● 3-step intelligent battery charging
● 8 preset battery type selector plus de-sulphation for totally flat batteries
● Powerful charge rate up to 100Amp ,selectable charging current
● PFC(Power Factor Correction) for charger, less power consumption than conventional units



On Transfer
● Delay before transfer, extra protections for loads under generator mode
● Input AC voltage range selectable, for different kinds of loads
● 8 ms typical transfer time, guarantees power continuity
● 30A/40A through current ability
● Output voltage regulation optional



On remote control & other features
● Ability to switch the unit on/off
● Ability to select/deselect power saver mode
● 17 alarms/warnings, informative for easier operation and trouble-shooting
● LCD status display available
● RS232 communication port optional



Application

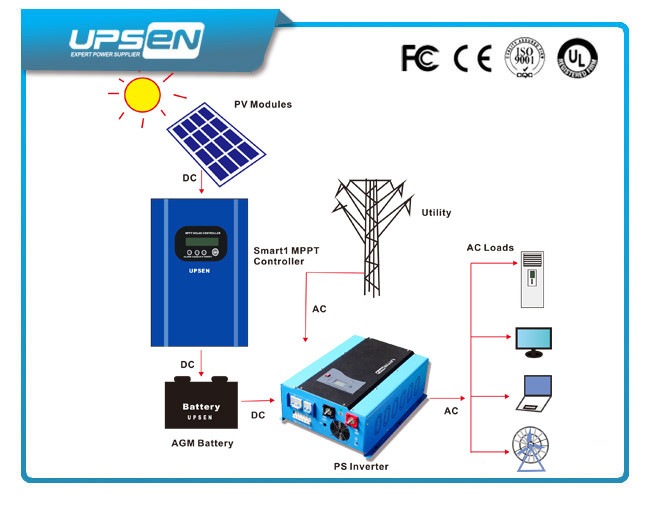

UPSEN Power Srar Inverter can be used for various home appliances, office equipment, solar power system, and other equipments which use single phase power.



Power Star Series
Model No. PS8K PS10K PS12K
Nominal Power 8KW 10KW 12KW
AC Input
Phase & Waveform Single Phase & Pure Sine Wave
Voltage 220/230/240VAC
Acceptable Voltage 154-273VAC
Line Low Transfer 154V
Line Low Return 164V
Line high Transfer 273V
Line high Return 263V
Frequency 50Hz or 60Hz (Auto sensing)
Line Low Transfer 40Hz
Line high Transfer 80Hz
AC Output
Phase & Waveform  Single Phase & Pure Sine Wave(bypass mode sync to input)
Voltage 220/230/240VAC (Same as Input on bypass mode)
Voltage Regulation ±10%rms(bypass mode sync to input)
Frequency 50Hz or 60Hz (Auto sensing)
Crest Power 3 times of rating power
Short Circuit Protection Yes,shutdown
Power Factor 0.9-1.0
DC Input
Battery Voltage 48V
Minimum Start Voltage 40V
Low Battery Alarm 44V
Low Battery Transfer 40V
High Voltage Alarm 64V
Max Charging Current 75A 85A 100A
Over Charge Voltage 62.8V
Transfer Efficiency
Line Mode >95%
Battery Mode >88%
power saver Available when the load is less than 75 Watts
Indicators
4-LED Display Charge, Line, Inverter, Fault
LCD Display Input/Output Voltage, Frequency, Battery Voltage, Load, Tempreture, Charge Current,Fault
Switch selector Saving Mode is on/off when push the switch forwards/backwards,   keeping it horisontal is turning the inverter off.
Audible Alarm Sounding when the heatsink's tem is over 105℃ and shutdown after 30 seconds.
Protections low battery,over charging,over temp,over load
Communications RS232/RJ11(Optional)
Enviromental
Operating Environment 0-40℃,0-90%RH(non-condensing)
Audible Noise <60dB
Physical
Net Weight(KG) 56 64 68
Dimension L*W*H(mm) 549*450*201mm   584*450*201mm
*Specification is subject to change without prior notice.



* Specification is subject to change without prior notice.
