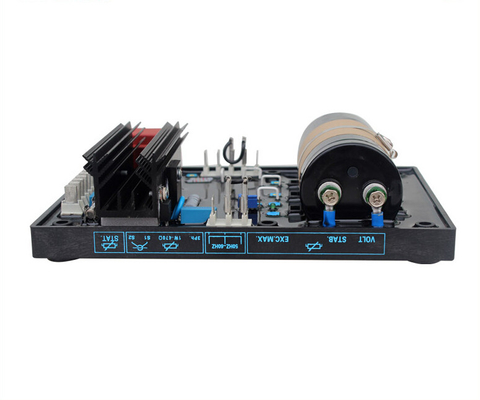

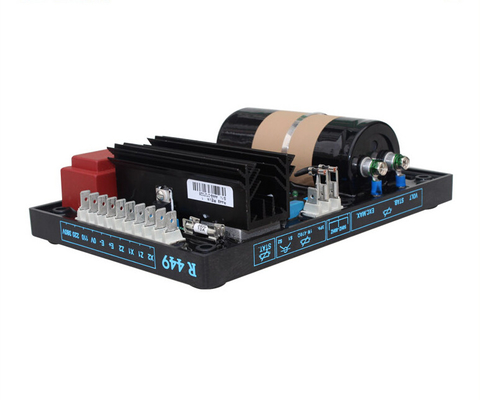

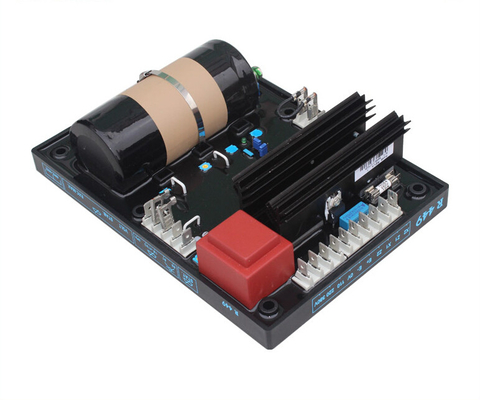

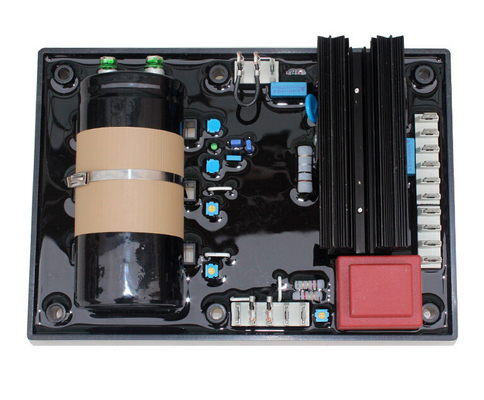

Leroy Somer Automatic Voltage Regulators Diesel Generator AVR R449
Brief Introduction:
The circuitry of the R449 Automatic Voltage Regulator (AVR) provides closed loop control of the alternator output voltage by regulating the exciter field current. The primary winding has a voltage in ratio to that of the alternator (characteristic shunt), the next has a voltage in proportion to the stator current (compound characteristic: booster effect). Which is powered by two auxiliary windings which are independent of the voltage equal circuit. The power supply voltage is rectified and filtered before being used by the AVR monitoring transistor. With PMG excitatioin, a permanent magnet generator (PMG) added to the alternator supplies the AVR with voltage which is free of the main alternator winding. This is built-in at the rear of the machine and connected to the R448 AVR, and the ST9 jumper must be disconnected.
| Sensing Input | Terminal 0-110V = 95~140V Terminal 0-220V = 170~260V Terminal 0-380V = 340~520V Frequency 50/60 Hz selectable |
|---|---|
| Power Input | Voltage 40~150 VAC 3 phase |
| Output Current | Max. 10A |
| Current Droop | Max. 4% @ P.F.=0.8 |
| Voltage Regulation | < ±0.5% (with 4% engine governing) |
| Voltage Build-up | Residual volts at AVR terminal > 5 VAC |
| Voltage Output | Max. 160 VDC @ 120 VAC |
| External Voltage Adjustment | ±10% @ 1 K Ohm 1 watt trimmer |
| Auxiliary Winding | 6~150 VAC (No load rms) |
| Response Time | 0.3~1 sec. @ ±20% voltage vibration |
| LAM Voltage Droop Rate | 10% & 15% selectable |
| Environment | Operating Temperature : -40~60 °C Storage Temperature : -40~85 °C Relative Humidity : Maximum 95% Vibration : 1.5G @ 5~30 Hz / 5.0G @ 30~500 Hz |
| AVR Controls Functions | VOLT : Voltage Adjustment STAB : Stability Adjustment V/HZ : UFRO Knee Point Set EXC.MAX : Excitation Current Limit STAT : Droop Adjustment |
| Dimensions | 203.0 (L) x 153.0 (W) x 60.5 (H) mm |
| Weight | 970g ±2% |
Warranty: 2 years
