Mega 2560 R3 for Funduino Mega 2560 R3 / ATMega2560 / ATMega16U2

China Mega 2560 R3 for Funduino Mega 2560 R3 / ATMega2560 / ATMega16U2 supplier
Mega 2560 R3 for Funduino Mega 2560 R3 / ATMega2560 / ATMega16U2 supplier Mega 2560 R3 for Funduino Mega 2560 R3 / ATMega2560 / ATMega16U2 supplier Mega 2560 R3 for Funduino Mega 2560 R3 / ATMega2560 / ATMega16U2 supplier Mega 2560 R3 for Funduino Mega 2560 R3 / ATMega2560 / ATMega16U2 supplier

Large Image :  Mega 2560 R3 for Funduino Mega 2560 R3 / ATMega2560 / ATMega16U2

Product Details:

Place of Origin: China
Brand Name: OEM
Model Number: Board for arduino

Payment & Shipping Terms:

Minimum Order Quantity: 1piece
Price: $10.12-11.5/piece
Packaging Details: standard package
Delivery Time: 3-5 work days
Payment Terms: Western Union, MoneyGram, T/T, L/C,Paypal
Supply Ability: 1000piece per week
Contact Now
Detailed Product Description
Controller: ATmega2560 Input Voltage (recommended): 7-12V
Digital IO Pins: 54 (of Which 15 Provide PWM Output) Analog Input Pins: 16
DC Current Per I/O Pin: 40mA SRAM: 8KB
Clock Speed: 16 MHz Operating Voltage (logic Level): 5V

Funduino Mega 2560 Overview(100% Compatible for Ardui no):

The Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital

input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Duemilanove or Diecimila.

The Mega 2560 is an update to the Mega, which it replaces.

The Mega2560 differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the ATmega16U2 (ATmega8U2 in the revision 1 and revision 2 boards) programmed as a USB-to-serial converter.
Revision 2 of the Mega2560 board has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.
Revision 3 of the board has the following new features:

1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the Due that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
Stronger RESET circuit.
Atmega 16U2 replace the 8U2.



Specifications:


Microcontroller ATmega2560
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 54 (of which 15 provide PWM output)
Analog Input Pins 16
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 256 KB of which 8 KB used by bootloader
SRAM 8 KB
EEPROM 4 KB
Clock Speed 16 MHz





Mega 2560 Power:

The Mega can be powered via the USB connection or with an external power supply. The power source is selected automatically.

External (non-USB) power can come either from an AC-to-DC adapter (wall-wart) or battery. The adapter can be connected by plugging a 2.1mm center-positive plug into the board's power jack. Leads from a battery can be inserted in the Gnd and Vin pin headers of the POWER connector.

The board can operate on an external supply of 6 to 20 volts. If supplied with less than 7V, however, the 5V pin may supply less than five volts and the board may be unstable. If using more than 12V, the voltage regulator may overheat and damage the board. The recommended range is 7 to 12 volts.

The power pins are as follows:

VIN. The input voltage to the board when it's using an external power source (as opposed to 5 volts from the USB connection or other regulated power source). You can supply voltage through this pin, or, if supplying voltage via the power jack, access it through this pin.
5V. This pin outputs a regulated 5V from the regulator on the board. The board can be supplied with power either from the DC power jack (7 - 12V), the USB connector (5V), or the VIN pin of the board (7-12V). Supplying voltage via the 5V or 3.3V pins bypasses the regulator, and can damage your board. We don't advise it.
3V3. A 3.3 volt supply generated by the on-board regulator. Maximum current draw is 50 mA.
GND. Ground pins.
IOREF. This pin on the board provides the voltage reference with which the microcontroller operates. A properly configured shield can read the IOREF pin voltage and select the appropriate power source or enable voltage translators on the outputs for working with the 5V or 3.3V.


The Product Image:

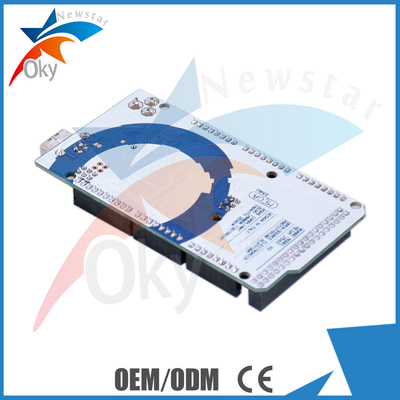

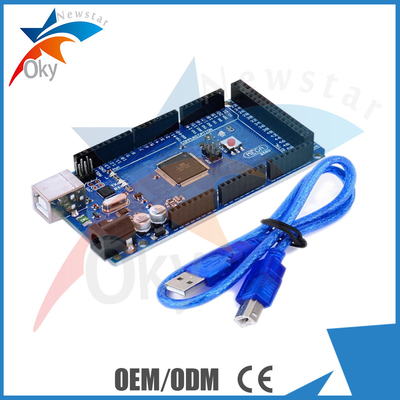

Mega 2560 R3 for Funduino Mega 2560 R3 / ATMega2560 / ATMega16U2

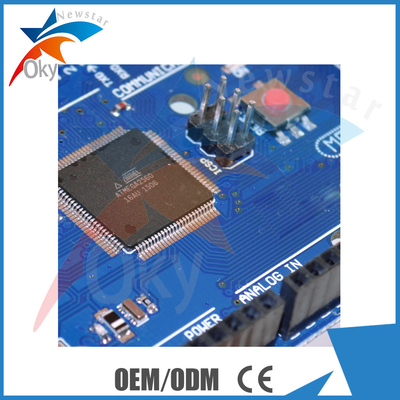

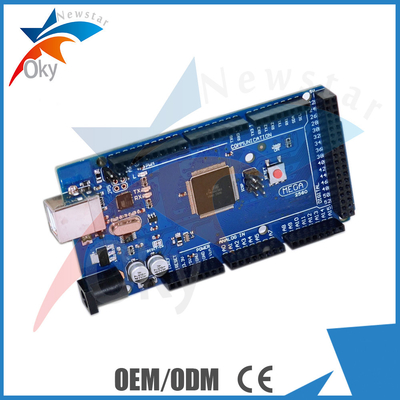

Mega 2560 R3 for Funduino Mega 2560 R3 / ATMega2560 / ATMega16U2
