80W AC DC Open Frame 110V 220V Power Supply Short Circuit Protection

China 80W AC DC Open Frame 110V 220V Power Supply Short Circuit Protection supplier
80W AC DC Open Frame 110V 220V Power Supply Short Circuit Protection supplier 80W AC DC Open Frame 110V 220V Power Supply Short Circuit Protection supplier 80W AC DC Open Frame 110V 220V Power Supply Short Circuit Protection supplier 80W AC DC Open Frame 110V 220V Power Supply Short Circuit Protection supplier

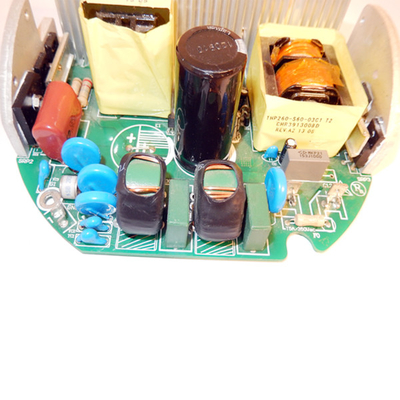

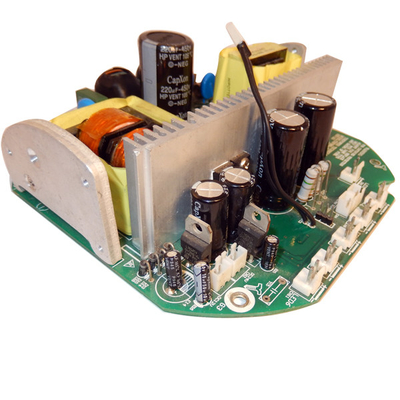

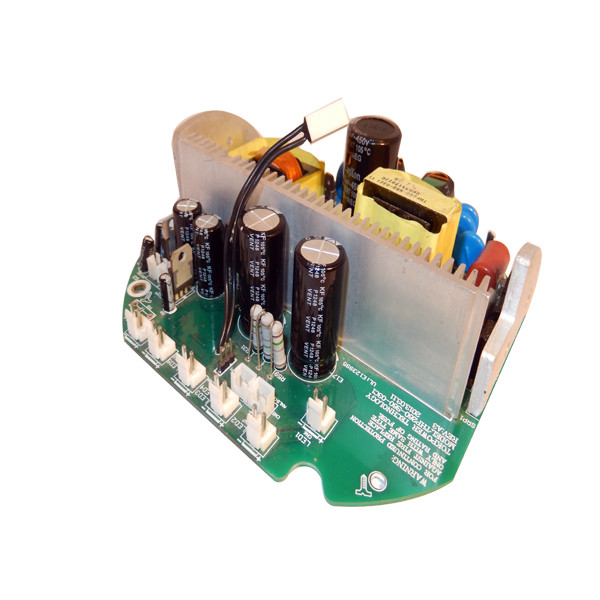

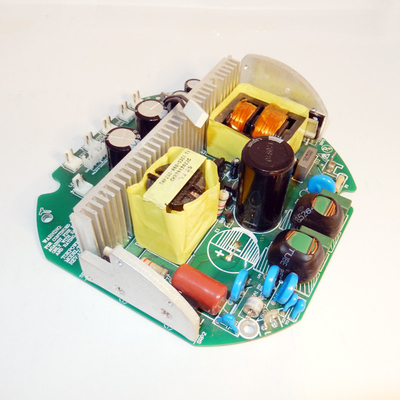

Large Image :  80W AC DC Open Frame 110V 220V Power Supply Short Circuit Protection

Product Details:

Place of Origin: China
Brand Name: Tokpower
Certification: CE
Model Number: TPF80

Payment & Shipping Terms:

Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: white Box
Payment Terms: T/T
Supply Ability: 10000 / M
Contact Now
Detailed Product Description
Model No:: TFP80 Shell Material: AL
Warranty: 24 Months Output Power: 30 - 400w
Input Voltage: 110 - 220V Connection Mode: Series Swithching Power Supply
Energy Transmission: One - Way Transmission

80W AC DC Open Frame 110V 220V Power Supply Short Circuit Protection





Application

1. Office lighting, artwork lighting, display case

2. Home lighting hotel, restaurant light and so on.

3. Commercial lighting such as: led ceiling light, down light, digital tube point sources,

   panel light, spotlight,wall washer,strip light.

4. other public lighting



Specification





Parameter For 5v12V24v

AC Input

Nominal Input Voltage

AC 100V~240V

Input Voltage Range

AC 95V~265V

Input Frequency

50/60Hz

DC Output

Output Voltage

12V24v5v

Output Current

1-10a

Output Power

100w

DC Connector Size

5.5*2.5/5.5*2.1/USB/2.5*0.7/3.5*1.35/customized

Line Regulation

2%

Load Regulation

5%

Ripple Noise

150 Mvp-p

Efficiency

>85%

Output Cable Standard

0.35mm2 Pure Copper

Output Cable Length

1m normally or customized requirement(1.2M,1.5M,1.8M,2M)

Environment

Operating Temperature

0°C ~40°C

Operating Humidity

5%~95%RH

Storage Temperature

-20°C ~85°C

Storage Humidity

5%~95%RH

Protection

Over Load Protection

Short Circuit Protection

Over Current Protection

Over Temperature Protection

Certificates

CE, ROHS, FCC, BS, CB, GS, SAA, UL, CCC, PSE, KC

Package

Inner Box

Normally white box or PE BAG or customized requirement

Outer Carton

Normally neutral standard carton or customized requirement

Warranty

Warranty

2 years

Manufacturing Process

Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT

→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In

→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping





Features:


A.Miniature size with complete protections and light weight

B.Most economical models with complete safety certificates

C.With new CMOS technology, lower products heat , more environmentally friendly and energy saving



Adwantages:



1.  High power density,high efficiency,long life and high reliability

2.  No Load power consumption<0.5W

3. 100% full load burn-in test

4.  Universal AC input range

5.  All using 105℃ long life electrolytic capacitors.

6. PCB soldering side with conformal coating

7. Suitable for critical applications

8. Output protections:OLP/OVP/SCP

9. CE RoHS ISO9001 approved

10. 2 years warranty

 Customized Logo printing

Cusomized  logo is free of charge for quantity over 500pcs


Customized packaging

Customized packaging is supported for quantity over 5000pcs


Packaging & Shipping

The 5 layers corrugated empty carton can bear 1 person pressure

you can rest assured about our fixed package  and we use 4 trips to reinforce our carton

the international standards package methods guaranteed our goods safety during transportation
