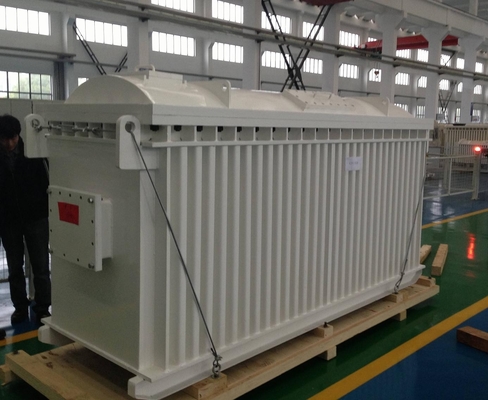

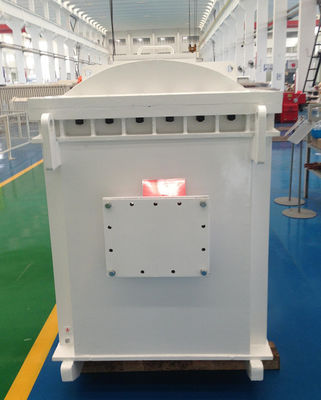

6 kva - 10 kva Silicon Steel Three Phase Dry Type Transformer With Thermal

6 kva - 10 kva Silicon Steel Three Phase Dry Type Transformer With Thermal
6 kva - 10 kva Silicon Steel Three Phase Dry Type Transformer With Thermal 6 kva - 10 kva Silicon Steel Three Phase Dry Type Transformer With Thermal

Large Image :  6 kva - 10 kva Silicon Steel Three Phase Dry Type Transformer With Thermal

Product Details:
Place of Origin: China
Brand Name: Lianli
Certification: MA, ISO9001,
Model Number: KBSG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 20~25 days
Payment Terms: T/T,, L/C, D/P, D/A
Supply Ability: 200 Sets per year
Detailed Product Description
Feature: Insulation|Low Noise|No Pollution Function: Explosion Proof|Flameproof|No Leakage|Thermal
Symbol: Yy0|Yyn0|Dyn11 Usage: Power
Voltage: 6/10 KV Frequency: 50/60HZ
Rated Capacity: 2500 KVA
High Light:

industrial transformers

,

3 phase transformer

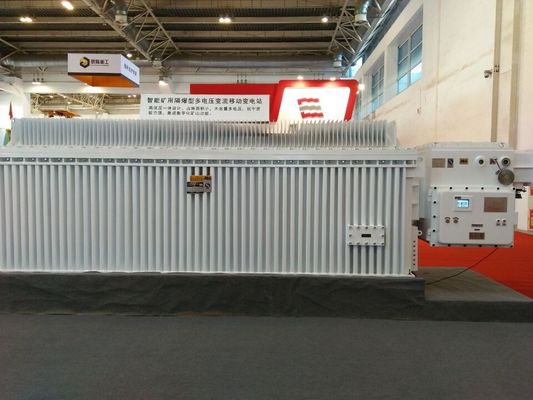

2500KVA Dry Type Flameproof Transformer  Mobile Transformer









Description:



2500KVA Mine use explosion proof  transformer suitable for underground mines containing methane mixture gas and having potential danger of coal dust explosion. The transformers were be worked as the distribution equipment for a large variety of electrical equipment, like pumping station, conveyor, mining machine and so on. The transformer suitable for used in coal mine, non ferrous metal mine and tunneling.





Product standard



GB8286-2005      Mine use explosion proof mobile substation

GB3836.1-2000    Electrical Apparatus for Explosive Gas Atmosphere—Part 1: General

GB3836.2-2000    Electrical Apparatus for Explosive Gas Atmosphere—Part 2: Flameproof enclosure “d”

GB3836.3-2000     Electrical Apparatus for Explosive Gas Atmosphere—Part 3: Increased safety “e”

JB4262-92        Rubber cable introduced for explosion proof electrical equipment





Applicable circumstances



The altitude is less than 1000M

The maximum temperature : 40 ℃,    The minimum temperature : -5 ℃,

Relative humidity less than 95%( 25 ℃)

Underground mines containing methane mixture gas and having potential danger of coal dust explosion

No strong bump and vibrate, the vertical surface less than 15 degrees

There is no the gas and steam that could corrosive meter or damage the insulation in the environment

No leakage

The waveform of power is similar to sinusoidal wave

Three-phase voltage approximate to symmetrical





Competitive Advantage:



1. The transformer is mine use explosion proof type and has excellent explosion proof performance and mechanical strength.

2. Special design for inner construction, in case of inner construction was loosened in the term of delivery.

3.  The transformer has the strong capable of withstand thermal shock. It be able to overload and has the ability to withstand short circuit, low loss, a small amount of partial discharge and good insulation.

4. It is insensitivity to temperature and dust.

5. All insulation materials doesn’t combustion-supporting, self-extinguishing, non-toxic, excellent performance of fireproof, the transformer owned the characteristics like no harmful gases, low noise and no pollution.

6. it’s easy to use and maintain

7. Adopt C level of Nomex paper-covered wire from DuPont USA, it owned such features as air insulation, cooling, non-pollution, long lifetime and can be recycled.

8. Adopt the high quality 30Q130, 27Q120 cold rolling silicon steel and oxygen free copper conductor, the actual total loss is lower than similar foreign products, energy conservation and noise reduction.





Specifications: Main technical parameters

Rated capacity

Primary rated voltage 6KV

       primary rated voltage 10KV

load loss

No-load loss

Short-circuit impedance

No-load current

Load loss

No-load loss

Short-circuit impedance

No-load current

500

3100

1500

4

1.5

3500

1750

4

1.5

630

3650

1800

4100

2000





Common Size and capacity



1. Model

Rated capacity

Phase

Frequency

cooing

Withstand voltage level

        Voltage

symbol

primary

taping

second

50

3

50

ANAN

H

6000,

10000

±5

693/ 400,

1200/ 693

Yy0 (d11)

100

125

160

200

250

315

400

500

630

800

1000

1250

1200, 3450

Yy0, Yyn0, Dyn11

1600

2000



C

2500

3150

4000

3450

Dyn11





Production Facility:

6 kva - 10 kva Silicon Steel Three Phase Dry Type Transformer With Thermal 06 kva - 10 kva Silicon Steel Three Phase Dry Type Transformer With Thermal 16 kva - 10 kva Silicon Steel Three Phase Dry Type Transformer With Thermal 2



6 kva - 10 kva Silicon Steel Three Phase Dry Type Transformer With Thermal 3

6 kva - 10 kva Silicon Steel Three Phase Dry Type Transformer With Thermal 4
