Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor

China Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor supplier
Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor supplier Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor supplier Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor supplier

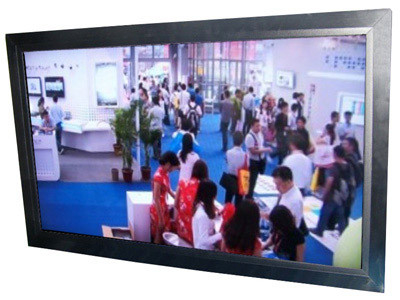

Large Image :  Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor

Product Details:

Place of Origin: China
Brand Name: Sumward
Certification: CE,ROHS, FCC,C-tick,BV,GMC
Model Number: LCD HD Monitor S1

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: negotiation
Packaging Details: Inner 4CM PE foam,Middle export carton box,Outer export wooden box
Delivery Time: 7-25 days
Supply Ability: 3000PCS/month
Contact Now
Detailed Product Description

Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor



Features



Dual infrared touch screen frame

USB or VGA interface available

Spill proof and Anti  Dust

True Flat designed to suit harsh environment

Best choice for space limited retail/hospitality settings

Easy for installation - One USB cable needed

Durable Die-casting Aluminum base design  for touch version



LCD Specification



LCD Size-21.6" , 16:9 LCD-Full New LCD screen from Samsung/LG/AU/CHIMEI

Screen Resolution:1920*1080

Colour-16.7m

Brightness-450cd

Contrast-300.1

Response Time-16-25ms

Interface-VGA (optional AV/TV/HDMI)

Power Supply built-in-AC 100V-240V



Screen Parameter



Transmittance

≥92%, 100% max (without Glass)

Outline Dimension

524(W±2.0)X343(D± 2.0)X8mm(H± 0.5)

Detection Form

Infrared rays interception detection form

Active Area

473mm(W)x296mm(D)

Resolution

1920(W)x1020(D)

Output Format

Coordinate Output

Optical Element Pace

5.97mm

Minimum Touch body Diameter

>5mm

Response Speed

16ms—25ms

Touch Accuracy

±1.5mm

Touch Limitation

No Limitation



Electricity



Scan Frequency

50Hz

USB1.1

Connector type

A type

Transmission speed

12Mbps

Signal

+5V, D-, D+, GND

Connector

USB A Port connector for cable

Temperature Range

Operating -40°C~70°C

Storage -40°C ~80°C

Humidity

Operating 0%-85%, non condensing

Storage 0%-95%, non condensing

Power Supply

DC 5V ± 5%, 270mA~290mA

Communication Interface

USB Port or RS232 (Plug & Play, No Drive)

Communication Distance

25Meter



Industry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitorIndustry CCTV LCD HD Monitor 22 inch AV / TV 50Hz , lcd computer monitor
