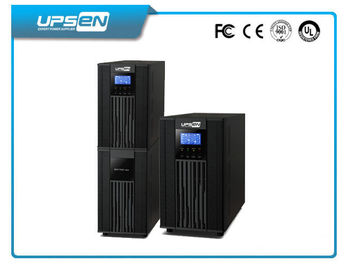

10Kva / 8Kw High Frequency Online UPS Long Backup Time for Photo Printing Machine

10Kva / 8Kw High Frequency Online UPS Long Backup Time for Photo Printing Machine
10Kva / 8Kw High Frequency Online UPS Long Backup Time for Photo Printing Machine

Large Image :  10Kva / 8Kw High Frequency Online UPS Long Backup Time for Photo Printing Machine

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Green Star Series 1-20Kva
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Cartons & Wooden Pallet
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Detailed Product Description
Type: Online Output Power Factor: 0.8
Phase: Single Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: Digital LCD Display H.S. Code: 8504402000
Highlight:

online ups suppliers

10Kva / 8Kw High Frequency Online UPS Long Backup Time for Photo Printing Machine





Application

Photo Printing Machine, Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom…



Key Features



1. Wide range of input voltage
The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.

2. Wide range of AVR(Automatic voltage regulation)
In the product’s input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.

3. Automatic self detection when UPS on(LED).
Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.

4. Silence function
In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.

5. Overload protection
In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.

6. Short circuit protection
When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.

7. The low current switch
This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.

8. Automatic charging
There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.

9. With a bypass output
Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.





Technical Specification



Technical Specification
GREEN STAR 6K/10K ONLINE UPS SPECIFICATION
MODEL G6K (L) G10K (L)
PHASE 1 phase in / 1 phase out
CAPACITY 6000 VA / 4800 W 10000 VA / 8000 W
INPUT
Nominal Voltage  208/220/230/240VAC
Voltage Range Low Line Loss  110 VAC ± 3% at 50% Load
176 VAC ± 3% at 100% Load
Low Line Comeback  120 VAC ± 3% at 50% Load
186 VAC ± 3% at 100% Load
High Line Loss  300 VAC ± 3%
High Line Comeback  290 VAC ± 3%
Frequency Range   46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz
Power Factor ≧ 0.99  @ 100% load
OUTPUT
Nominal Voltage  208/220/230/240VAC
AC Voltage Regulation  ± 1%
Frequency Range (Synchronized Range) 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz
Frequency Range (Batt. Mode) 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio 3:1 (max.)
Harmonic Distortion ≦ 3 % THD (Linear Load)
≦ 6 % THD (Non-linear Load)
Transfer Time Bypass to Inverter (Line mode) Zero
Inverter to Bypass (Line mode) Zero
Waveform (Batt. Mode) Pure Sinewave
EFFICIENCY
Line Mode 89% 90%
Battery Mode 88% 89%
BATTERY
Standard Model Battery Type 12 V / 7 AH 12 V / 9 AH
Numbers 16 16
Typical Recharge Time 9 hours recover to 90% capacity
Charging Current  Default:1.0 A ±  10%,           Max.:2.0A ±  10% Default:1.0 A ±  10%,          Max.:2.0A ±  10%
Float Charging Voltage  218.4 VDC ±  1%
Long-run Model Battery Type Depending on applications
Numbers 16-20** (adjustable)
Charging Current  Default:4.0 A ±  10%,  Max.:6.0A ±  10% Default:4.0 A ±  10%,           Max.:6.0A ±  10%
Float Charging Voltage  273 VDC ±  1% (based on 20 pcs batteries)
INDICATORS
LCD Panel UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ALARM
Battery Mode Sounding every 4 seconds
Overload Sounding twice every second
Fault Continuously sounding
PHYSICAL
Standard Model Dimension, D X W X H (mm) 369 x 190 x 688 442 x 190 x 688
Net Weight (kgs) 60 75
Long-run Model Dimension, D X W X H (mm) 369 x 190 x 318 442 x 190 x 318
Net Weight (kgs) 21 23
ENVIRONMENT
Operation Humidity 0-95 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 55dBA @ 1 Meter Less than 58dBA @ 1 Meter
MANAGEMENT
Smart RS-232/USB Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
Optional SNMP Power management from SNMP manager and web browser

*Derate capacity to 60% of capacity in CVCF mode and to 90% when the output voltage is adjusted to 208VAC.
*If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated
 one percent per 100m.
*Product specifications are subject to change without further notice


* Long-run model is only available in 200/208/220/230/240VAC systems.
