20 KVA SVC IP20 Indoor Single Phase Automatic Voltage Regulator 110V / 220V

20 KVA SVC IP20 Indoor Single Phase Automatic Voltage Regulator 110V / 220V
20 KVA SVC IP20 Indoor Single Phase Automatic Voltage Regulator 110V / 220V 20 KVA SVC IP20 Indoor Single Phase Automatic Voltage Regulator 110V / 220V 20 KVA SVC IP20 Indoor Single Phase Automatic Voltage Regulator 110V / 220V 20 KVA SVC IP20 Indoor Single Phase Automatic Voltage Regulator 110V / 220V

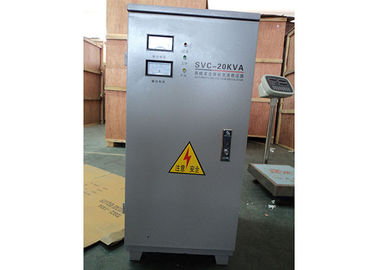

Large Image :  20 KVA SVC IP20 Indoor Single Phase Automatic Voltage Regulator 110V / 220V

Product Details:
Place of Origin: China
Brand Name: Modern
Certification: CE,ISO 9001
Model Number: SVC
Payment & Shipping Terms:
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
Highlight:

automatic voltage stabilizer

20KVA SVC 110V/220V IP20 Indoor Single Phase AC Power Stabilizer 50Hz/60Hz​​





Quick Detail:





Capacity 20KVA
Certificate CE
Model SVC
Phase Single Phase





Description:

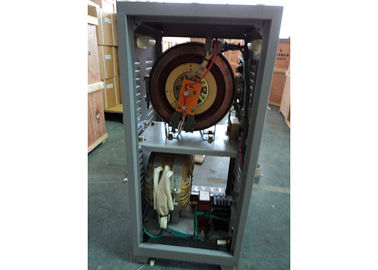

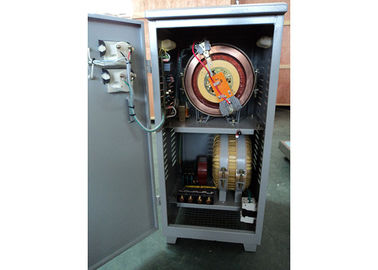

SVC Single-phase high accuracy full automatic AC voltage stabilizers is made of regulator, servo motor, automatic control circuit and so in, When the voltage of the network is not steady or the load varies, the automatic sampling control circuit makes a signal to drive the servomotor to adjust the position of the carbon brush of the regulator so as to have the output voltage regulated to the rating and to obtain the steady state. The series of stabilizers driven, of general type, the voltage stabilized sources which can be widely applied to any occasions requiring power to assure the normal operation of your power driven equipment.



Applications:



Computers ,test equipment, lighting systems, safety alarm systems, X-ray systems, communication systems, medical equipment, duplicators, stereo sound equipment, color film developing equipment.





Specifications:



Input Voltage

Single phase 220V±20%

The other input voltage range and rated voltage can be custom designed.

Output Voltage Single phase 220V±1-5%;110V±4%
Supply Frequency 50/60Hz
Insulation Resistance ≥2MΩ
Waveform Distortion nil
Insulation Class H class
Efficiency >95%
Overload Rating Withstand 200% overload in short time
Protection class IP20(indoor), outdoor type on request
Electrical safety CE equivalent
Operational Temperature -5 °C to +45 °C



Competitive Advantage:



Small volume, light weigh, undistorted waveform, high efficiency, reliable performance, and time-delay, over-voltage protection etc.
