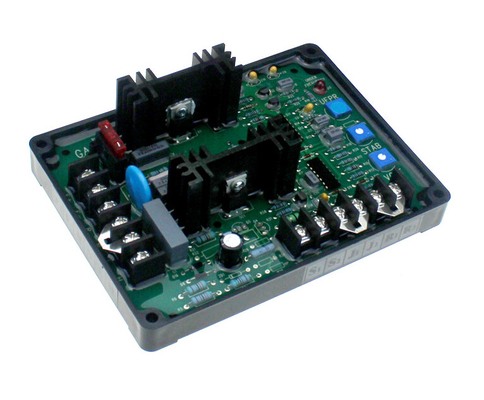

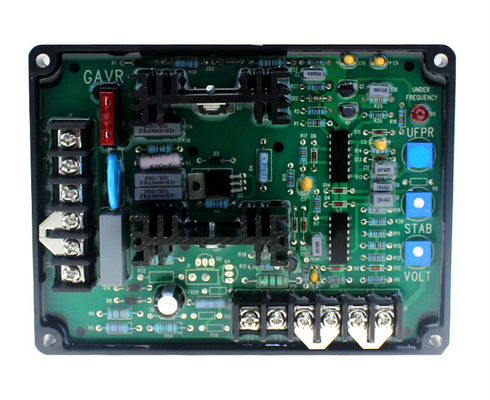

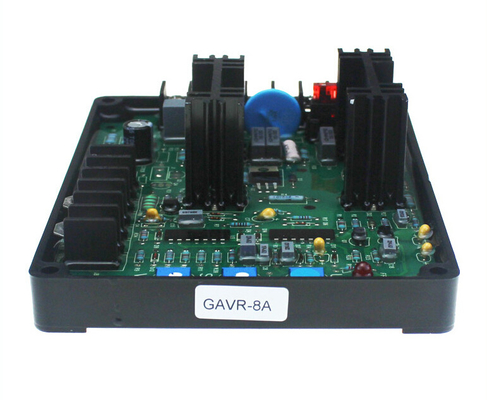

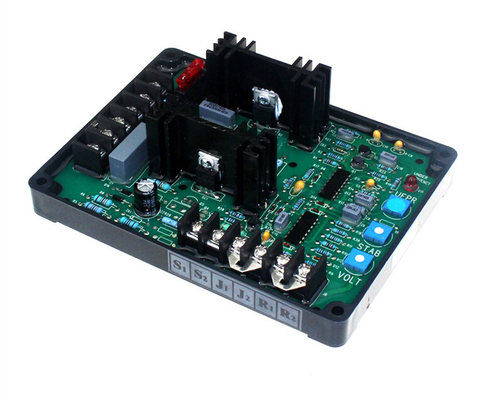

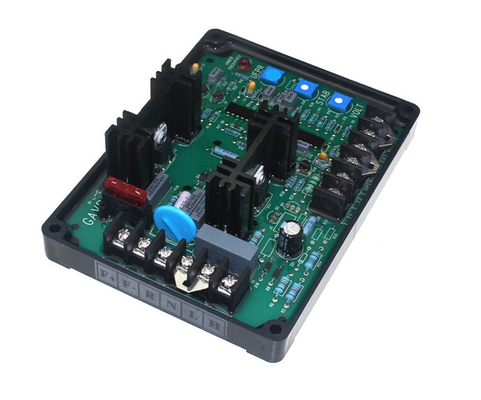

3 Phase Automatic Voltage Regulators AVR GAVR-8A Generator 2wire
GAVR-8A is Universal 8 Amp 1/2 Wave Self Excited Dip-Switch Programmable be Automatic Voltage Regulator, which is suitable for brushless generator.
*SensingInput Voltage 220/400VAC,1phase 2wire
*Power Input Voltage 180~240VAC, 1phase 2wire
*Output Voltage Max.90VDC@240VAC input
*Current Continuous 6A
*Intermittent 6A for 10SEE
*Resistance Min.10Ω Max 100Ω
*Voltage Build-up esidualvolts at AVR teminal>5VAC
*External Volts Adjustment +/-7%with 1KΩ 1watt trimmer
*Unit Power Dissipation Max.8Watt
*Under Frequency Protection 60Hz system presets knee point at 57Hz
*(Factory Settings) 50Hz system presets knee point at 47Hz
| GAVR-8A | ||
| Input | Sensing Voltage | 220/400VAC,1phase 2wire |
| Power Voltage | 180~240VAC, 1phase 2wire | |
| Voltage Jumper selectable | 95-132V ac or 190-264 Hz nominal | |
| Frequency | 50-60 Hz nominal | |
| Output | Voltage max | 90V dc at 207V ac input |
| Current continuous | 2A dc | |
| Current intermittent | 5A for 10 secs | |
| Resistance | 20 ohms minimum | |
| Voltage Build-up | esidualvolts at AVR teminal>5VAC | |
| External volts adjustment | +/-7%with 1KΩ 1watt trimmer | |
| Unit Power Dissipation | Max.8Watt | |
| Under Frequency Protection | 60Hz system presets knee point at 57Hz | |
| Factory Settings | 50Hz system presets knee point at 47Hz | |
| Body size | 15.7*11.5*6cm | |
2.GAVR-8A Technical specifiCAT-parts-partsion:
| Sensinginput | Voltage | 110/2201400VAC,1 phase 2wire | VoltageBuild-up | Residualvolts at AVR teminal>5VAC |
| Power Input | Voltage | 100-260VAC,1 phase2wire | External Vdits Adjustment | ±7%with 1k Ω1wait trimmer |
| Output | Voltage | Max.90VDC@240V ACinput | Sotf Start Ramp Time | 2sec. |
| Current | Continuous 3A | Unit Power Dissipation | Max.8Watt | |
| Intermittent 5A for 10SEE | EMI Suppression | Intermal Electromagnetic Interference Filtering | ||
| Resistance | Min.15Ω Max.100Ω | Thermal.Drift | 0.03%per°C chage in AVR ambient | |
| Under Frequency Protection | 60Hzsystem presets knee pointat 55Hz | |||
| (Factory Settings) | 50Hzsystem presets knee point at 45Hz | |||
| Volts | Regulation<±1%(with 4%engine goveming) | |||
