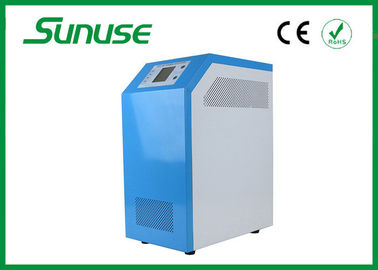

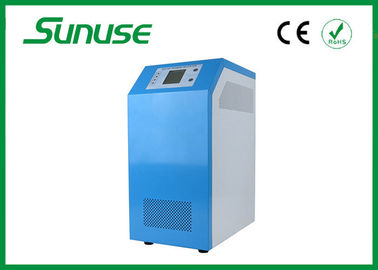

Multifunctional Inverter Solar Inverter With Built-in Controller For Pump 3500w With CE ROHS FCC
Quick Detail:
Battery charge Ups AVR voltage regulator
Strong overload ability
Sleep function
DC first or AC first set by user
ups
Specification:
|
Mode
|
5000VA
|
|
Rated Output Capacity
|
3500W
|
|
Peak Power
|
7000W
|
|
Battery Voltage(DC)
|
48V
|
|
PWM Solar Controller
|
Voltage
|
48V
|
|
Current
|
50A
|
|
PV Max Input Voltage
|
|
|
48V System:100V
|
|
|
Size W×D×H(mm)
|
420*260*605
|
|
Packing Size W×D×H(mm)
|
440*280*625
|
|
Net Weight (kg)
|
31
|
|
Gross Weight (kg)
|
33
|
|
General Parameter
|
|
Working Mode (Setting)
|
1
|
Utility first (AC first) battery standby mode
|
|
2
|
Sleep Mode,no utility,load’s power is over 5% of rated output power, Inverter start to work automatically
|
|
3
|
Battery first (DC first)utility standby mode
|
|
AC Input
|
Voltage
|
220V±35% or 110V+35%(Optional)
|
|
Frequency
|
50Hz±3% or 60Hz±3% (Optional)
|
|
AC Output
|
Voltage
|
220V±3% or 230V±3 or240V±3% or 100V±3% or 110V±3% (Optional)
|
|
Frequency
|
50Hz±0.5 or 60Hz±0.5 (Optional)
|
|
Utility charge
|
AC Charge Current
|
0~15A
|
|
Charge Time
|
Depend on battery capacity and quantity
|
|
Battery Protection
|
Automatic detection, Charge and discharge protection,Intelligent Management
|
|
PV Charge
|
Total Current of PV Input Should Be Less Than Rated Current of PWM solar controller
|
|
Display
|
Display Mode
|
LCD+LED
|
|
Display Information
|
Input voltage,output voltage,output frequency,battery capacity,Load condition,Status Information
|
|
Output Wave Type
|
Pure sine wave output,Total Harmonic Distortion THD≤3
|
|
Overload Ability
|
>120% 1 min,>130% 10s
|
|
Power Consumption
|
Sleep Mode
|
1~6W
|
|
Normal Mode
|
1~3A
|
|
Conversion Efficiency
|
80%~90%
|
|
Transfer Time
|
<5ms (AC to DC / DC to AC)
|
|
Protection
|
Overload output,short-circuit,high-voltage input,low-voltage input,overheat
|
|
Environment
|
Temperature
|
-10℃~50℃
|
|
Humidity
|
10%~90%
|
|
Altitude
|
≤4000m
|
Application
1) Off-grid solar power system
2) solar power system with utility power as a complementary
This design is composed of Solar Controller and ourSP series inverter. It is built-in solar charge controller, AC charge,
AVR voltage regulator, pure sine wave inverter; modularization design. The advantages are simple maintenance, stable
quality, high load carry ability and so on. Product is suitable for family, industrial solar and utility hybrid system and all off
grid power generation system.This series of inverter has the advantages of high conversion efficiency, low power consumption,
super load-carrying ability, and large charging current. Users can set it to sleep mode and normal working mode according to the AC loads.
Users also can set the output priority (AC first or DC first). They are best choice for solar, wind generation system, home, office standby UPS power supply and DC to AC projects, keep 24hours have power. In the above application fields, this series of inverter is suitable for all kinds of inductive loads, capacitive load and res istive load such as TV,
air conditioner, refrigerator and washing machine.
Feature
1) Easy to install. To configure a solar system, users just need to connect it with solar panels and batteries.
2) CPU management,Intelligent control,modular design
3) LEDs LCD display. LCD can display various parameters(such as the output voltage, frequency, working mode)
4) Multifunction design, AVR UPS function. Users don’t need to buy solar, controller, AC charger or stabilizer.
5) External battery connection, it’s convenient for users to expand use time and back-up power time
6) With super load-carrying ability and high load capacity, this series of inverters can not only drive resistance load; but also various kinds of inductive loads such as motor, air conditioner, electric drills, fluorescent lamp, gas lamp. It can drive almost any kinds of load
7) Low frequency pure sine wave circuit design, stable quality, easy to maintenance, low failure rate and long service life (under proper operation, it can last at least 5 years)
8) Perfect protection: low voltage protection, high voltage protection, over temperature protection, short-circuit protection, overload protection
9) CE / EMC / LVD/ RoHS /FCC approvals
10) 2 years warranty, life-long technical support
