10 / 100 / 1000M Single PoE Power Injector 802.3at With 48v DC Power

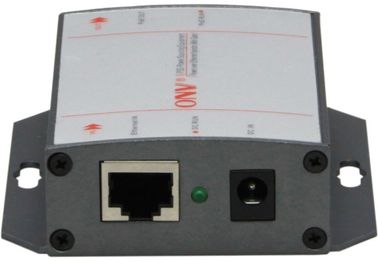

Large Image : 10 / 100 / 1000M Single PoE Power Injector 802.3at With 48v DC Power

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	ONV
Certification:	CE, FCC, RoHS, ISO
Model Number:	PSE 3101DCG-at
Product:	DC Single PoE injector
Power Supply:	25.5W (Max. 48VDC)
Rate:	10 / 100 / 1000M
Standards:	IEEE 802.3at
LED Indicator:	PWR
Interface:	RJ45 Port

Contact Now

Detailed Product Description

Highlight:	power injector poe

10 / 100 / 1000M Single PoE Power Injector 802.3at With 48v DC Power

Product features
Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,IEEE 802.3at standards
Compatible with PoE compliant PDs and PoE Splitters
Transmits electrical power along with data in one single cable
External 48V DC power supply
Supports Plug-and-Play for the devices, without any configuration
Elegant appearance with space-saving mini size

Thank you for choosing the PoE Injector. The Power over Ethernet (PoE) Injector is able to supply steady power to Powered Device (PD) or PoE Splitter over the Ethernet cable. The Ethernet equipment can work as a Power Sourcing Equipment (PSE) with the help of PoE Injector connection..
PoE technology allows the existing Ethernet infrastructure to transmit electrical power, along with data, to remote IP endpoints over the Ethernet cables, which can greatly save the cost of the external power cables. Your network can benefit from PoE technology for it will ensure the normal working status of your network while keep the existing Ethernet infrastructure secure.
*PoE: This technology describes a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network.
*PD: A device powered by a PSE and thus consumes energy. Examples include powering IP telephones, wireless LAN access points, network cameras, network hubs, embedded computers etc.
*PSE: A device (switch or hub for instance) that will provide power in a PoE setup.

Specifications:

Product	DC Single PoE injector
Interface	2 10/100/1000Mbps RJ45 Port
	AUTO Negotiation/AUTO MDI/MDIX
	18~32VDC POWER INPUT PORT(Best input voltage 12VDC)
Network Media	10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
	EIA/TIA-568 100Ω STP (Max 100m)
	100BASE-TX: UTP category 5, 5e cable (Max 100m)
	EIA/TIA-568 100Ω STP (Max 100m)
	1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Dimensions (W X D X H)	80.87625mm
LED Indicator	PWR
Power Supply	25.5W (Max. 48VDC)
Basic Function	Basic Function
	Delivers Power Up To 100 Meters
	Auto-Determine The Necessary Power Requirements
Certification	FCC, CE, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉)
	Storage Temperature: -40℃~70℃ (-40℉~158℉)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing

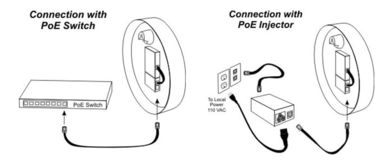

Hardware connection
You can use PoE Injector with PD or PoE Splitter to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc. The following steps will tell you how to connect the PoE Injector correctly.
1. Use a CAT5 UTP cable to connect port of Ethernet device (such as a switch, hub or router) to the Ethernet IN port.
2. Please connect the power adapter properly to a power socket with provided power cable, and then connect the other end of the power adapter to the DC IN port of the PoE injector .
3. Connect the POE OUT port of the PoE injector to a PD.
Now, the device can work normally with data and power.
