35 years Independent Regulation voltage regulator

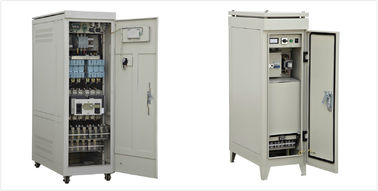

Large Image : 35 years Independent Regulation voltage regulator

Product Details:

Place of Origin:	China
Brand Name:	Modern
Certification:	CE,ISO9001,
Model Number:	SBW,DBW-Z02

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	FOB US$150-US$6000 /SET
Packaging Details:	Wooden packing or followr requests
Delivery Time:	30 DAYS
Supply Ability:	500 sets/ Month

Contact Now

Detailed Product Description

Input Voltage:	Single Phase 220V±20% The Other Input Voltage Range And Rated Voltage Can Be Custom Designed.	Output Voltage:	Single Phase 220V±1-5%, Three Phase: 380V±1-5%
Supply Frequency:	50/60Hz	Insulating Resistance:	≥2MΩ
Voltage Regulation Mode:	Independent Phase Regulation For Three Phase	Efficiency:	>98% On Full Load

35 years professional power solutions manufacturer to supply Independent regulation voltage regulator energy saving power stabilizer.

Description:

Modern's automatic voltage regulator provides continuous power conditioning and the broadest range of protection available. It guards against voltage fluctuations that can wreak havoc with your electrical load (equipment).

Features and benefits of power conditioner:

Wide voltage regulation range; 165-275V
15-100KVA, three phase 380/220V, other sizes up to 225KVA on request
Isolation transformer output on request
Individual regulation for each phase on request
High accuracy: ±1.5%
High efficiency :＞ 98%(without isolation transformer)
Continuously working, can withstand short time overload
Over voltage, under voltage, over current auto protection
Single-way output or multi-way output on request
Surge protector, EMI filter on request

Technical Parameter of power conditioner

Input Voltage	DBW	SBW
	220±15%,20%,30%,50%	380±15%,20%, 25%30%,50%
Output Voltage (Preset at 1.5%)	220Vac±1-5%	380Vac±1-5%
Efficiency	>98%
Precision	1-5%
Frequency	47-53Hz
Response Time	<0.5S/20V(Line Voltage)
Insulated Strength	2000V/1 minute without puncture	2500V/1 minute without puncture
Insulated Resistance	>2MΩ
Wave Deformation	Nil
Isolation transformer	Optional
Surge Protection	Optional

Model & Specifications

Phase	Model	Rated Capacity(KVA)	Dimension(H×W×D)mm	Cabinet(QTY)
Single Phase	DBW-10	10	1020×300×700	1
	DBW-15	15	1020×300×700	1
	DBW-20	20	1020×300×700	1
	DBW-30	30	1020×300×700	1
	DBW-50	50	1120×380×750	1
	DBW-80	80	1220×400×780	1
	DBW-100	100	1220×400×780	1
	DBW-150	150	1420×450×930	1
	DBW-200	200	1420×450×930	1
Three phase	SBW-F10	10	1020×300×700	1
	SBW-F20	20	1020×300×700	1
	SBW-F30	30	1020×300×700	1
	SBW-F50	50	1120×380×750	1
	SBW-F80	80	1220×400×780	1
	SBW-F100	100	1220×400×780	1
	SBW-F150	150	1420×450×930	1
	SBW-F200	200	1520×520×980	1
	SBW-F300	300	1720×600×1380	1
	SBW-F500	500	1860×720×1580	1
	SBW-F800	800	1860×900×1080	1
	SBW-F1000	1000	1860×900×1080	2
	SBW-F1500	1500	1860×900×1080	3
	SBW-F2000	2000	1860×900×1080	3
