Energy Saving 3 Phase Uninterruptible Power Supply 40KVA / 60KVA Online UPS

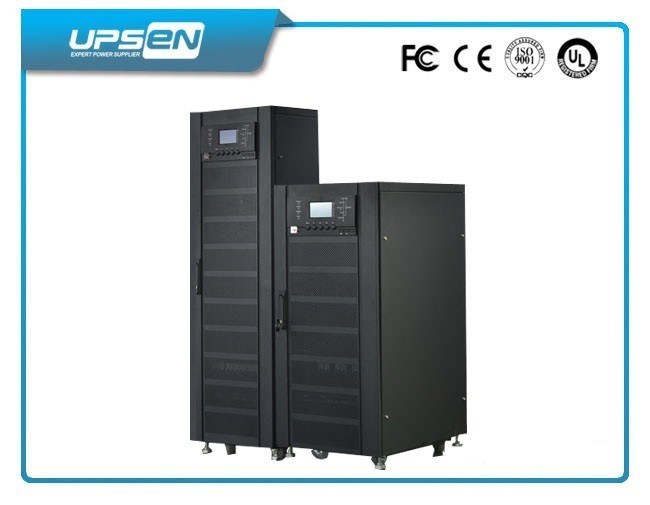

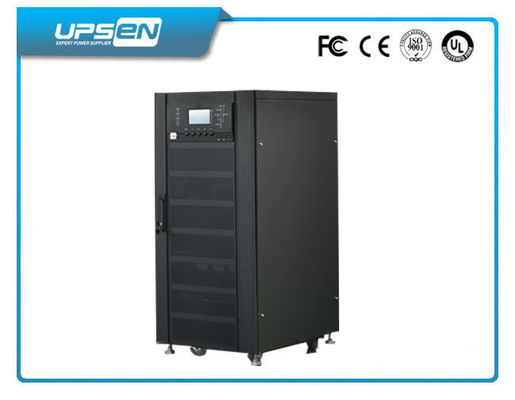

Large Image : Energy Saving 3 Phase Uninterruptible Power Supply 40KVA / 60KVA Online UPS

Product Details:

Place of Origin:	China
Brand Name:	UPSEN
Certification:	CE, ISO, RoHS
Model Number:	Energy Saving Star Series 10-80Kva

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	Cartons & Wooden Pallet
Delivery Time:	7-15 Days
Payment Terms:	T/T, LC, WU, Money Gram etc
Supply Ability:	50,000pcs/Month

Contact Now

Detailed Product Description

Type:	Online	Output Power Factor:	0.9
Phase:	Three Phase	Protection:	Over Load/Current/Voltage, Short Circuit Etc
Display:	Digital LCD Display	H.S. Code:	8504402000
Highlight:	online ups power supply

Energy Saving 3 Phase Uninterruptible Power Supply 40KVA / 60KVA Online UPS

Model: High Frequency Online UPS Energy Star Series 10K-80Kva (3ph in/3ph out)

Key Features

• 3 Phase Input/Output for both 190/208/220Vac and 380/400/415Vac

• Complete digital control technology

• High input power factor 0.99, green and energy-saving

• Dual AC input source supportable

• Similar modular design

• Intelligent battery management (ABM)

• True double-conversion
•  DSP technology guarantees high performance
•  Output power factor 0.9
•  Wide input voltage range (110-300 VAC)
•  Ative power factor correction in all phases
•  50Hz/60Hz frequency converter mode
• ECO mode operation for energy saving
•  Accepts dual-mains inputs
•  Emergency power off function (EPO)
•  Generator compatible
•  SNMP+USB+RS-232 multiple communications
• 3-stage extendable charging design for optimized battery performance
• Adjustable battery numbers
•  Maintenance bypass available

• Optional N+X parallel redundancy
• Optional isolation transformer offers full isolation and complete common mode noise rejection

Technical Specification

Model			ES3310	ES3320	ES3330	ES3340	ES3360	ES3380
Capacity/Rating Power			10KVA/ 9KW	20KVA/ 18KW	30KVA/ 27KW	40KVA/ 36KW	60KVA/ 54KW	80KVA/ 72KW
AC Input	Rated voltage		190/208/220Vac Or 380/400/415Vac (Line-Line)				380/400/415Vac (Line-Line)
	Input connection		3 phase +N+PE
	Power factor		Above 0.99
	THDI		Less 5%
	Voltage range		150-270Vac or 280-480Vac(Line voltage)
	Frequency		40-70Hz
	Bypass		150-270Vac or 280-480Vac(Line-Line)+/- 15%
Output	voltage precision		±0.5%
	Dynamical		Less 5% ( 0～100% load step)
	voltage transient
	THDU		THD less 3% (linear load), 5%(non-linear load)
	Power factor		0.9 (lag)
	Frequency tracking range		50/60Hz±3Hz
	Frequency precision		±0.05%(Battery mode) , ±3hz(Line mode)
OUTPUT	phase displacement		120±0.5°(Balance or imbalance load )
	Frequency tracking rate		Less 1Hz/s
	Overload capability		105% long time operation
			125%,transfer to bypass after 10 minutes
			Above 150%, transfer to bypass after 1s
	Bypass		Above 180%, long time operation
	overload		Above 180%, last for 1s
	Transfer time		0ms
System
System efficiency			Above 92%;98%(ECO) mode
Display			Touch screen LCD+LED
EMC			IEC62040-2
			IEC61000-4-2 (ESD)
			IEC61000-4-3 (RS)
			IEC6100-4-4 (EFT)
			IEC6100-4-5 (Surge)
Noise (1m)			Less 60dB
Insulating resistance			Above 2M (500VDC)
Insulating intensity			(input, output to PE) 2820Vdc, leakage current lower than 3.5mA, no flashover in 1min
Surge protection			Meet the requirement of IEC60664-1class,endure surge of 1.2/50us+8/20us higher than 6KV/3KA
IP class			IP30
Battery configuration
Installation(DC)			192/216/240Vdc or 384/432/480Vdc
Connection			Bottom cable connection in front
Charger			20% Power capacity(Adjustable)
Dimension (W×D×H)mm		Long-run model	500×717×798				720×900×1450
		Inbuilt batt.	500×717×1150		500×717×1550
Weight (Kg)		Long-run model	40	65	95	100	240	260
		Inbuilt batt.	125	175	255	295
			32/36/40pcs7AH/9AH or 72pcs7AH/9AH

Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products
