Product Details:
Payment & Shipping Terms:
|
| Phase: | Single Phase | Protection: | Overvoltage |
|---|---|---|---|
| Weight: | 5 - 13.5kg | Output Voltage: | 200/220/230/240V |
| Type: | On-line | Application: | Household Appliances |
| Color: | Black | Nominal Voltage: | 48VDC;110VDC;220VDC |
| Operating Range: | - 18% ~+25% | Voltage Range: | - 25% ~ +20% |
| Wave Form: | Pure Sine Wave | Norminal Output Voltage: | 110/120VAC, 220/230/240VAC |
| Output Frequency: | 50/60Hz ± 0.1% | Operating Temperature: | - 10 ~50℃ |
| Storage Temperature: | - 40 ~85 ℃ ℃ | ||
| High Light: | solar powered inverter,power inverter solar |
||

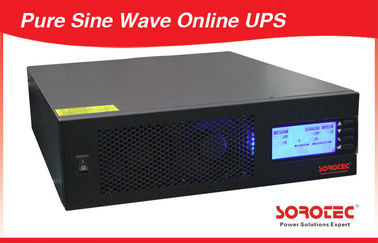

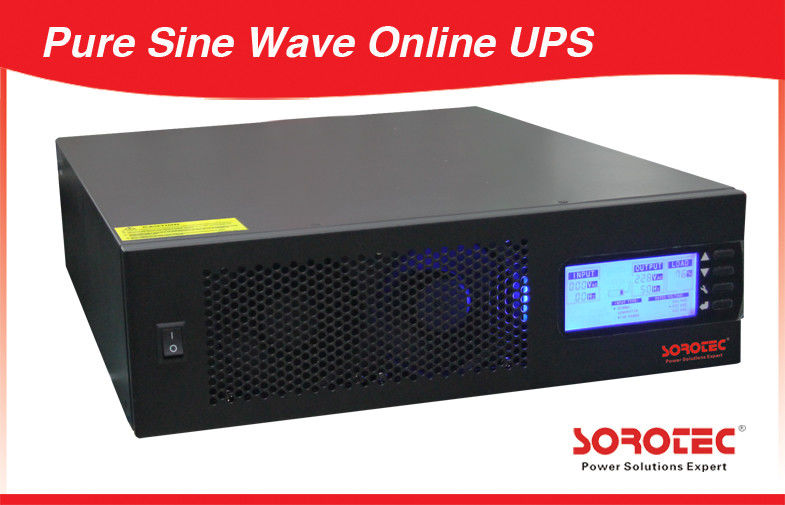

High Efficiency UPS Power Inverter Pure Sinewave Output
1.High frequency switching technology for compact size and light weight
2.Pure sinewave output
3. High efficient DC to AC conversion minimizing energy loss
4. Supporting home appliance/ office equipments/ Lighting Equipments / Moto-Based Equipment
5. Solar. wind. hydro, Generator
IG3117C Series Technical Specifications:
| MODEL | invermax 5kva | ||
| Input Voltage Waveform | Sinusoidal (utility or generator) | ||
| Rated Output Power | 5000VA/4200W | ||
| Nominal Input Voltage | 230Vac | ||
| Input Voltage Range | 170Vac to 280Vac (Normal); 90Vac to 280Vac (generator/Wide range) | ||
| Max AC Input Voltage | 300Vac rms | ||
|
50Hz / 60Hz (Auto detection) | ||
| Efficiency (Line Mode) | >95% | ||
| Transfer Switch Rating | 40A | ||
| Transfer Time (AC to DC) | 10ms (typical) 20ms (typical) | ||
| Transfer Time (DC to AC) |
10ms (typical) 20ms (typical) |
||
Inverter Mode Specification:
| MODEL |
InverMax 5kva |
|
| Output Voltage Waveform | Pure Sine Wave | |
| Power Factor | 0.84 | |
| Nominal Output Voltage(V) | 230Vac | |
| Output Frequency(Hz) | 50Hz / 60Hz ± 1Hz | |
| Output Voltage Regulation | ±10% rms | |
| Nominal Efficiency | >90% | |
| Over-Load Protection | fault after 5s@≥150% load; fault after 10s@110%~150% load | |
| Surge rating | 10000VA | |
| Capable of starting electric motor | 2.5HP | |
| Output Short Circuit Protection | Current limit (Fault after 4 cycles max) | |
Charger Mode Specification:
| MODEL | InverMax 5kva | |
| Nominal Input Voltage | 230Vac | |
| Input Voltage Range | 180V~ 270Vac(Normal range); 100V~ 270Vac(generator/wide range) |
|
| Nominal Output Voltage | According to the battery type | |
| Nominal Charge Current | 20A(95-175v,gen/wide,only); 35A(175-275v)@35A setting; 20A(175v-275v)@20A setting) |
|
| Charge Algorithm | Boost CC (constant current stage) → Boost CV (constant voltage stage) →Float (constant voltage stage) |
|
| Battery Type Setting | Flooded, AGM/Gel | |

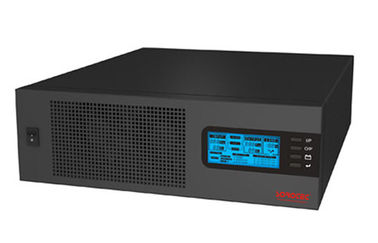

High Efficiency 95% Pure Sine Wave Solar Inverter There are one LCD and one Power Switch on front panel.
Front panel display:
