Solar power inverter for commercial and home
Model: Pure Sine Wave Inverter Charger Power Star Series 1KW-12KW (1ph in/1ph out)

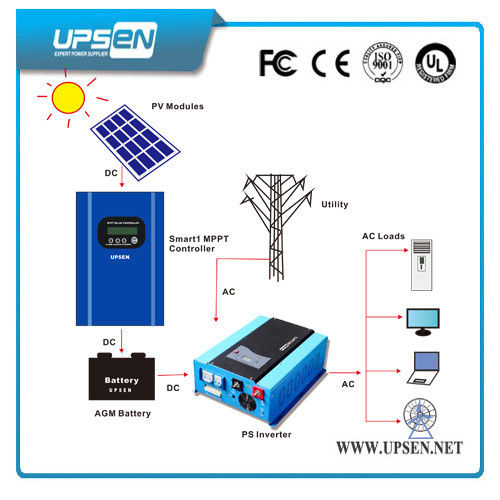

Inverter Application
UPSEN Power Star Series Inverter can be used for various home appliances, Telecom System,Network Rooms,commercial ,Communication equipment,Emergency power system,Automation systems etc.
etc.
Inverter Key Features
1:More than 90% conversion efficiency, smart soft start function
2: Smart, light,and portable,designed for home use
3: Selectable Grid power First or Solar Power First (battery power First )
4: Excellent loads with 3*rated start power
5: Pure sine wave output, available for sensitive loads
6: Automatically transfer between battery and line modes
7:LCD digital display show voltage, load and battery information in real time.
8: Built-in AC bypass relay, UPS function
9: Remote control function
10:Accept generator's energy output
11: Reverse connection(optional by hard connector)
12: Intelligent battery management with protection against over-charged and over-discharged etc
Technical Specification
Power Star Series | ||||||
Model No. | PS1000 | PS2000 | PS3000 | PS4000 | PS5000 | PS6000 |
Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
AC Input | ||||||
Waveform | Pure Sine Wave | |||||
Voltage | 120VAC/230VAC | |||||
Acceptable Voltage | 194-243VAC164-243VAC(wide mode) | |||||
Line Low Transfer | 85V±4%/184(154 wide mode±4%) | |||||
Line Low Return | 95V±4%/194(164 wide mode±4%) | |||||
Line high Transfer | 135V±4%/253±4% | |||||
Line high Return | 127V±4%/243±4% | |||||
Frequency | 50Hz or 60Hz (Auto sensing) | |||||
Line Low Transfer | 47Hz for 50Hz, 57Hz for 60Hz | |||||
Line high Transfer | 55Hz for 50Hz, 65Hz for 60Hz | |||||
AC Output | ||||||
Waveform | Pure Sine Wave(bypass mode sync to input) | |||||
Voltage | 120/220/230/240VAC(bypass mode sync to input) | |||||
Voltage Regulation | ±10%rms(bypass mode sync to input) | |||||
Frequency | 50Hz±0.3Hz(bypass mode sync to input) | |||||
Peak Power | 3 times of rating power | |||||
Short Circuit Protection | Yes,shutdown after 10ms | |||||
Power Factor | 0.9-1.0 | |||||
DC Input | ||||||
Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | |||
Minimum Start Voltage | 10V for 12V,20V for 24V,40V for 48V | |||||
Low Battery Alarm | 10.5V for 12V,21V for 24V,42V for 48V | |||||
Low Battery Transfer | 10V for 12V,20V for 24V,40V for 48V | |||||
High Voltage Alarm | 16V for 12V,32V for 24V,64V for 48V | |||||
Max Charging Current | 35A/70A | |||||
Over Charge Voltage | 15.7V for 12V,31.4V for 24V,62.8V for 48V | |||||
Transfer Efficiency | ||||||
Line Mode | >95% | |||||
Battery Mode | >88% | |||||
power saver | Available when the load is less than 25 Watts | |||||
Indicators | ||||||
7-LED Display | From the right to the left,LED1 line mode (green lighting),LED2 inverter mode | |||||
(green lighting),LED3 charging mode (yellow lighting),LED4 Fully charged | ||||||
(green lighting),LED5 over heat shutdown (red lighting) ,LED6 Overloaded | ||||||
shutdown (red lighting) ,LED7 Saving Mode (green lighting) | ||||||
3-LED Display | Charging Mode(green lighting),inverter mode(green lighting), Alarm(red lighting) | |||||
Switch selector | Saving Mode is on/off when push the switch forwards/backwards, keeping it horisontal is turning the inverter off. | |||||
Audible Alarm | Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds. | |||||
Protections | low battery,over charging,over temp,over load | |||||
Communications | RS-232/USB(custom-made) | |||||
Enviromental | ||||||
Operating Environment | 0-40ºC,0-90%RH(non-condensing) | |||||
Audible Noise | <60dB | |||||
Physical | ||||||
Net Weight(KG) | 18 | 20 | 22 | 35 | 38 | 40 |
Dimension L*W*H(mm) | 442*218*179mm | 598*218*179mm |
* Specification is subject to change without prior notice.
Competitive Advantages:
1: Three Years' warranty for sinewave inverter, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
