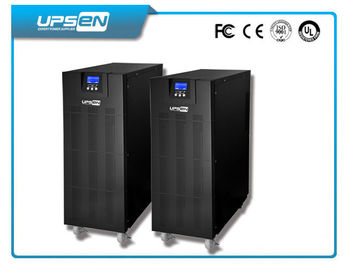

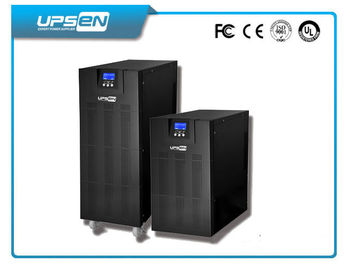

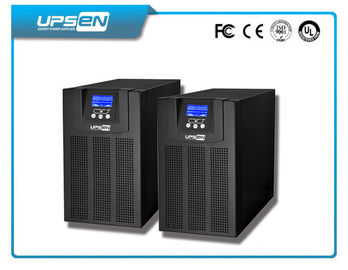

IGBT High Frequency Online UPS 1K- 20KVA With PFC Function and DSP Tech
Model: High Frequency Online UPS Queen Star Series 1-20 Kva (1ph in / 1ph out) (3ph in / 1ph out)
Quick Read:
1: UPS with Double Conversion Online UPS design
2: 220Vac / 230Vac / 240Vac or 380Vac / 400Vac / 415Vac Input, 220Vac / 230Vac / 240Vac output, 50/60Hz
3: Pure Sine Wave Output and 0.8 Output Power Factor
4: Protection against Overload, overcharge, high voltage, low votage, short circuit, power surges, power
sags, brownouts etc
Key Features:
●True online double conversion technology, Pure Sine Wave Output
● 220Vac / 230Vac / 240Vac or 380Vac / 400Vac / 415Vac Input, 220Vac / 230Vac / 240Vac output, 50/60Hz
● N + X Redundantcy Parallel Function for UPS 6-20Kva capacity
● 0.8 Output Power Factor, Digital LCD Screen, Zero transfer time
● DSP & IGBT Technology, compact design
● Active input power factor correction (PFC)
● Protection against Overload, overcharge, high voltage, low votage, short circuit, power surges, power
sags, brownouts etc
● Wide range of input voltage and frequency
● Active Load Management, cold start function
● Sufficient Expansion Slots for USB,AS400,CMC monitoring,SNMP,RS485 and EMD environmen monitoring
● Equipped with maintenance bypass switch
● Generator Supportable
● Sealed lead acid, maintenance free battery
Technical Specification
| MODEL |
Q1K |
Q1KL |
Q2K |
Q2KL |
Q3K |
Q3KL |
| Rated capacity |
1KVA/800W |
2KVA/1600W |
3KVA/2400W |
| Input |
Voltage |
115 - 300Vac |
| Frequency |
40-60Hz / 50-70Hz |
| Power factor |
0.99 |
| Output |
Voltage |
220/230Vac(1±2%) |
| Frequency |
Synchronize with utility power(utility mode);
50 / 60Hz ± 0.2Hz(battery mode)
|
| On-load factor |
0.8 |
| Overload rating |
125% overload,1min |
| Battery |
Type |
Valve-control lead acid maintenance-free battery |
| Back up time |
> 11min
(half load)
|
External |
> 11min
(half load)
|
External |
> 11min
(half load)
|
External |
| Rated voltage |
36V |
72V |
96V |
| Transfer time |
0 |
| Operating environment |
Humidity: 20%-90%, Temperature:0oC-40oC |
| Size (WxDxH)mm |
350 x 144 x 229 |
424 x 190 x 328 |
424 x 190 x 328 |
| Net Weight(kg) |
11.5 |
5.7 |
22.2 |
10 |
26.3 |
10 |
| Queen Star Series Q6K-20Kva |
|
|
|
| Model |
Q6K |
Q6KL |
Q10K |
Q10KL |
31Q10KL |
31Q15KL |
31Q20KL |
| Capacity |
6KVA/4800W |
10KVA/8000W |
15KVA/12KW |
20KVA/16KW |
| Input |
Nominal Voltage |
220/230/240Vac |
380/400/415Vac |
| Voltage Range |
176~276Vac (1P2W+G) |
304~478Vac (3P4W+G) |
| Current |
31A (max) |
50A (max) |
50A (max) |
75A (max) |
100A (max) |
| Frequency |
46~54Hz/56~64Hz |
| Power Factor |
≥0.99 |
| Output |
Voltage |
220/230/240± 2%Vac (1P2W+G) |
| Frequency |
50/60Hz(adjustable) 50/60Hz± 5% (Line mode)
50/60Hz ± 0.05Hz ( Battery mode) |
| Current |
27.3A |
45A |
68A |
91A |
| Power Factor |
0.8lag |
| Waveform |
Pure Sine Wave |
| Waveform Distortion |
Line load ＜2% |
Line load ＜3% |
| Back-up Time |
Full Load |
≥7′ |
Depends on external batteries bank's Capacity |
≥5′ |
Depends on external batteries bank's Capacity |
| Half Load |
≥20′ |
≥13′ |
| Battery Nominal Voltage |
192/240Vdc |
| Transfer Time |
0ms |
| Overload Capacity |
＞105% 1min, ＞120% 30s transfer to bypass, shut down in 1min |
| Communication |
SNMP,RS-232,USB+Intelligent Slot |
| Operating Environment |
Temperature |
0C~40℃ |
| Humidity |
15%~90% |
| Dimension |
Width (mm) |
260 |
260 |
260 |
260 |
260 |
| Depth (mm) |
560 |
533 |
560 |
533 |
560 |
| Height (mm) |
717 |
501 |
717 |
501 |
717 |
| Net Weight(Kg) |
68 |
18 |
70 |
20 |
28 |
30 |
30 |
| *Specification are subject to change without prior notice |
