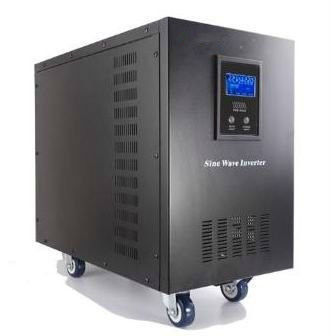

Line Interactive Pure Sine Wave UPS power supplies system 10000VA CE / RoHS

Line Interactive Pure Sine Wave UPS power supplies system 10000VA  CE / RoHS
Line Interactive Pure Sine Wave UPS power supplies system 10000VA  CE / RoHS

Large Image :  Line Interactive Pure Sine Wave UPS power supplies system 10000VA CE / RoHS

Product Details:
Place of Origin: China
Brand Name: LSG
Certification: CE,FCC,ISO9001
Model Number: LSG
Phase: Single Phase
Protection: overload/short-circuit/battery reverse polarity/overheat/high-voltage
Output Voltage: 220V±3% or 110V±3%
Type: Line Interactive
Application: solar/medical/military/telecommunications/monitoring/networking
Output Wave Type: Pure Sine wave
Function: Convert,Battery charger,UPS,LCD Display,AVR
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Get Latest Price
Packaging Details: 1pc/carton
Delivery Time: 30 working days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000pcs/month
Detailed Product Description
High Light:

pure sine wave online ups


double conversion ups

Line Interactive Pure Sine Wave UPS power supplies system 10000VA  CE / RoHS



I-P-XD Series Pure Sine Wave UPS 10000VA
1.CPU control,Auto voltage regulation,high overload capacity
2.Full power

 I-P-XD Series  Pure Sine Wave UPS 10000VA



1, Pure sine wave AC output;

2, Intelligent program control, CPU management;

3, With LCD display, users can know operation status of the whole system clearly;

4, With multi-functions, extra charger is not needed and electric appliances can be protected (AVR, UPS);

5, Wide applicable scope, can be wide used for all kinds of occasions, such as outdoor area without electricity,

 industrial area, household, office, supermarket, hospital, bank, solar system, wind energy systems etc;

6, With external battery connection, it’s convenient for users to expand use time and back Up power


7, With super load carrying ability and high load capacity, this inverter can not only carry resistance load;

but also can carry various kinds of inductive loads, such as motor, air conditioner, electric drills, fluorescent lamp, gas lamp, etc;

8, With high quality, low frequency circuit design, stable system, low failure rate and long service life,normally under

proper operation, this machine can last more than 3 years;

10, Approvals CE / EMC / LVD/ RoHS ;

11, Two years warranty, lifelong technical supports;


Technical parameters:

Model   I-P-XD-10000VA
Rated output capacity 7000W
Peak Power 14000W
Battery voltage(DC) 96V/192V(Optional)
AC Input Voltage(AC) 145V~275V or 75V~135V  (Optional)
Frequency 50Hz±5 or 60Hz±5  (Optional)
Output(AC) Voltage 220V±3% or 110V±3%
Frequency 50Hz±1% or  60Hz±1%(Optional)
Charge Battery Charge circuit 8~15A
Charge time 8~16 hours
Battery protection Automatic self-test. charge and discharge protection
Display  Mode LCD+LED
Information Input voltage,Output voltage, Frequency, Battery capacity,load capacity,state parameters
Output wave type Pure Sine wave (Waveform distortion≤3)
Overload capacity 120% 60s,130% 10s
Inverter efficiency Average 85%
Transfer time ≤5ms
Protection function Output overload protection,Output short-circuit protection, Battery reverse polarity protection, Input high-voltage protection ,'Input low-voltage protections,Overheat protection;
 Using environment Temperature -10°C~50°C
Humidity 10%~90%,Non-condensing
Altitude ≤4000m
Size W×D×H(mm) 465*245*465
Packing sizeW×D×H(mm) 500*250*500
Net weight (kg)  63
Gross weight (kg) 65
