Product Details:
Payment & Shipping Terms:
|
| High Light: | 12v solar charge controller,12v mppt charge controller |
||
|---|---|---|---|
·24V Solar charge controller
·MPPT technology
·Temperature compensation
·Sealed, Gel and Flooded battery option
·Widely used, automatically recognize day/night
·Peak conversion efficiency of 98%
·Diversified load control
·MPPT+SOC double intelligent charge control technology
·Low-loss MOSFET type transistor, PWM soft switching
·Full power output in ambient temperature up to 45 ℃
·RS232 and dry contact(optional function)
Electronic Protections:
·PV array short circuit
·Over discharging
·Over charging
·Overload
·Load short circuit
·PV reverse polarity
·Battery reverse polarity
·TVS lightning protection
Description:
solar charge controller that adopts the most advanced digital technique and operates fully automatically. The Pulse Width Modulation (PWM) battery charging can greatly increase the lifetime of battery.

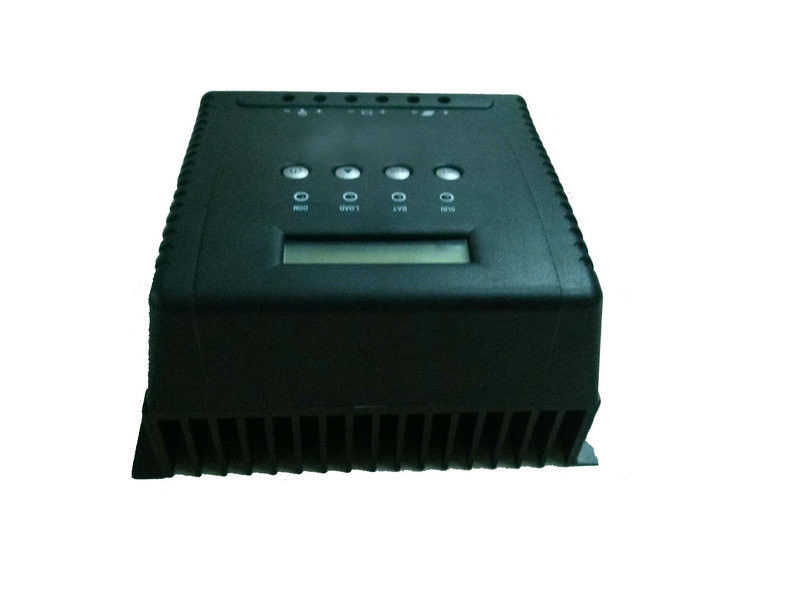

SC series MPPT solar controller is an advanced maximum power point
tracking (MPPT) battery charger for PV system. With MPPT+SOC charge control technology and low-loss Mosfet type transistors, the controller provides max. efficiency of 98% and significantly less power loss compared to other MPPT controllers.
Applications:
Specifications:
|
System voltage |
24V |
|
|
Rated Battery Current |
5A |
10A |
|
Rated Load Current |
5A |
10A |
|
PV panels configuration(suggestion)(Imp≤Rated Current) |
≤5A |
≤10A |
|
Battery capacity |
17Ah-400AH |
|
|
Max Efficiency |
＞98% |
|
|
Static Dissipation |
＜0.5%(system rated current) |
|
|
Solar battery port input voltage range |
0-50V |
|
|
Buck Charge Voltage |
29.2V±0.3V |
|
|
Float Charge Protection |
28.8V±0.3V |
|
|
Overcharge protection |
29.4V±0.3V |
|
|
Charging resume voltage |
26.4V±0.3V |
|
|
Undervoltage alarm |
22.4V±0.3V |
|
|
Over discharge protection |
21.6V±0.4V |
|
|
Over discharge resume start voltage |
26.4V±1% |
|
|
Discharge circuit voltage drop |
＜4% (system rated current) |
|
|
Overload short-circuit protection |
125%(60s)/150%(30s)/Short-circuit auto shut down |
|
|
Input overvoltage protection |
200%(rated voltage |
|
|
PV Reverse Polarity Connection Protection |
YES |
|
|
Control Mode |
Switch Control/MPPT |
|
|
Display |
LED |
|
|
Alarm Mode |
Sound(optional),light alarm |
|
|
Working Temperature |
-20°C ~ +45℃ |
|
|
Relative humidity |
0-95%(Non-condensing) |
|
|
Storage temperature |
-25°C ~ +85℃ |
|
|
Storage humidity |
≤85% |
|
|
Packing dimension(mm) |
136X100X35 |
|
Competitive Advantage:
·MPPT technology
·Temperature compensation
·Sealed, Gel and Flooded battery option
·Widely used, automatically recognize day/night
·Peak conversion efficiency of 98%
·Diversified load control
·MPPT+SOC double intelligent charge control technology
·Low-loss MOSFET type transistor, PWM soft switching
·Full power output in ambient temperature up to 45 ℃
·RS232 and dry contact(optional function)
