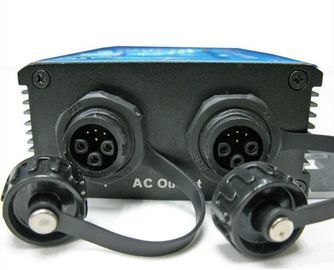

Waterproof IP65 200w Solar inverter power inverter with charger pure sine wave power inverters

Waterproof IP65 200w Solar inverter power inverter with charger pure sine wave power inverters
Waterproof IP65 200w Solar inverter power inverter with charger pure sine wave power inverters

Large Image :  Waterproof IP65 200w Solar inverter power inverter with charger pure sine wave power inverters

Product Details:
Place of Origin: China
Brand Name: LSG
Certification: CE,FCC,ISO9001
Model Number: LSG
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Get Latest Price
Packaging Details: 1pc/carton
Delivery Time: 30 working days
Payment Terms: L/C,T/T,Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Highlight:

portable power inverter

Waterproof IP65 200w Solar inverter power inverter with charger pure sine wave power inverters



Quick Details

Place of Origin:  China (Mainland) Brand Name: OEM Model Number: SY-WMVC-200W
Output Power: 101 - 200W Output Type: Single Size: 21x16.5x5.3cm
Weight: 1.6KG Input Voltage: 22-45VDC Output Voltage: 110VAC(90VAC-140)
Type: DC/AC Inverters Output Frequency: 50Hz/60Hz Output Current: 2A/4A
THD: <3% wave form: Pure sine wave output working Humidity: 0%~90%
main circuit form: push-pull inverter efficiency(test room): 92%

Recommend use

solar panels:

36V/230Wp
(Vmp:29V,Voc:37V)
Protection:
Low Voltage Shut Down,Over Voltage Shut Down,Short circuit,
 communication: wireless communication Certifications: CE



Specifications

solar inverter power inverter
1.one year fully warranty
2.water proof
3.pure sine wave output,MPPT function,high efficiency



Specifications



200w on grid inverter/communication inverter
1.MPPT efficiency 99%
2.Efficiency>92%
3.IP65
4.Adopt wireless and GPRS

5.Available Voltage of utility power:100V 110V 115V 120v 127V (90-140VAC)



1.Advantage of this communication inverter :



1.5pcs inverter use one launcher,it help you save the cost of launcher.



2.The communication betweenlauncher and data receiver using wireless.it is convenient to establish network,no wiring



3.the communication between Server and data receiver using GPRS.Remote data transmission, even in the desert can also convenient communication



4.Server connect to the internet,you can visit it at any place of the world.

5. this system can connect to the meteorological sensor,real-time monitoring such as:temperature,humidity,wind power,wind direction,illumination intensity,rain,snow.


 2.Outdoor 200w on grid inverter/communication inverter parameter table:



Model SY-WMVC-200W
Input Recommend use solar panels 36V/240Wp 36V/240Wp (Vmp:29V,Voc:37V)
AC output power 200W
AC maximum output power 240W
MPPT voltage 22-45V
MPPT algorithm CVT+PO
Maximum input current Automatic control
DC maximum voltage 40VDC
DC Maximum Input Power Automatic control
DC input voltage Range  20-40VDC
Output Efficiency  >90%(at MPPT voltage)
AC Voltage

100V 110V 115V 120V 127V
Waveform  Pure sine wave
Max output power factor 99%(at MPPT voltage)
Frequency  45Hz53Hz/55Hz~63Hz(Automatic detection and adjustments)
Protection Over temperature >65°C
Low Voltage Shut Down  <20V
Over Voltage Shut Down  >40V
Reverse voltage protection Reverse connection circuit
Short circuit FUSE
Islanding protection Detect islanding within 0.02s,shut down output within 0.5s
Environment  Working Temperature  -25~60°C
Working Humidity  0%~90%(waterproof design)
Others Start Soft Start
communication wireless communication
waterproof IP65
Total harmonic distortion THDIAC(V) <3%(at MPPT voltage)
Phase shift rate <1%
Standby power <2W
Boot to full power consuming <1 Minutes
Electromagnetic Compatibility EN61000-6-3:2007 EN61000-6-1:2007
Power System Disturbance EN 50178+EN 62109-1+VDE0126-1-12
Network test DIN VDE 1026 UL1741
Audible Noise 60dB max
Cooling Ways thermal conductive silicone potting
Certifications CE
Package Inner box 31x21x11.5CM
product size 23 x 13 x5cm( Don't include random connection wires)
carton box 42x31.5x35.5CM(6PCS/CNT)
Gross weight 2.0kg
Net weight 1.6kg
The length of the AC power cord 1.2m



3.MPPT efficiency



 Advantage:

  • Very easy to install(plug and play)
  • Main electronic component comes from America and Taiwan China.Higher STABILITY and LONG LIFE TIME.
  • Pure sine wave output
  • Maximum power point tracking(MPPT)
  • High-Frequency High Conversion Rate
  • Stack using,it will turn into a large power or achieve single phase to more phase.
  • Factory drect sales,High quality with competitive price
  • Directly connected to the solar panels (do not have to connect the battery)
  • Protection Funtion:Overvoltage and undervoltage protection of DC and AC,AC overfrequency and underfrequency protection,overload
  • protection,short circuit protection ,leakage protection ,overtemperature protection,island protection,etc.
