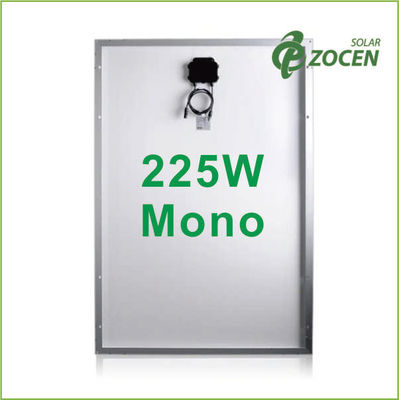

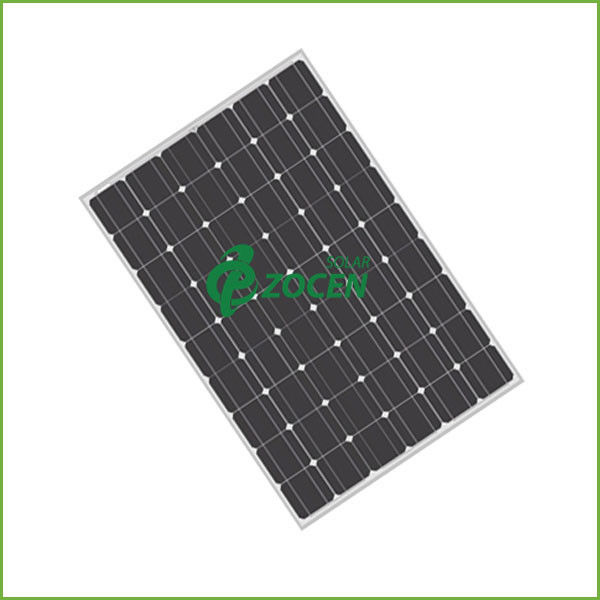

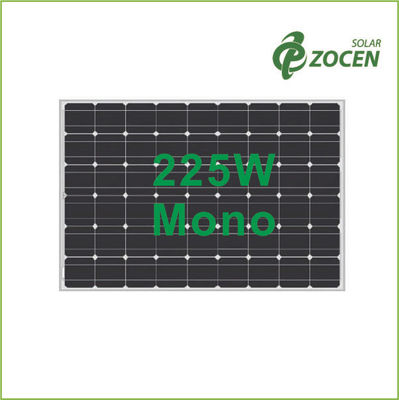

225 W Photovoltaic Molycrystalline Solar Panels With Grade A Solar Cell




1> Quick deails

• Item: 225W Molycrystalline solar panel
• Model: ZCM6-54P-225W
• Solar Cell: 54pcs Grade A monocrystalline solar cell
• Chubb Insurance: Product Liability Insurance (PCO) and Errors or Omissions Liability Insurance (E&O)
• Safety Grade: Class II
• Warranty: 10 years workmanship; Guarantee the power 90% in the first 12 years; Guarantee the power 80% in 25 years.
• Panels meet highest international standards ISO9001 and ISO14001 and are certified with TUV, IEC61215, IEC61730, CE, CQC, CEC, MCS, BV


2> Features:

• Tempered glass to help reduce risk of damage.
• Junction box with reliable bypass diodes.
• Aluminium Frame
• Operating temperature -30 to 85 degrees Celsius.
• Anti- reflective coating to improve light absorption.
• No extra freight charges apply


3> 225W Photovoltaic Polycrystalline Solar Panel Electrical Characteristics

• Maximum Power(Pmax): 225W
• Power Tolerance: 0~+3%
• Open Circuit Voltage(Voc): 33.8V
• Short Circuit Current(Isc): 8.75A
• Maximum Power Voltage(Vmp): 27.30V
• Maximum Power Voltage(Imp): 8.26A
• Max. System Voltage: IEC:1000V / UL:600V


4> 225W Photovoltaic Monocrystalline Solar Panel Mechanical Characteristics


5> 225W Photovoltaic Polycrystalline Solar PanelPacking configuration



5> Quality Control

• Robust, corrosion resistant aluminum frame independently tested to withstand wind and snow loads of up to 2400Pa and 5400Pa,respectively,ensuring mechanical stability.
• Manufacturing facility certifed to ISO9001 Quality Management System standards.
• Module packaging optimized to protect product during transportation and minimize on-site waste.


6> Crystallines Solar Panel Application

• Solar power station
• Rural electrification, Small home power systems
• Power supply for traffic, security, gas industry
• 12V and 24V battery charging systems
• Other industrial and commercial applications
