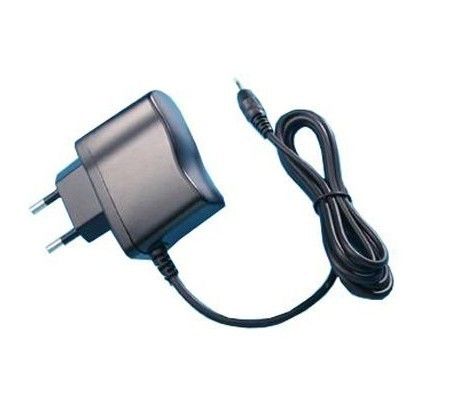

Switching Power Supply

Model No.: 12W series  (Eu type)

APPLICATION FOR

＊Communication and Digital Device,PDA,Scanner,network equipment

FEATURE

＊ Wall mount type

＊ Universal input

＊ Optional output connector

＊ Overload and short circuit protection, LPS

ENVIRONMENTION

＊ Operationg temperature:0℃----+40℃

＊Operationg humidity:5%--95% relative humidity              (non-condensing)

ELECTRICAL

＊ Input Voltage: 100-264V ac

＊ Input Frequency Range: 47Hz～63Hz

＊ Input Current: 0.45A(Max)at AC100V

＊ Efficiency: 80%(MIN)at Rated Voltage

＊ DC Output Voltage:±0.5V

＊ DC Output Power: 12w (max)

＊ Ripple and Noise: ≤120Mv at full road with 20MHz bandwidth

＊ Turn On Delay Time: ≤3S  (AC:110V and full load)
