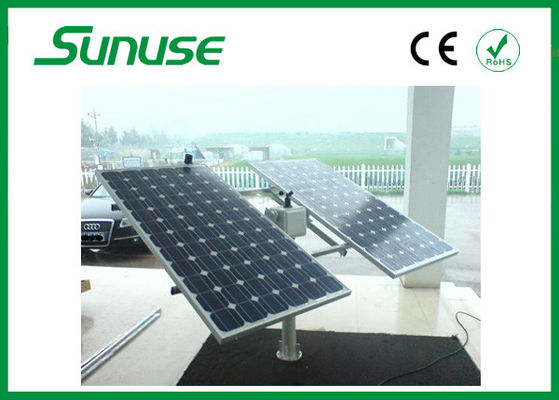

High Efficiency Homemade Solar Panel Tracking System For GSM Based Agriculture System

High Efficiency Homemade Solar Panel Tracking System For GSM Based Agriculture System

Quick Detail:

Application: Home or street lamp
Output Voltage (V): DC12V -DC24V
Load Power (W) LED: 30 W-120W
Solar Power (W): 100W -400W
Work Time (h): 6~8 hours


Specifications:

1. Automatic tracking mode: Biaxial automatic
2. Weight of the entire system (excluding solar ): 18kg
3. Of vertical angle (angle of elevation)0° ~ +90°
4. Horizontal angle range (azimuth): 0~355°
5. Principle: Active
6. Precision: ± 1°
7. Annual average power generation volume: ≥45%
8. System average power consumption W: 0.5
9. Protection: Wind, automatic protection

Technical parameters:

Solar Tracking System is a device for orienting a solar panel or concentrating a solar reflector or lens towards the sun. Concentrators, especially in solar cell applications, require a high degree of accuracy to ensure that the concentrated sunlight is directed precisely to the powered device. Precise tracking of the sun is achieved through systems with single or dual axis tracking.

Why Solar Tracking Systems:

Global warming has increased the demand and request for green energy produced by renewable sources such as solar power. Consequently, solar tracking is increasingly being applied as a sustainable power generating solution.

System composition:

RY-SL-B  multi-axial sun tracking system by solar  sensors, controller and transmission actuators three parts.

1, solar sensor

In effective the whole lighting conditions for high accuracy measurement, and sunshine sunshine azimuth signal into electrical signal, send tracking controller.

 2, controller

Tracking controller receives the sun after the signal tracking sensors, driving the transmission actuators operation, and make solar panels is perpendicular to the sun's rays.

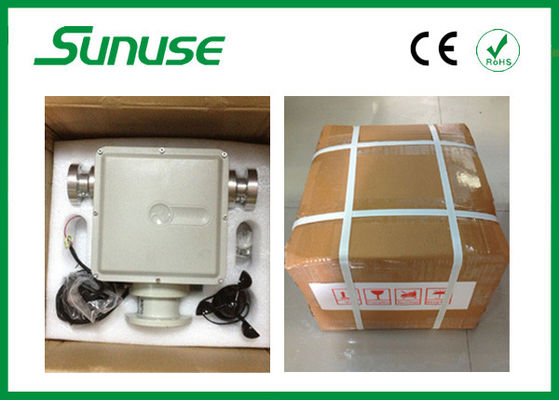

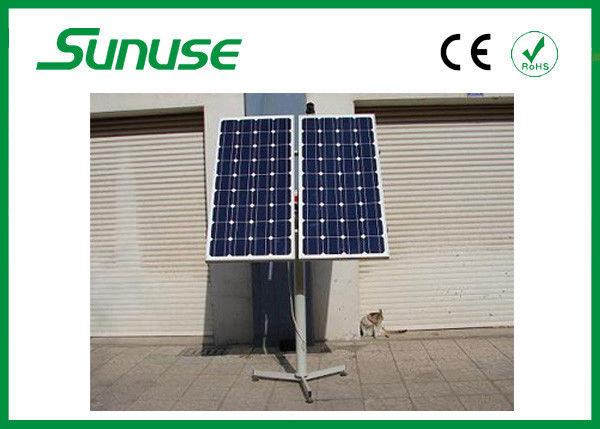

3, Transmission actuators:

Adopt unique mechanical structure design, realizing horizontal 360 °, 180 ° pitch Angle can adjust fixed, the biggest after wind could reach 10 levels

Technical Indicators:

Tracking mode: multi-axial automatic tracking

Tracking precision: 1 °

Level rotary Angle: 360 °

Pitch Angle: 180 °

Transmission mechanism self-respect: 8Kg (excluding stents and panels)

Maximum load-bearing: 100 kg (can pack 120W following panels)

Motor power supplies: DC 12V

Controller power supplies: DC 12V

System average annual power consumption: 0.5W

Wind level: 10 levels

Dual axis tracking systems:

Dual axis tracking is typically used to orient a mirror and redirect sunlight along a fixed axis towards a stationary receiver. But the system can also gain additional yield on your PV cells. We can provide you with quality actuators that move these panels on dual axis.

Single axis tracking systems:

Solar panels with single axis tracking systems. The panels can turn around the centre axis. We can provide the actuators that tilt the panels.

Application scope:

Outdoor lighting: solar street lamps, highway LED, outdoor media advertising box, highway cross traffic lights, telecommunications mobile base station power supply system.

Civil system: household small power systems, nomads living power, border posts/control box.
