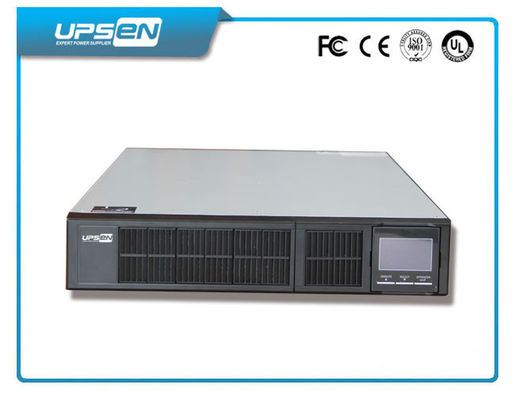

Single Phase 1KVA / 2KVA 3KVA Double Conversion Online UPS Rack Type For Servers / Data Center

Large Image : Single Phase 1KVA / 2KVA 3KVA Double Conversion Online UPS Rack Type For Servers / Data Center

Product Details:

Place of Origin:	China
Brand Name:	UPSEN
Certification:	CE, ISO, RoHS
Model Number:	Rack Mount Star Series 1-10Kva

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	Cartons & Wooden Pallet
Delivery Time:	7-15 Days
Payment Terms:	T/T, LC, WU, Money Gram etc
Supply Ability:	50,000pcs/Month

Contact Now

Detailed Product Description

Type:	Rack Mount Online	Output Power Factor:	0.8
Phase:	Single Phase	Protection:	Over Load/Current/Voltage, Short Circuit Etc
Display:	Digital LCD Display	H.S. Code:	8504402000
High Light:	uninterruptible power supply rack mount , energy saving UPS

Single Phase 1KVA / 2KVA 3KVA Double Conversion Online UPS Rack Type For Servers / Data Center

Model: High Frequency Online UPS Rack Mount Star Series RM 1K-10KVA(1Ph in/1Ph out)

Quick Read

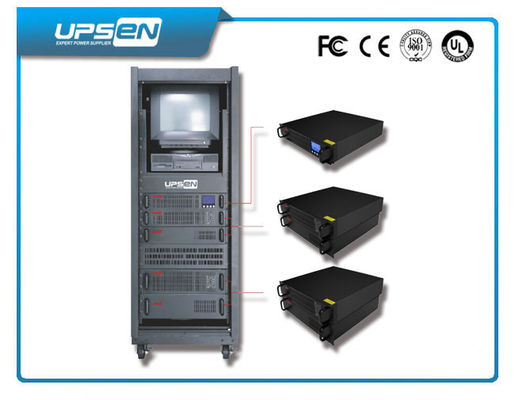

1: UPS with Rack mount 19”design 2U/3U Height design

2: Rack Mount UPS is the best power supply partner for servers and data rooms

3: UPS with PWM and IGBT Technology

4: UPS with DC start function and Input PFC revise function

5: Smart RS232 communication with monitoring software

Key Features:

Rack mount 19”design 2U/3U Height to save space
High Frequency and double conversion online technology
Fully digitized microprocessor control
Smart RS232, USB, RJ11, RJ45 communication with monitoring software
Optional SNMP card slot
Wide input voltage range
Advanced PFC technology
Self-testing when UPS startup
Advanced battery management
Automatic battery charging in UPS off mode
Lighting and surge protection
Short circuit and overload protection
Network/fax/modem surge protection
Optional extension battery pack

Rack Mountable UPS Application
Servers, Data-Center, Critical network devices, Sensitive electronic, Telecom...

Technical Specification

Rack Mount Star Series RM1K-10K
Model		RM1K	RM2K	RM3K	RM1KL	RM2KL	RM3KL	RM6KL	RM10KL
Input	Phase	Single Phase with Ground
	Nominal Voltage	110115//120Vac or 220/230/240Vac						220/230/240Vac
	Voltage Range	60-138VAC or 115 ~ 300VAC						176 ~ 276VAC
	Frequency Range	46 ~ 54Hz(default), user adjustable within 40~60Hz						46 ~ 54Hz
	Power Factor	0.97						0.98
	Connection	IEC320-10A inlet		IEC320-16A inlet	IEC320-10A inlet		IEC320-16A inlet	Terminal Block
Output	Phase	Single Phase
	Voltage	110/115/120Vac or 220/230/240VAC ± 2%						110/115/120Vac or 220/230/240VAC± 1%
	Frequency	46~54Hz or 50Hz ± 0.2Hz (Line mode)						46~54Hz (Line mode)
		50Hz ± 0.2Hz ( Battery mode)						50Hz ± 0.05Hz ( Battery mode)
	Waveform	Pure Sine Wave
	Power Factor	0.7/0.8 Optional
	Overload Capability	108%~150% for 30 sec., 150% for 300 ms						105%~130% for 10 min., 130% for 1 min.
	Current Crest Ratio	3:1
	Connections	IEC320 -10A * 4		IEC320-10A and Terminal Block	IEC320 -10A * 4		IEC320-10A and Terminal Block	IEC320-10A * 4 and Terminal Block
Bypass	Automatic Transfer	on overload and UPS failure
	Before UPS Power-on	Default “NO”, user adjustable to “YES”						Yes
	Voltage Range	80~264VAC (Default), user adjustable within 80~286VAC						176 ~ 261VAC
Transfer Time		0 ms; less than 4 ms from inverter to bypass and vice versa						Zero
LED /LCD indicators		Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault
Audible Alarm		Bypass, On battery mode, Battery low, Overload, Fault
Communications		RS-232 Serial Interface
		Intelligent Slot;
		OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC)
Network Surge Protection		RJ45 I/O port available for network or Fax/Modem
Environmental	Operating Temperature	0 ~ 40°C
	Operating Humidity	20 ~ 90% non-condensing
Main Unit	Net Weight (Kg)	16.3	10.3	11.2	9.1	11.5	12.3	18.3	20.3
	Dimensions (W x D x H) mm	482 x 420 x 88 (2U)	482 x 420 x 88 (2U) or (3U Internal Batteries)		482 x 420 x 88 (2U)			482.6 x 600 x 130 (3U)
Battery Pack	Type	Internal Batteries	External Battery Pack
	Nominal DC Voltage	24/36VDC	48/72VDC	72/96VDC	24/36VDC	48/72VDC	72/96VDC	192/240VDC
	Battery Numbers & Capacity	2/3Pcs *12V7.2Ah	4/6Pcs *12V7.2Ah	6/8Pcs *12V7.2Ah	Depending on the capacity of external battery packs
	Backup Time (Full load)	5 min	7min (with 1 BP)	5 min (with 1 BP)

	Recharge Time	5hrs to 90%	5hrs to 90%	5hrs to 90%
	Charging Current (Max.)	1.0A	1.0A	1.0A	8A±1A			4.2A
	Charging Voltage	41.1Vdc±0.6V	110Vdc±0.4V		41.1Vdc±0.6V	110Vdc±0.4V		274Vdc±1%V
	Net Weight (Kg)	---	25.3	25.3	---	---	---	---
	Dimensions (W x D x H) mm	---	482 x 420 x88 (2U)	482 x 420 x88 (2U)	---	---	---	---
