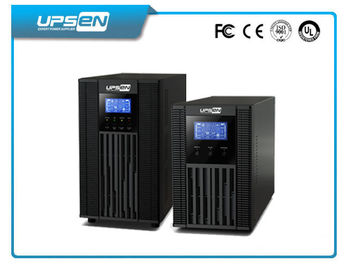

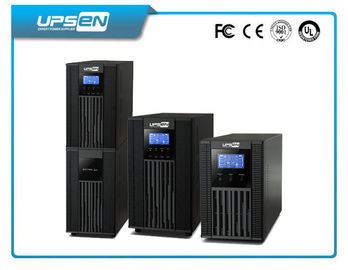

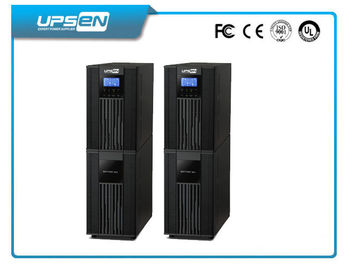

True Online Double Conversion UPS with Pure Sine Wave and LCD Display 1Kva - 20Kva

True Online Double Conversion UPS with Pure Sine Wave and LCD Display 1Kva - 20Kva
True Online Double Conversion UPS with Pure Sine Wave and LCD Display 1Kva - 20Kva True Online Double Conversion UPS with Pure Sine Wave and LCD Display 1Kva - 20Kva True Online Double Conversion UPS with Pure Sine Wave and LCD Display 1Kva - 20Kva True Online Double Conversion UPS with Pure Sine Wave and LCD Display 1Kva - 20Kva

Large Image :  True Online Double Conversion UPS with Pure Sine Wave and LCD Display 1Kva - 20Kva

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Green Star Series 1-20Kva
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Cartons & Wooden Pallet
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Detailed Product Description
Type: Online Output Power Factor: 0.8
Phase: Single Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: Digital LCD Display H.S. Code: 8504402000
High Light:

true online double conversion ups

,

commercial ups systems



True Online Double Conversion UPS with Pure Sine Wave and LCD Display 1Kva - 20Kva

Model:High Frequency Online UPS Green Star Series 1K-20Kva (1ph in / 1ph out) (3ph in / 1ph out)



Quick Read

1: Online UPS 1 - 10Kva with Single Phase Input / Output, 10 - 20Kva with 3 Phase Input, Single Phase Output

2: UPS with RS232/DB-9 Communication port

3: Output power factor 0.8

4: DSP technology guarantees high performance

5: N + X Parallel Function for UPS Capacity 6K - 20Kva



Key Features
• True double-conversion on line UPS
• DSP technology guarantees high performance
• Output power factor 0.8
• Standard backup UPS and long backup UPS in one integrated unit
• Adjustable battery number from 16 pcs to 20 pcs
• Adjustable charging current via LCD or software (0.5A~6A)
• Wide input voltage range (110-300 VAC)
• Active input power factor correction 0.99
• 50Hz/60Hz frequency converter mode

• 3-stage extendable charging design for optimized battery performance

• Maintenance bypass available

• RJ11, RJ45, SNMP/USB/RS-232 communications





Technical Specification



Technical Specification
GREEN STAR 6K/10K ONLINE UPS SPECIFICATION
MODEL G6K (L) G10K (L)
PHASE 1 phase in / 1 phase out
CAPACITY 6000 VA / 4800 W 10000 VA / 8000 W
INPUT
Nominal Voltage  208/220/230/240VAC
Voltage Range Low Line Loss  110 VAC ± 3% at 50% Load
176 VAC ± 3% at 100% Load
Low Line Comeback  120 VAC ± 3% at 50% Load
186 VAC ± 3% at 100% Load
High Line Loss  300 VAC ± 3%
High Line Comeback  290 VAC ± 3%
Frequency Range   46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz
Power Factor ≧ 0.99  @ 100% load
OUTPUT
Nominal Voltage  208/220/230/240VAC
AC Voltage Regulation  ± 1%
Frequency Range (Synchronized Range) 46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz
Frequency Range (Batt. Mode) 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio 3:1 (max.)
Harmonic Distortion ≦ 3 % THD (Linear Load)
≦ 6 % THD (Non-linear Load)
Transfer Time Bypass to Inverter (Line mode) Zero
Inverter to Bypass (Line mode) Zero
Waveform (Batt. Mode) Pure Sinewave
EFFICIENCY
Line Mode 89% 90%
Battery Mode 88% 89%
BATTERY
Standard Model Battery Type 12 V / 7 AH 12 V / 9 AH
Numbers 16 16
Typical Recharge Time 9 hours recover to 90% capacity
Charging Current  Default:1.0 A ±  10%,           Max.:2.0A ±  10% Default:1.0 A ±  10%,          Max.:2.0A ±  10%
Float Charging Voltage  218.4 VDC ±  1%
Long-run Model Battery Type Depending on applications
Numbers 16-20** (adjustable)
Charging Current  Default:4.0 A ±  10%,  Max.:6.0A ±  10% Default:4.0 A ±  10%,           Max.:6.0A ±  10%
Float Charging Voltage  273 VDC ±  1% (based on 20 pcs batteries)
INDICATORS

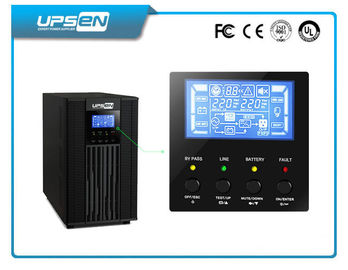

LCD Panel UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ALARM
Battery Mode Sounding every 4 seconds
Overload Sounding twice every second
Fault Continuously sounding
PHYSICAL
Standard Model Dimension, D X W X H (mm) 369 x 190 x 688 442 x 190 x 688
Net Weight (kgs) 60 75
Long-run Model Dimension, D X W X H (mm) 369 x 190 x 318 442 x 190 x 318
Net Weight (kgs) 21 23
ENVIRONMENT
Operation Humidity 0-95 % RH @ 0- 40°C (non-condensing)
Noise Level Less than 55dBA @ 1 Meter Less than 58dBA @ 1 Meter
MANAGEMENT
Smart RS-232/USB Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
Optional SNMP Power management from SNMP manager and web browser

*Derate capacity to 60% of capacity in CVCF mode and to 90% when the output voltage is adjusted to 208VAC.
*If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated
 one percent per 100m.
*Product specifications are subject to change without further notice


* Long-run model is only available in 200/208/220/230/240VAC systems.



Competitive Advantages:


1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products

True Online Double Conversion UPS with Pure Sine Wave and LCD Display 1Kva - 20Kva 0True Online Double Conversion UPS with Pure Sine Wave and LCD Display 1Kva - 20Kva 1True Online Double Conversion UPS with Pure Sine Wave and LCD Display 1Kva - 20Kva 2

True Online Double Conversion UPS with Pure Sine Wave and LCD Display 1Kva - 20Kva 3True Online Double Conversion UPS with Pure Sine Wave and LCD Display 1Kva - 20Kva 4
