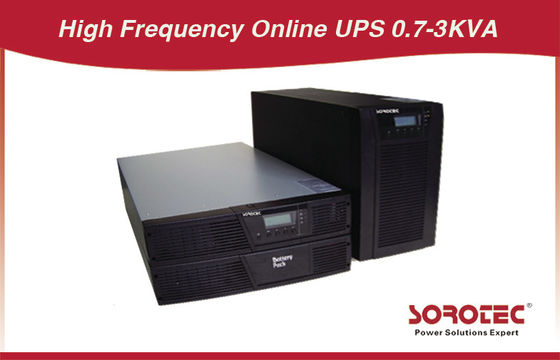

Model

HP9117 1-3KT/1-3KR

1KT/1KR

1KT-XL/1KR-XL

2KT/
2KR

2KT-XL/
2KR-XL

3KT/
3KR

3KT-XL/
3KR-XL

Capacity

1KVA/900 W

2KVA/1800 W

3KVA/
2700 W

Nominal Voltage

100/110/120/127VAC or 200
/208/220/230/240VAC

Nominal Frequency

50/60 Hz

Input

Voltage Range

60-138VAC or 115-276VAC

Frequency Range

50HZ:(46～54HZ)；
60HZ:(56HZ～64HZ)

Power Factor

＞0.98

Output

Voltage precision

100/110/120/127VAC(±2%)
or 200/208/220/230/
240VAC (±2%)

Frequency precision

50Hz/60Hz±0.05Hz

Power Factor

0.9

Harmonic Distortion

Linear Load＜3%
Non-Linear Load＜5%

Overload capacity

overload(110%～150%)
after 30 seconds
automatically transfer
to bypass,  it recover
after  normal load

Current Crest Ratio

3∶1

Transfer time

0ms(AC→DC)

DC voltage

36VDC

96VDC

96VDC

Recharge time

7 hours to 90%

Charge Current

1A

4A/8A(option)

1A

4A/8A(option)

1A

4A/8A(option)

Panel Display

LCD

UPS status,  input/output
voltage frequency,  battery
voltage,  capacity,  load,
temperature,  history records

Language

English,  French,  German,
 Russian,  Spanish

Communicate

Communicate
interface

Optional: SNMP card,
AS400 card or the
CMC provide software,
EPO (USB port)

Working Environment

Temperature

0～40℃

Relative humidity

0～95% non-condensing

Storage Temperature

-25℃～55℃

Elevation

＜1500 meter

Noise Level( 1meter)

＜45dB

＜45dB

＜50dB

Physics
Characteristic

Net weigh(Kg)

15

16

8.5

9

33

10.5

16.5

11.5

34

11.5

17

12.5

Gross weight (Kg)

17.5

17.5

11

11.5

35

12.5

18.5

13.5

36

13.5

19

14.5

Dimension (WXDXH)

Main unit(Tower)

200X400X145

340X460X192

340X460X192

Main unit
(Rack mount)

438X415X80

455 X440 X90
