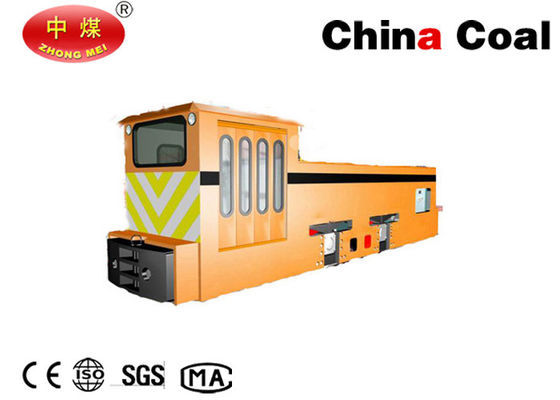

Stringing Electric Locomotive Mining Equipment 10t Variable Speed AC Overhead Line Mine Locomotives

Large Image : Stringing Electric Locomotive Mining Equipment 10t Variable Speed AC Overhead Line Mine Locomotives

Product Details:

Place of Origin:	China Shandong
Brand Name:	china coal
Certification:	CE, SGS, TUV, BV, ISO, MA
Model Number:	10t

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Contact Us
Packaging Details:	Standard Export Packaging
Delivery Time:	Shipped in three days after payment
Payment Terms:	TT, Paypal, Western Union
Supply Ability:	5000

Contact Now

Detailed Product Description

Model:	10t	Weight:	10t
High Speed:	23km/h	Full Length:	4500mm
Speed:	11km/h	Frame Width:	1060mm
The Minimum Curve Radius:	7m	CAB Top Height Of Rail:	1555mm
Wheel Diameter:	680mm	Rail To The Frame Height:	115mm
Catenary Voltage:	DC550V	Distance Between Rail And Motor:	95mm
Traction Motor Type:	YQP-22-10
Highlight:	coal mine machines

10t Variable speed AC overhead line electric locomotive
10t Variable speed electric locomotive, AC overhead line electric locomotive,electric locomotive
Introduction
The AC drive technology for locomotive, DC electric traction inverter converts DC-AC voltage adjustable frequency AC supplies two traction motors drive locomotives, has good adhesion, greater traction, speed range, high reliability, less maintenance cost and other advantages.
Stringing electric locomotive used in coal mine main roadway and the ground transportation of train traction, to transport minerals equipment and personnel for General metal ore or no explosion hazard of coal mine

Technical Parameters

Weight 10tmm

High speed 23km/h

Full length 4500mm

Speed 11km/h

Frame width: 1060mm

The minimum curve radius of 7m

CAB top height of rail to 1555mm

Wheel diameter 680mm

Rail to the frame height 115mm

Catenary voltage DC550V

Distance between rail and motor 95mm

Traction motor type YQP-22-10

Bow height 1800mm~2200

Number of traction motors 2

Wheelbase 1100mm mm

Brake system mechanical/electrical

Gauge-600mm

Coupler height 210mm/320mm/430mm

Biggest force of traction 27KN

Feature Photo

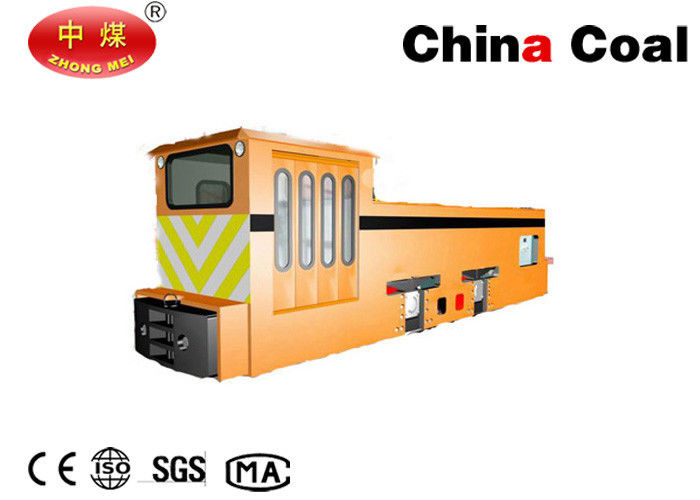

Stringing Electric Locomotive Mining Equipment 10t Variable Speed AC Overhead Line Mine Locomotives 0
