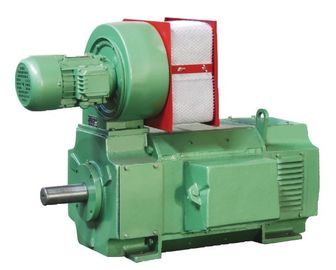

Lightweight Mounting Z4 Industrial DC Motor 1.4KW - 5.5KW , Energy Efficient
Description:
Mounting and Overall type of Z4 DC motor are comply with IEC72 Standard, except the axial distance between the mounting holes( Dimension “B”)
This series motors have polygon structure, so they have high space efficient. Their stator yoke which is lamination and use rectifier power supply can withstand pulsating current and rapid change of current .
Due to its accurate location of magnetic pole, it is convenient to change the direction
Thanks to its small size, good performance, light weight , high efficiency and reliability , our Z4 DC motors can compete with international advanced level.
|
Ambient |
||
|
Temperature range: |
-15~40℃ |
|
|
Ambient humidity: |
90%less than relative humidity |
|
|
Altitude: |
less than 1000m above sea level |
|
|
Ambient condition: |
no causticity gas, no dust, no heavy mental pollution, no flame, no salt crystallization |
|
|
Standard Feature: |
||
|
Standard |
IEC34-1 / DIN57530 |
|
|
Phase |
Three-phase |
|
|
Frame Size |
H100 |
|
|
Protect Feature |
Totally Enclosed |
|
|
Output Range |
1.4~5.5KW |
|
|
Voltage |
160V,440V or on request |
|
|
Rated speed |
3000,2000,4000 r/min |
|
|
Frequency |
50HZ |
|
|
Protection Class |
IP21S |
|
|
Insulation |
F/B |
|
|
Mounting |
IMB3 /IMB35 or on your request |
|
|
Cooling |
IC06,IC17,IC37 |
|
|
Duty |
S1 |
|
|
Thermometry |
Optional |
|
|
Certification |
CCC, CE,ISO9001 |
|
|
Special motors can be designed according to customers' requirements |
||
Meaning of type code
Requirement for cooling air volume , air pressure and fan motor power
|
Frame Size |
Air Volume |
Static Pressure |
Motor output |
|
m3/h |
Pa |
KW |
|
|
Z4-100 |
160 |
200 |
0.04 |
The fan motors are all three phase ,two pole ,380V
Technical Specification :
The data below is include excitation loss, excluding blower loss
|
Motor Type |
Rated Power |
Rated Speed |
Magnetic speed |
Arm. Curr. |
Excitation Power |
armature circuit resistance |
Armature circuit inductance |
Field Inductance |
External inductance |
Efficiency |
Moment of inertia |
Weight |
|||
|
PN |
160V |
400V |
440V |
NF |
In |
PF |
R |
LA |
LF |
LR |
η |
GD2 |
|||
|
KW |
r/min |
r/min |
A |
W |
Ω(20℃) |
mH |
H |
mH |
% |
Kgm2 |
kg |
||||
|
Z4-100-1 |
2.2 |
1490 |
|
|
3000 |
17.9 |
315 |
1.19 |
11.2 |
22 |
15 |
67.8 |
0.044 |
72 |
|
|
1.5 |
955 |
|
|
2000 |
13.3 |
2.17 |
21.4 |
13 |
58.5 |
||||||
|
4 |
|
2630 |
|
4000 |
12 |
2.82 |
26 |
18 |
|
78.9 |
|||||
|
4 |
|
|
2960 |
4000 |
10.7 |
80.1 |
|||||||||
|
2 |
|
1310 |
|
3000 |
6.6 |
9.12 |
86 |
68.4 |
|||||||
|
2.2 |
|
|
1480 |
3000 |
6.5 |
70.6 |
|||||||||
|
1.4 |
|
860 |
|
2000 |
5.1 |
16.76 |
163 |
60.3 |
|||||||
|
1.5 |
|
|
990 |
2000 |
4.77 |
63.2 |
|||||||||
Mounting and Overall Dimensions(mm)
Mounting Type :IMB3/IM1001
|
Frame Size |
Mounting Dimensions (mm) |
Overall Dimensions (mm) |
||||||||||||||||||
|
A |
B |
C |
D |
E |
F |
GA |
DA |
EA |
FA |
GC |
H |
K |
AB |
AC |
AD |
HD |
h1 |
L |
L1 |
|
|
Z4-100-1 |
160 |
318 |
63 |
24 |
50 |
8 |
27 |
24 |
50 |
8 |
27 |
100 |
12 |
197 |
234 |
179 |
398 |
10 |
500 |
580 |
|
Z4-100-2 |
358 |
540 |
620 |
|||||||||||||||||
Mounting Type: IMB35 /IM2001
|
Frame Size |
Mounting Dimensions (mm) |
Overall Dimensions (mm) |
||||||||||||||||||||||
|
A |
B |
C |
D |
E |
F |
GA |
DA |
EA |
FA |
GC |
H |
K |
M |
N |
S |
T |
P |
AB |
AC |
AD |
HD |
L |
L1 |
|
|
Z4-100-1 |
160 |
318 |
63 |
24 |
50 |
8 |
27 |
24 |
50 |
8 |
27 |
100 |
12 |
215 |
180 |
4-￠15 |
4 |
250 |
197 |
234 |
179 |
398 |
500 |
580 |
|
Z4-100-2 |
358 |
4-￠15 |
540 |
620 |
||||||||||||||||||||
Supply power:
1,The power supply of Armature and Field circuits can be from Static rectifier power supply or from DC generator.
2,Under constant torque, decrease armature voltage to adjust speed;Under constant power, decrease excitation voltage to adjust speed.
3, Separated excitation is the basic excitation type. Nominal excitation voltage is180V, other voltages are also acceptable on your request.
Applications:
Z4 DC motors are our latest product. They are widely used as drive source for various machinery, such as Metallurgical industry, Metal cutting machine, Paper ,Printing, Textile, Dyeing, Cement, Plastic extrusion machinery and so on.
Competitive Advantage:
HD motors stem from China with almost 20years manufacture history, which is a famous motor brand in China. Relying on continuous innovation, HD motors become one of the best in low votage motor production with their perfect performance , reliable quality , high efficiency and energy reservation.
High quality insulation material combines the perfect insulation system.
Perfect primer ensures the motors with good appearance and the motors are durable.
1. Focus on the manufacture of Low Voltage Motors;
2. Efficient customer services
3. Customized motors.
Contact Person: Mr. Song
Tel: 86-137367899
Fax: 86-755-7287468
