Product Details:
Payment & Shipping Terms:
|
Product Name: | High Power LED Street Lights | IP Rating: | IP65 |
---|---|---|---|
LED Luminous Flux: | 3600 Lm In Initial, 3300 Lm In Maintain | CRI(Ra >=): | 75 |
Optimal Operating Temperature: | -40℃+50℃ | Nominal Voltage: | 100-240V AC, 50/60Hz, 12V/24V DC |
Maximum Current: | 0.41A-AC,3.24A-12VDC,1.62A-24VDC | Driver Efficiency(>): | 90% |
High Light: | high powered led lights,LED Street Lights |

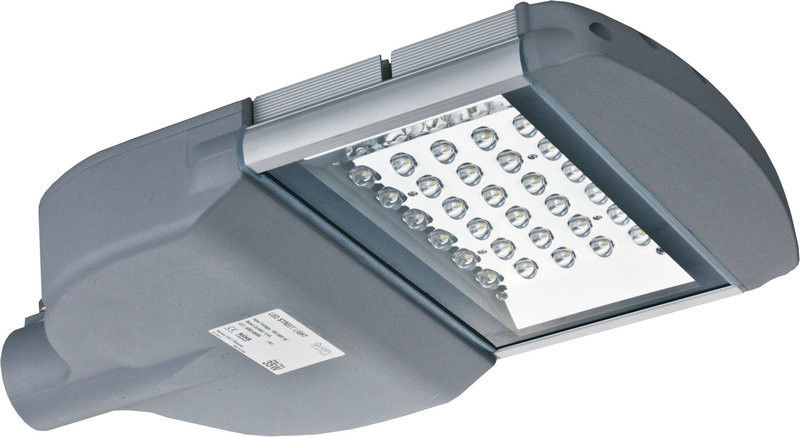

Efficient 35W High Power LED Street Lights RoHS With 50000hrs Longlife
Quick details:
1. Long life
2. Energy efficiency
3. Improved visibility
4. Instant on /no restrike
5. Ease of installation
6. High efficiency reduces electricity cost
7. Significantly less generated heat
8. More than twice the average life of metal halide and high pressure sodium
Description:
ZGSM LLD series high power LED street light are designed for use in sport field, city streets, municipal roadways,
bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for
high-brightness general illumination during the night time. All of ZGSMs long life LED luminaires are designed to
meet the most demanding specification criteria while offering maximum energy savings, reduced maintenance
costs, and a superior quality of light.
Applications:
Municipal Roadways
Bridges
Public Parks
Parking Lots
Sport Feild

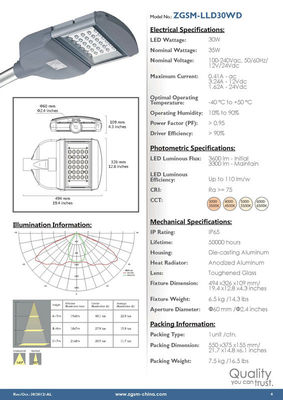

Specifications:
1. LED Wattage: 30W
2. Nominal Wattage: 35W
3. Nominal Voltage: 100-240V AC, 50/60Hz, 12V/24V DC
4. Maximum Current: 0.41A-AC,3.24A-12VDC,1.62A-24VDC
5. Optimal Operating Temperature:-40℃+50℃
6. Operating Humidity: 10% to 90%
7. Power Fact(PF): > 0.95
8. Driver Efficiency: > 90%
9. LED Luminous Flux: 3600 lm in Initial, 3300 lm in Maintain
10. LED Luminous Efficiency: Up to 110 lm/w
11. CRI: Ra >= 75
12. CCT: 3000-3500K, 5000-5500K, 4000-4500K, 6000-6500K
13. IP Rating: IP65
14. Lifetime: 50000 hours
15. Housing: Die-casting Aluminum
16. Heat Radiator: Anodized Aluminum
17. Lens: Toughened Glass
18. Guarantee: 3 years
19. Fixture Dimensions: 494 x326 x109 mm/19.4 x12.8 x4.3 inches
20. Fixture Weight: 6.5 kg /14.3 lbs
21. Packing Dimension: 550 x375 x155 mm/21.7 x14.8 x6.1 inches
22. Packing Weight: 7.5 kg /16.5 lbs
23. Aperture Diameter:Ф60 mm /Ф2.4 inches

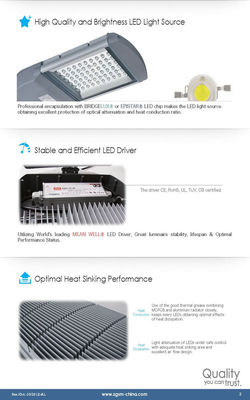

Competitive Advantage:
1. High Quality and Brightness LED Light Source
2. Stable and Efficient LED Driver

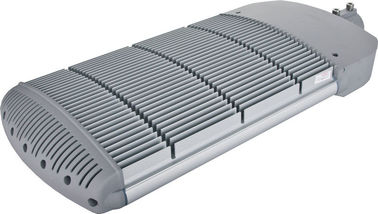

3. Optimal Heat Sinking Performance

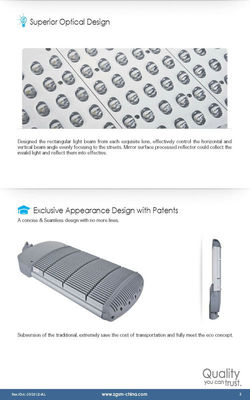

4. Superior Optical Design
5. Exclusive Appearance Design with Patents
6. Significant energy savings
7. Instant on/off
8. Maintenance free
9. Mercury free
10. Superior light quality
11. No UV
12. Simple installation
13. Wide input: 100 - 240V AC
14. Resistant to shock and vibration
15. Temperature compensation technology for long life
16. Copper free aluminum
17. Superior Vision-Care
