Power Castle series Online HF 6-20KVA , high stability, excellent performance

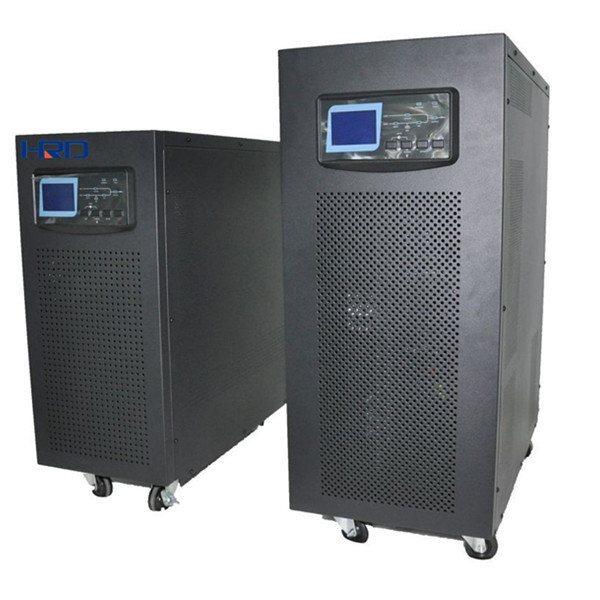

Large Image : Power Castle series Online HF 6-20KVA , high stability, excellent performance

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	HRD/OEM
Certification:	CE,ISO9001:2000
Model Number:	PC06-PC320

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	400-1600
Packaging Details:	1PCS/1CTN,STANDARD FOR EXPORT
Delivery Time:	15-20DAYS after down payment
Payment Terms:	TT or LC at sight
Supply Ability:	100PCS/DAY
Price term:	FOBSHENZHEN
Warranty:	18months after shipment,10years spares support

Contact Now

Detailed Product Description

High Light:

online power supply

online uninterruptible power supply

POWER Castle Series Online UPS 6-10KVA/ 3.1 10-20KVA

Introduction:

Power Castle 6K-10/3.1 10-20Kva, single phase, 3/1phase, is a powerful product range with high adaptability and flexibility. Its cut-edge digital control technology of DSP (Digital Signal Processor), can greatly improve the product performance and system reliability, and deliver a compact integration with higher power density.

Main Features:

1) Unqique design 5KVA/6KVA with 120vdc, 10 batteries avaiable;safe , easy and economic;

2) Full digital control with high level quality and stability ;

3) Sophisticated design with comprehensive protection;

4) Adopted advanced 3 electrical lever inverter;

5) Special hardware and hardware protection for Online UPS;

6) 192vdc or 240vdc easy convertable

via2 small jumpers, one in control board and one in charger board;

7) Large LCD display with abdundant information

It can monitor the UPS status in details(input /ouput frequency, voltage, bus voltage, PFC/INVERTER termperature,load VA,wattt, charge On or Off,load %, battery capacity ,model, logo, waring code, fault code, event log. etc...

8) Wide input frequency 40-70hz,more compatitable with generator

9) Intelligent automaticial 4 level fan speed control , more friendly and energy saveing;

10) Event Log, up to100events. Histrical events, very useful for mainantence.

11) EPO function: Emergency Power off function for ugent use

12) Intelligent Parallel (6units), atuo sensing system capacity expanding or redundant;

Technical Specification:

Model		PCP06S PCP06L	PCP08S PCP08L	PCP10S PCP10L	PCP12S PCP12L		PCP3110S PCP3110L	PCP3115L		PCP3120L
Capacity(kva/kw)		6kva/5.4kw	8kva/7.2kw	10kva/9kw	12kva/10.8kw		10kva/ 9kw	15kva/13.5kw		20kva/18kw
Input
Phase		1/1phase, 1wire+N+G					3/1phase, 3wires+N+G
Input PF		≥0.999					≥0.96
Input voltage	Low transfer	L-N:176 VAC ± 3% @ 100% load;130 VAC ± 3% @ 50% load
	Low back	L-N:188 VAC ± 3% @ 100% load,142 VAC ± 3% @ 50% load
	High transfer	L-N:286 VAC ± 3%
	High back	L-N:270 VAC ± 3%
Input frequency		40-70hz
Battery
Rating/type		12V/7Ah	12V/7Ah	12V/9Ah	12V/9Ah		depend on external battery capacity
quantity		20	20	20	20
Back up time	Standard model	3-10mins depends on load
	Long-run model	depend on external battery capacity
DC voltage		192/240Vdc
Charge voltage		220/275Vdc
Recharging current	Standard model	1A					4A/10A(option)
	Long-run model	4A
Output
Output P.F		0.9
Output voltage		220/230/240Vac +/-1%(static)
Frequency		46~54Hz or 56~64Hz (Line mode) 50/60Hz ± 0.1Hz ( Battery mode)
Crest factor		3:1(max)
Wave distortion		Less than 2% (linear load), Less than 4% Non-linear load
Over load		105% < load < 125% for 1min, 125% < load < 150% for 30s
Efficiency		92%(Line mode)
		98%(ECO mode)
Transfer time		0ms (AC-Battery);
		0 ms(bypass-inverter)
Indicator
LCD Panel		UPS status, Load level, Load watt, Load va, Battery level, Input/output voltage, output current, Bus voltage, Temp, and warning and fault code and events
Alarm
Battery Mode		Sounding every 4 seconds( can mute)
Low Battery		Sounding every second
Overload		Sounding every second
Fault		Continuously sounding
Management
Smart RS-232/USB		Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7, Linux, Unix, and MAC
Optional		SNMP/AS400/USB
Environment
Operation Humidity		0-90 % RH (non-condensing) @ 0- 40°C
Noise Level		Less than 55dBA @ 1 Meter			Less than 58dBA @ 1 Meter
Physical
Model		PCP06S PCP06L	PCP08S PCP08L	PCP10S PCP10L	PCP12S PCP12L	PCP3110S PCP3110L		PCP3115L	PCP3120L
Net Weight (KG)	Standard model	62	63	79	80	86		N/A
	Long-run model	20	21	29	30	36		49
Gross Weight (KG)	Standard model	69	70	86	87	93		N/A
	Long-run model	22	22	37	38	43		56.5
Unit Dimension (DWH)mm		582×260×572 (including wheel height 642)						600×300×660 (including wheel height 740)
Packing (DWH)mm		680360810 (0.2CBM)						720420920 (0.28CBM)
