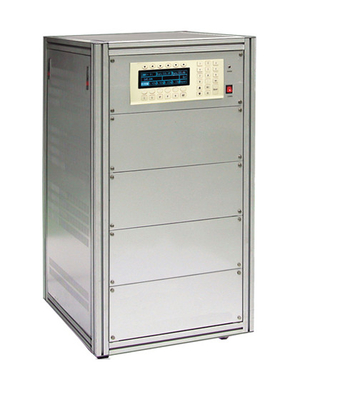

Three Phase High Stability Output Stationary Power Systems By Pc Control Suit

All Products

High Frequency Online UPS (167)

Rack Mount Online UPS (102)

Low Frequency Online UPS (96)

3 Phase UPS Systems (114)

CCTV Power Supplies (61)

Solar Power Inverter (116)

Automatic Voltage Regulator (AVR) (110)

48V DC Power Supply (68)

208Vac Online UPS (98)

Off Grid Solar Power Systems (141)

110V UPS (79)

DC AC Inverter (73)

Double Glass Solar Panel (84)

Large Scale Photovoltaic Power Plants (35)

Solar Panel Street Lights (121)

Best Products

24V 10A Commercial off grid solar power system

Certification

The company considerate after-sales service ,And try their best to meet the requirement of customers. We will be a long-term cooperation.

—— Albert

This is a fantastic sourcing platform, considerate service and good quality product.

—— philip

You always can give me the best plan ,and it lets my customer feel great,i hope we can have another chance to cooperation.

—— Tim

I'm Online Chat Now

Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Voltage Output:	30V-500V	Current Output:	1mA-120A
Phase Output Resolution:	0.02°	Harmonic Range:	2-21
Power Supply:	3 X 220V ±15%	Accuracy Class:	0.02 / 0.05
High Light:	Stationary Power , Power Source

Aluminum alloy materials, light and strong, prevent corrosion High accuracy and high stability output
2nd – 21st harmonic, output amplitude and degree can be programmed.
With keyboard for manual operation (optional).
With RS232 interface for automatic operation
It’s easy for operation by PC control suit.
With the protect function of overload, short voltage circuit and open current circuit.

	YCS-103-250	YCS-103-600	YCS-103-1200	YCS-103-2500
Voltage
Test voltage output (Phase-Neutral)	3×(24V – 288V) or customized
Power of the voltage output	3×100VA	3×250VA	3×500VA	3×1000VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2^nd – 21^st free programmable
Current
Test current output	3×(1mA – 100A)
Power of the current output	3×150VA	3×350VA	3×750VA	3×1500VA
Resolution	Better than 0.01% of full scale value of range
Setting accuracy	Better than 0.05% at the final range value
Stability	Better than 0.005%/h (integration time 150 s)
Load regulation from 0-max. load	< 0.01%
Distortion factor	< 0.3% for linear resistance load
Harmonics	2^nd – 21^st free programmable
Phase angle
Range	0 -- 360°
Resolution	0.01°
Setting accuracy	0.1°
Frequency
Range	45Hz – 65Hz
Resolution	0.01Hz

Voltage Supply	3×220/380V±10% or customized 50/60Hz±2Hz
Ambient temperature	-10°C -- +40°C
Relative humidity	35% -- 85%
