220V / 110V / 24V Brass Magnetic Air Compressor Solenoid Valve for Atlas Copco Air Compressor

220V / 110V / 24V Brass Magnetic Air Compressor Solenoid Valve for Atlas Copco Air Compressor
220V / 110V / 24V Brass Magnetic Air Compressor Solenoid Valve for Atlas Copco Air Compressor 220V / 110V / 24V Brass Magnetic Air Compressor Solenoid Valve for Atlas Copco Air Compressor 220V / 110V / 24V Brass Magnetic Air Compressor Solenoid Valve for Atlas Copco Air Compressor

Large Image :  220V / 110V / 24V Brass Magnetic Air Compressor Solenoid Valve for Atlas Copco Air Compressor

Product Details:
Place of Origin: China
Brand Name: atlas copco / sullair
Certification: SGS
Model Number: GA15-GA160
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: us$10-us$150 per unit
Packaging Details: Box each unit
Delivery Time: 3 working day after payment
Payment Terms: 100% in advance , T/T, Western Union or Paypal
Supply Ability: 8000unit / month
Detailed Product Description
Voltage: 220V Structure: Control
Fluid Pressure: 0~1.0 MPa Part Number: 1089062157/ 1089062140
Material: Brass Opening Pressure: 0-20bar
High Light:

normally open solenoid valve

,

low pressure solenoid valve



220V / 110V / 24V Brass Magnetic Air Compressor Solenoid Valve for Atlas Copco Air Compressor





General Characteristics



1. Supplied both normally closed (NC) and normally open (NO) with de-energized coils.

2. Wide choices of coils for AC and DC.

3. Suitable for all fluorinated refrigerants.

4. Opening pressure diff.: 0-21bar

5. Max. working pressure:25bar

6. Temperature of medium -25℃~120℃.

7.  Working life:≥250,00hrs

8.  Versions with UL and CUL can be supplied to special order.



Type

Solenoid valve

Characteristic

 Low pressure solenoid valve with pilot operated
 diaphragm construction  for vacuum use

Working Medium

Vacuum, air

Type

Normally closed (open) type

Operating Temperture

NBR Seal:14F to 176F, -10 to 80°C

EPDM Seal:14F to 250F,-10 to 120°C

VITON Seal:14F to 300F,-10 to 150°C

Port Size

 1/2",3/4",

Port Thread

BSPP ,BSPT ,NPT ,FLANGE

Orifice (mm)

15,20

Voltage

DC - 12V,24V
AC - 24V,120V, 240V@60HZ 110V, 220V@50HZ

Tolerance

-10%~+10%

Working-pressure

  0.1~0.5Mpa

Coils

S21B, 22VA(AC), 14W(DC), IP65,100%ED
 NASS COIL 0543 on request

Material

Body - Brass
Seal -VITON
Armature Tube - Stainless Steel 304
 Plunger - Stainless Steel 430F
Stop -SS430F
 Springs - SS 304
Shading Rings - Stainless Steel 304

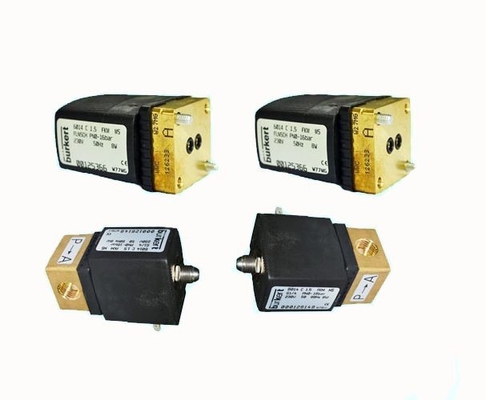

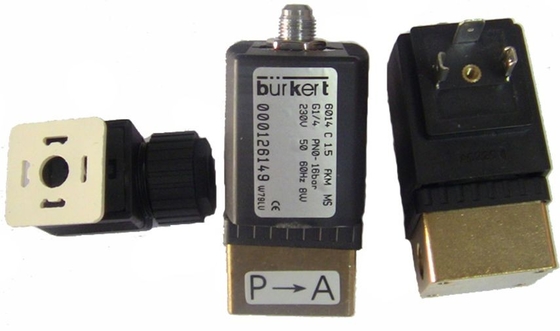

220V / 110V / 24V Brass Magnetic Air Compressor Solenoid Valve for Atlas Copco Air Compressor 0220V / 110V / 24V Brass Magnetic Air Compressor Solenoid Valve for Atlas Copco Air Compressor 1220V / 110V / 24V Brass Magnetic Air Compressor Solenoid Valve for Atlas Copco Air Compressor 2

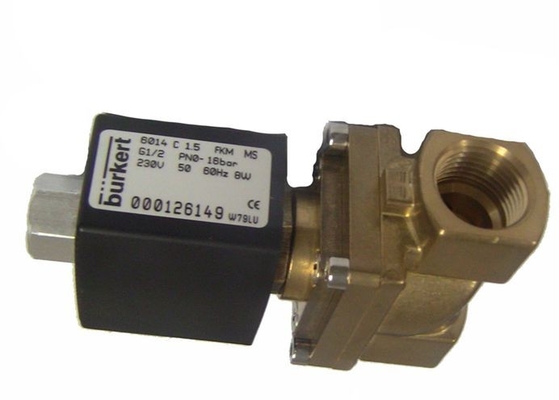

220V / 110V / 24V Brass Magnetic Air Compressor Solenoid Valve for Atlas Copco Air Compressor 3



--Part Number for refer:



Solenoid valve 1089062113
Solenoid valve 1089062119
Solenoid valve 1089062111
Solenoid valve 22410286
Solenoid valve 22516025(110V)
Solenoid valve 39184841(110V)
Solenoid valve 39120472(110V)
Solenoid valve 39476569(110V)
Solenoid valve 250038-666
Solenoid valve 220V/1089062114
Solenoid valve 24V/1089062110
Solenoid valve 1089070209
Solenoid valve 1089050506(24v)
Solenoid valve 1089070213
Solenoid valve 1089070210
Solenoid valve 1089070214
Solenoid valve 250038-666(110V)
Solenoid valve 250038-755(220V)
