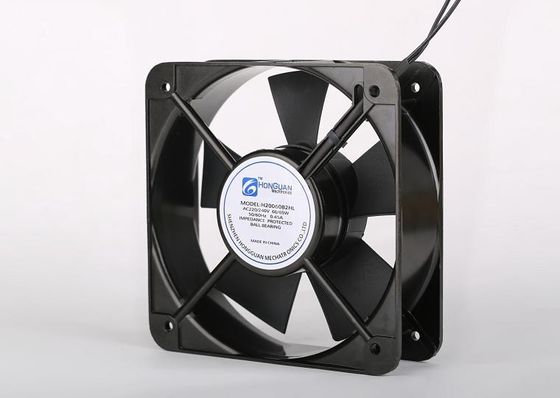

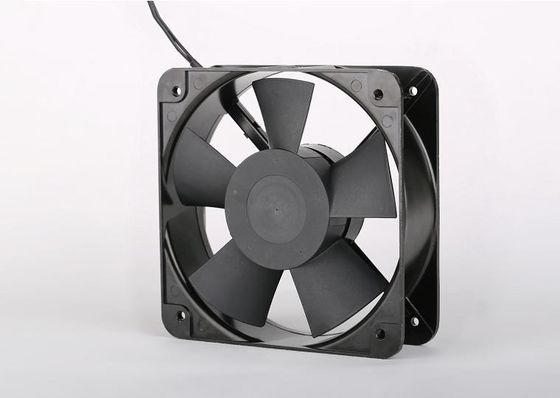

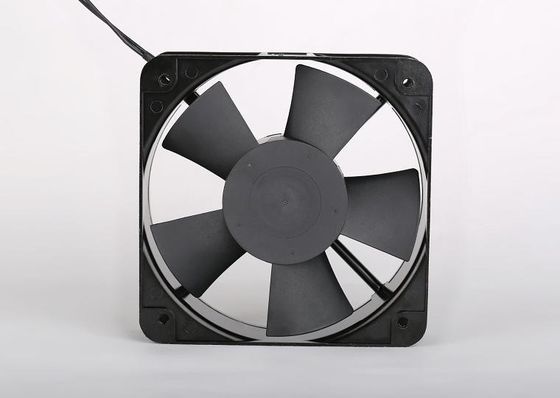

200mm large ac industrial cooling fan high efficiency axial flow fan 110v or 220v 380v

200mm large ac industrial cooling fan high efficiency axial flow fan 110v or 220v 380v
200mm large ac industrial cooling fan high efficiency axial flow fan 110v or 220v 380v 200mm large ac industrial cooling fan high efficiency axial flow fan 110v or 220v 380v 200mm large ac industrial cooling fan high efficiency axial flow fan 110v or 220v 380v 200mm large ac industrial cooling fan high efficiency axial flow fan 110v or 220v 380v

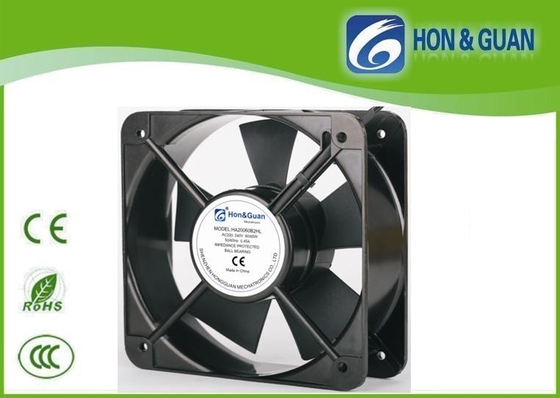

Large Image :  200mm large ac industrial cooling fan high efficiency axial flow fan 110v or 220v 380v

Product Details:
Place of Origin: China
Brand Name: Hon&Guan or OEM
Certification: CE CCC
Model Number: H20060 series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: Seaworthy carton packing or OEM packing
Delivery Time: 15~20 days
Payment Terms: L/C T/T Paypal Western Union
Supply Ability: 10,000pcs per day
Detailed Product Description
Frame: Aluminum Alloy Power: 65W
Speed: 2600RPM Max Air Flow: 388CFM
Max Static Pressure: 25.4mmH2O Noise: 56dBA
Weight: 1625g Wire Type: Wire Or Terminal
High Light:

ac mini fan

,

air cooling fan

200mm large ac industrial cooling fan high efficiency axial flow fan 110v or 220V or 380v





1. Product Desription



   Product size:200*200*60mm
   Frame: Aluminum Alloy
   Impeller: PBT (UL: 94V-0)
   Motor protection: Impedance protect.
   Wire type: -AT Terminal / -AW Wires

   Working temperature:
   Ball bearing: -30 ℃~75℃
   Sleeve bearing: -10℃~70℃

   Net Weight: 1625
g





2. Features

  • Compact
  • Maintenance-fee
  • Easy to mount
  • Low noise level
  • Little vibration
  • Reliable movement



3. Application



200*200*60 ac cooling fan is mainly used for ground control, equipment, electronic equipment, medical equipment, computers, power supplies, welding machines, packaging, printing equipment, satellite communications, CNC, machinery and office automation products such as ventilation and cooling purposes.





4. Performance sheet

Specification:                                          AC Axial Fan 200mm*200mm*60mm
Model Bearing Voltage Frequency Current Power Speed Air Flow Static Pressure    Noise
V Hz A W RPM m3/min CFM mmH2O dB(A)
H20060FB1H ball 110 60/50 0.845/0.76 65/61

2200

/2600

10/11

360

/388

24.0/25.4 50/56
H20060FB2H ball 220 50/60 0.325/0.285 49/55

2600

/2200

11/10

388

/360

25.4/24 56/50
H20060FB3H ball 380 50/60 0.203/0.23 54/62

2600

/2600

11 388 25.4 56





200mm large ac industrial cooling fan high efficiency axial flow fan 110v or 220v 380v 0



200mm large ac industrial cooling fan high efficiency axial flow fan 110v or 220v 380v 1

i) If you want another rpm or voltage or special functionm please contact with us directly.

ii) Products have a detail in the approval sheet.

iii) Specifications are subject to change without notice.





5. Product Safety Test



    ① Drop Test

         In minimal packing, fan withstands each one drop of three faces from 30cm distance height onto 10mm thickness of wooden board

    ② Locked rotor protection

         Impedence of motor winding protects fan from fire in 72hours of locked rotor condition at the rated voltage

    ③ Dielectric Strength

        Fan can withstand 2500v 2sec 1mA between housing and two leads wire

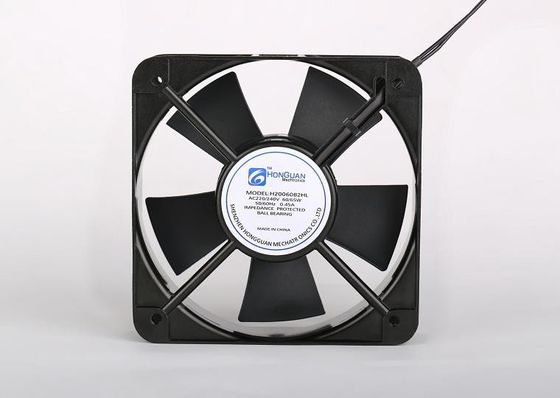

6. More pictures

    We also produce other sizes like 8025 8038 9225 9238 11025 12025 12038 13538 17238 17250 17150 18060 22060 25489

    200mm large ac industrial cooling fan high efficiency axial flow fan 110v or 220v 380v 2





7. About our company



Shenzhen HongGuan Mechatronics Co., Ltd. (short for Hon&Guan) is a professional manufacturer of duct fans and cooling fans for many years.



With a floor area of 8,000 square feet and over 8 production lines, we have a monthly capacity of 300,000pcs cooling fans and 100,000pcs of duct fans. And all the production lines are strictly processed under guide line of ISO9001.



During the long-term practice, we have established an excellent technical and development team with rich experience and advanced technology. We pursue the most cost-effective solutions to meet market demands. Our quality as well as each technical performance index reaches an advanced level in the world. Our products own characteristics of nice appearance, compact structure, finely processed, high wind pressure, large air flow, light weight, thin in depth, low noise, long service life, high adaptability to environment, low price and good reliability, which are very favored by users.



We are well prepared to meet what you need!
