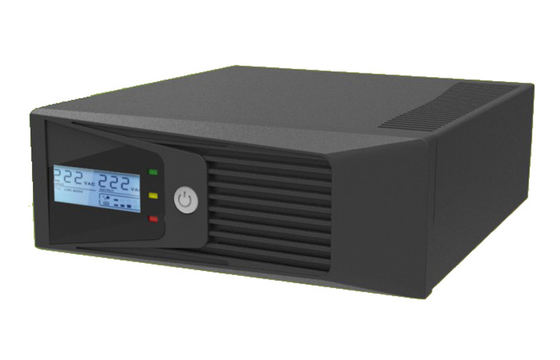

Simulated Sine Wave 50Hz 24VDC DC AC Home Power Inverter 26026480mm

Large Image : Simulated Sine Wave 50Hz 24VDC DC AC Home Power Inverter 260*264*80mm

Product Details:

Place of Origin:	China
Brand Name:	IWELL
Certification:	CE/ROHS/ISOC/SGS
Model Number:	IVP2000

Payment & Shipping Terms:

Minimum Order Quantity:	1piece
Price:	Negotiation
Packaging Details:	Packed in carton, reinforced with wooden tray for outer packing(optional)
Delivery Time:	10-15 working days after received your deposit
Payment Terms:	T/T, western Union or Paypal
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Product Name:	Home Power Inverter 2000va	Application:	Office,home
Size:	26026480mm	Weight:	2.5kg
Display Type:	LCD+LED	Battery Voltage:	24VDC
Wave Form:	Modified Sine Wave	Power Factor:	0.6
Charging Current:	10A	Warranty Time:	One Year
High Light:	modified sine wave inverter , household power inverter

High Quality Digital LCD Display Modified Sine Wave Home Power Inverter 2000va

Specifications:

Model No.		IVP500		IVP1000A		IVP1000B		IVP2000
Nominal Power		300W		600W		600W		1200W
Input
Nominal Voltage	110/120VAC or 220/230/240VAC
Voltage Range	90-145VAC or 170-280VAC(narrow range)
	50-145VAC or 90-280VAC(wide range)
Output
Voltage(battery mode)	120VAC or 230VAC
Frequency	50Hz±0.1Hz
Waveform Type	Simulated sine wave
Power Factor(AC to AC)	＞95%
Power Factor(DC to AC)	＞80%
Transfer Time	8ms(narrow)
Battery
Type	No internal battery-uses external battery system
Nomal Voltage	12VDC		24VDC		12VDC		24VDC
Charging Current	8A		6A		10A
LED Indicators
Utility Mode	Green lighting
Battery Mode	yellow lighting
Overload/fault	Red lighting
Audible Alarm
Low battery	Sounding every 2 seconds
Overload	Sounding every second
Fault	Continuously sounding
Conduction/RFI	GB7260.2/EN50091-2CLASS A
Environmental
Operating Environment	0-40℃
Relative Humidity	0-90%(non-condensing)
Physical
Net Weight(KG)	1.7		1.9		2		2.5
Dimension,D X W X H(mm)	260 X 224 X 80
*Specifications are subject to change without prior notice.

Home Power Inverter 2000va Description:

1. Modiified sine wave output

2. Electricity-Battery automatic conversion
3. Different choice of input voltage range
4. High-frequency digital technology, MCU control, more stable capablity
5. High efficiecy rate of DC - AC conversion, minimize energy loss
6. Tower design, can both stand up and lay down, can be placed flexibly
7. Equiped with super-charger, the maximum electricity can reach 8 A, and can charge for batteries with electricity over 100 AH
8. Intelligent charge control, can ensure the effective charging,but can not avoid excessive charging
9. Ultra-load protection

10. Restoration of electricity, automatically activated
11. Offline-charging functions (when the utility comes to normal, even if it is not turned on, the machine can still charge the battery)
12. Multi-functional LED indicator light and alarm device

13. Widely used in light, fan, or other small power home appliance

14. Small shape and light weight design,easily to carry and installation

Home Power Inverter 2000va Competitive Advantage:

Cheap price and easy to install,can solve the problem of power cutting off immediately,its small shape won’t need much space,and with no noises when it works.

The home inverter can be designed with your requirements such as color,logo,shape,display type and rear panel.

Modified Sine Wave Home Inverter 2000va
