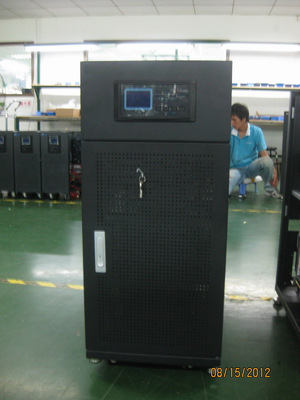

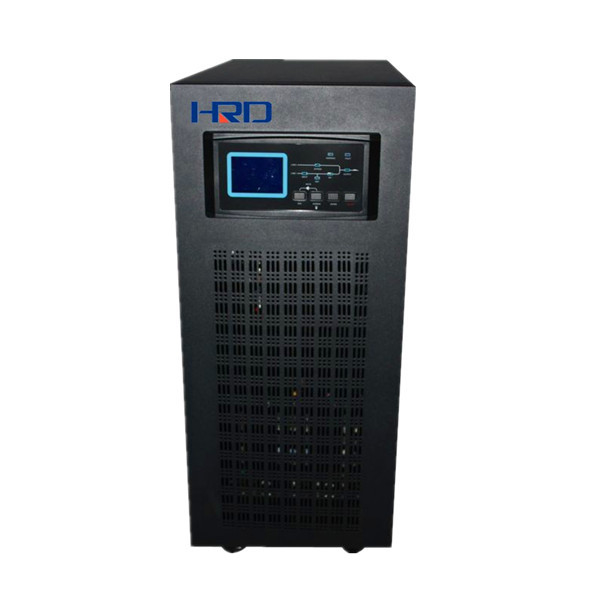

Power Safe(America) Online LF UPS-4-20KVA(2PHASE,3 WIRES)

Power Safe(America) Online LF UPS-4-20KVA(2PHASE,3 WIRES)
Power Safe(America) Online LF UPS-4-20KVA(2PHASE,3 WIRES) Power Safe(America) Online LF UPS-4-20KVA(2PHASE,3 WIRES) Power Safe(America) Online LF UPS-4-20KVA(2PHASE,3 WIRES) Power Safe(America) Online LF UPS-4-20KVA(2PHASE,3 WIRES)

Large Image :  Power Safe(America) Online LF UPS-4-20KVA(2PHASE,3 WIRES)

Product Details:
Place of Origin: Shenzhen China
Brand Name: HRD/OEM
Certification: CE,ISO9001
Model Number: PSA4000-20000
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: 500-4500usd

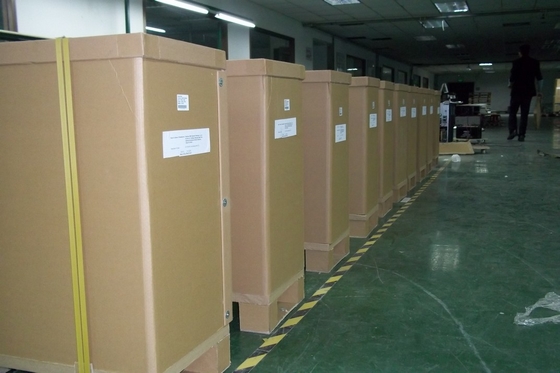

Packaging Details: 1PCS/1CTN,STANDARD FOR EXPORT
Delivery Time: 15-20days
Payment Terms: FOB SHENZHEN
Supply Ability: 100 Unit/Units per Day
Price term: FOBSHENZHEN
warranty: 18months after shipment,10years spare parts support
Detailed Product Description
High Light:

Online lowe frequency ups

,

low frequency online ups

Introduction:Power Safe (SA)series DSP low frequency UPS is the second generation digital on-line LF UPS .It has been specially designed by HRD UPS to provide perfect uninterrupted power for South America power grid of 110v/120v/127v. A lot of advanced functions and full protections make this UPS to one of the best choice for the 110v, 120vand 127v power grid.
Main Features:
Fully Digital control technology

Online double conversion with PFC

IGBT rectifier and IGBT Inverter & ISO output transformer

Online battery disconnection alarm

Auto-diagnose of UPS failure (easy maintenance)

Input power factor above 0.98

Wide input frequency range 40-70HZ

Flexible network monitoring and management

Large LCD display
Cold start and AC start function

EPO function(Emergency Power Off)

Perfect protections

Technical Specifications:




Model

PSA04H

PSA06H

PSA10H

PSA15H

PSA20H

Rating capacity

4KVA/3.2KW

6KVA/4.8KW

10KVA/8KW

15KVA/12KW

20KVA/16KW

input

Phase

 2LINES+G

P.F

>0.98

>0.95

Rating voltage

208/220V/240V

Voltage range

190V/208/220V+/-30%

Rating frequency

60Hz/ 50Hz(auto-sensing)

frequency range

40-70Hz

THDi

<5%

Soft start

0 to 100% , 3 to 5 seconds

Charge

Float charge

220VDC

Current

4 to10A (extendable)

Protection

Charge voltage, over current protection, short circuit protection

Battery

Model

Lead acid maintenance  free battery

Rating voltage

192VDC (external),

O/P

P.F.

0.8(lagging)

Phase

2phase 2LINES +N

Rating voltage

120V/208V, 127/240VAC

Rating frequency

50Hz/60Hz(auto sensing)

Frequency

<±0.1Hz in battery mode

Voltage

<±1.5%(static)

Crest factor

3:1

Wave distortion

Liner load<3%;Nolinear load<5%

dynamic load voltage instant distortion

Liner load<±5%(from 0-50%-100%)

Dynamic response recover time

<40ms

overload capacity

105%~125%10min;125%~150% 1min;

>150%10ms

transfer time

0mS(AC-Battery);<4ms(bypass-inverter)

System

display

LED+LCD

Efficiency

100% linear >89%

Operate temp

0~40℃

Humidity

0~90% (non-condensing)

Cooling

Intelligent fan cooling

Noise dB

<55 (≤1M)

<60(1M)

Physics

configuration

Tower, IP21

Weight (Kg)

60

100

128

150

218

Dimension          (W×H×D)mm

210×586×563

460×950×710




                                                                                   WWW.HRDUPS.COM
